ACV Boiler insulation panel A1003520
SKU A1003520
Marca ACV
Fotos
aún no hay foto
Características principales
| Material | refractory material |
|---|---|
| Dimensions | 342x195x12 mm |
59,37 EUR
53,97EUR
en stock · 1
IVA incl. 21% · 44,60 EUR excl. IVA · envío calculado al finalizar la compra
- Envíos a todo el mundo desde stock
- Pieza original del fabricante
- Envío en 24 h para artículos en stock
Descripción

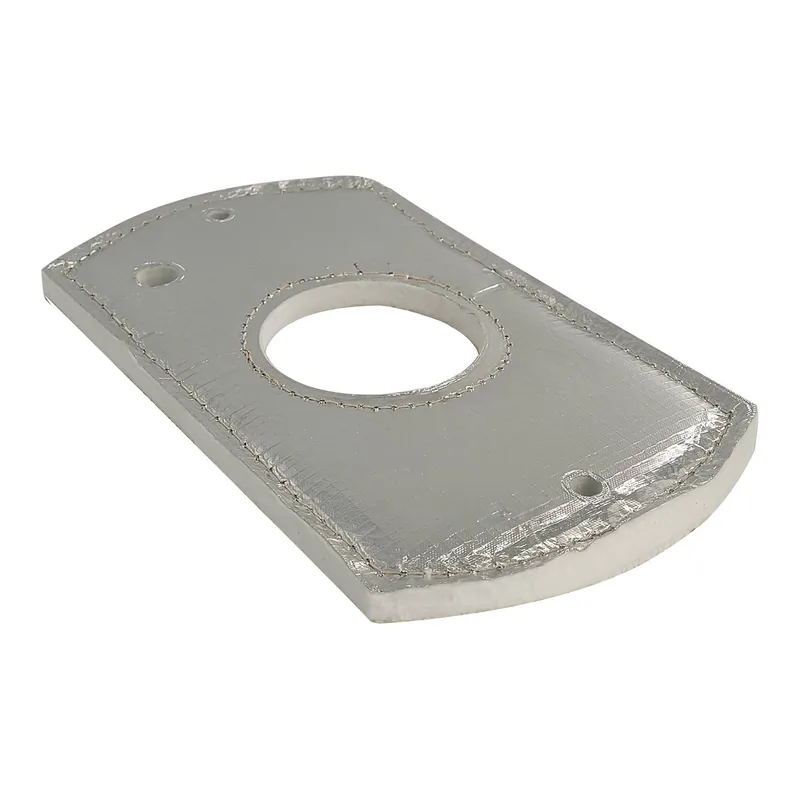

ACV Boiler insulation panel A1003520 is a refractory material panel measuring 342x195x12 mm. It is designed to fit ACV Smart 240, HeatMaster 71 TC, and Prestige Excellence 50 boilers. This insulation panel is used inside the boiler casing to reduce heat loss and protect external panels from excessive temperatures.
Información adicional
| Compatible models | Smart 240, Heatmaster 71 TC, Prestige Excellence 50 |
|---|---|
| Degradation characteristic | gradually loses its integrity due to repeated thermal cycling |
| Design features | geometry is specific to each enclosure design; generic piece will not seal correctly |
| Key advantages | precise size and fit, durability under high thermal load, effective heat protection |
| Name in English | ACV A1003520 2 in 1 insulation HM30-60-100 DELTA |
| Primary function | reduce heat loss to the surroundings and maintain a stable operating temperature inside the boiler |
| Selection criteria | boiler model and exact position of the panel within the assembly |
| Short name | ACV A1003520 2 in 1 insulation HM30-60-100 DELTA |
Elección y montaje
Insulation panels of this type are selected by matching the boiler model and the exact position within the assembly. The dimensions and shape must correspond to the original part to ensure a proper seal. Before ordering, cross-reference the manufacturer's part number with the boiler's exploded diagram to confirm the location and dimensions.
Señales de avería
Over time, insulation panels can degrade due to repeated thermal cycling, losing their integrity. This may create gaps that lead to localized overheating (hot spots), potentially damaging adjacent components. Check the panel for cracks, warping, or thinning, and replace if it no longer fits snugly.
Compatible con
ACV Smart 240, HeatMaster 71 TC, Prestige Excellence 50 Smart 240 HeatMaster 71 TCACV Smart 240ACV Heatmaster 71 TCACV Prestige Excellence 50
Todas las características
| Material | refractory material |
|---|---|
| Dimensions | 342x195x12 mm |
Referencias
| SKU | A1003520 |
|---|---|
| Additional article | 129.316.006 |
