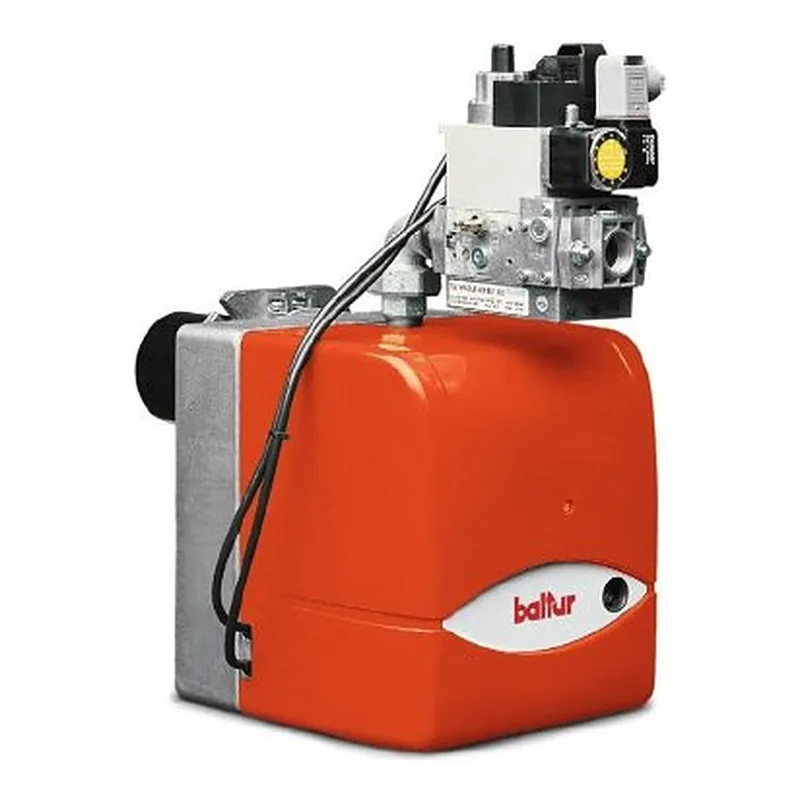

Baltur BTG 11 P — spare parts
- Fuel
- Gas
- Output
- 48.8–99 kW
- Parts
- 11
- Factory code
- 17070010
- Series
- BTG 11 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur BTG 11 P · 4
—on request
—on request
—on request
Burner pipes, flanges & connections for Baltur BTG 11 P · 2
—on request
—on request
Blast tubes & combustion heads for Baltur BTG 11 P · 1
—on request
Flues & air ducts for Baltur BTG 11 P · 1
—on request
Plugs and connectors for Baltur BTG 11 P · 1
—on request
Turbulators for Baltur BTG 11 P · 1
—on request
Wiring, cables & electrical components for Baltur BTG 11 P · 1
—on request
What is inside Baltur BTG 11 P
Components named in the manufacturer's documentation.
- Dungs LGW10A2
- Siemens LME 21.430
Specifications
FuelGas
Output48.8–99 kW
Firing stagesTwo-stage
Fan motor power100 W
Supply voltage220 V
Power consumption180 W
Net weight10.75 kg
Protection class (IP)IP40
Flame tube length150 mm
Flame tube diameter108 mm
Flame tube typestandard
Back pressure (combustion chamber)0–2 mbar
Gas consumption4.9–10 m³/h
Noise level64 dB
Overall dimensions47.5 x 24.6 x 28.9 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur BTG 11 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- BTG 11
13 parts · 17060010 · 17060010-19990466 +2 - BTG 11 L300
13 parts · 17060020 - BTG 11 P
11 parts · 17070010 - BTG 11P L300
11 parts · 17070020
Questions about Baltur BTG 11 P parts
Which burner components fit Baltur BTG 11 P?
These fit Baltur BTG 11 P: Baltur Air Damper Shaft 0013010018; Baltur Adjustment Screw 0013010122; Baltur Equalizing Disc 0013020039; Elco Suction Hole Ring 13011927. ↑
Which burner pipes, flanges & connections fit Baltur BTG 11 P?
These fit Baltur BTG 11 P: Baltur Burner pipe fitting 58029; Baltur Burner Flange 8013030004. ↑
Which blast tubes & combustion heads fit Baltur BTG 11 P?
These fit Baltur BTG 11 P: Baltur Blast tube head 0013020037. ↑
Which flues & air ducts fit Baltur BTG 11 P?
These fit Baltur BTG 11 P: Baltur Fire Tube 0013020008. ↑
Which plugs and connectors fit Baltur BTG 11 P?
These fit Baltur BTG 11 P: Wieland Plug 4P 5130043. ↑
Which turbulators fit Baltur BTG 11 P?
These fit Baltur BTG 11 P: Elco Turbulator 13013328. ↑
