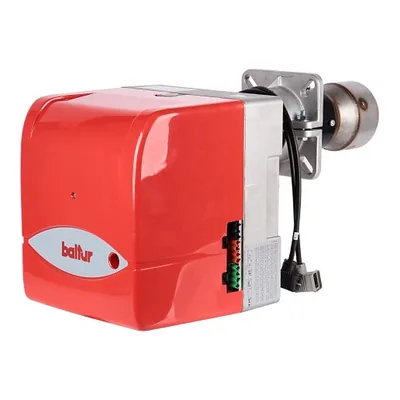

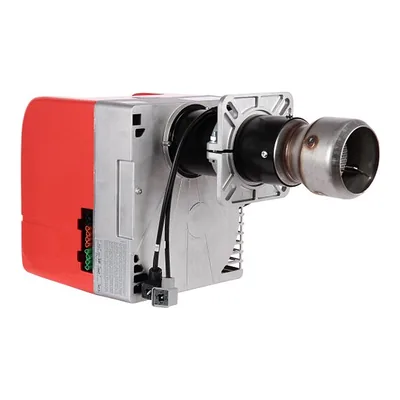

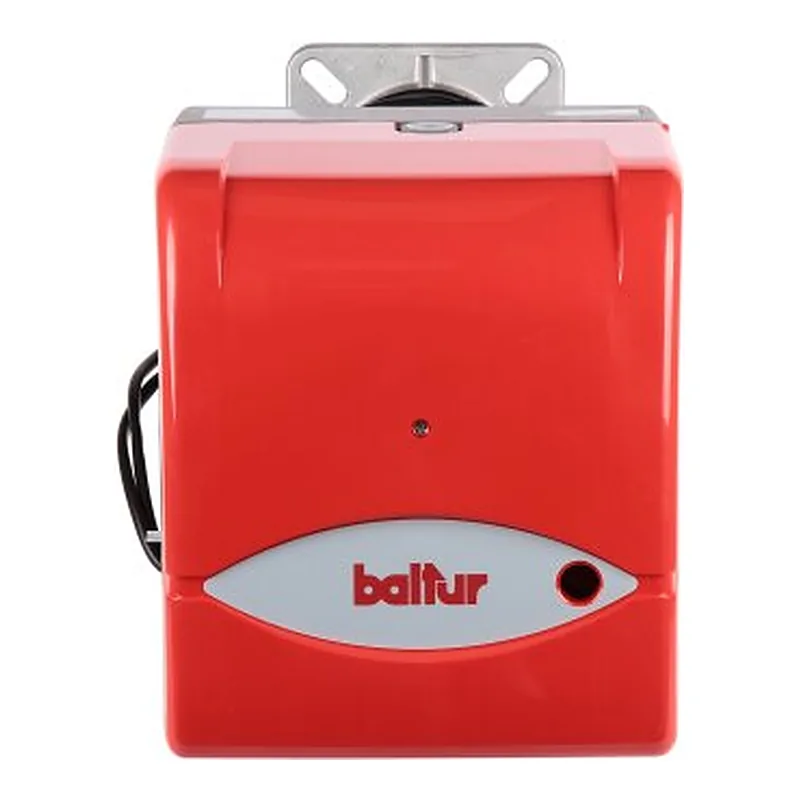

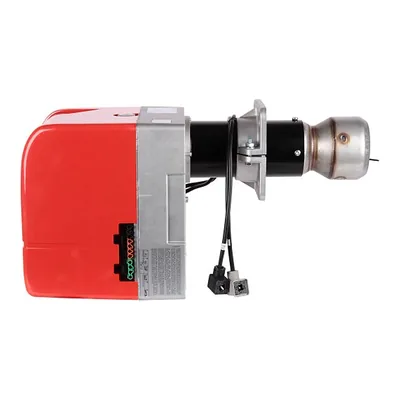

Baltur BTG 15 P — spare parts
- Fuel
- Gas
- Output
- 50–160 kW
- Parts
- 12
- Versions
- 2
- Series
- BTG 15 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur BTG 15 P · 4
—on request
—on request
—on request
Plugs and connectors for Baltur BTG 15 P · 4
—on request
—on request
—on request
—on request
Actuators for Baltur BTG 15 P · 1
—on request
Burner pipes, flanges & connections for Baltur BTG 15 P · 1
—on request
Cables for Baltur BTG 15 P · 1
—on request
Wiring, cables & electrical components for Baltur BTG 15 P · 1
—on request
What is inside Baltur BTG 15 P
Components named in the manufacturer's documentation.
- Berger STA 13
- Kromschroeder DL 4-E
- LME 21.430
- Siemens LME 21.430
Specifications
FuelGas
Output50–160 kW
Gas connectionRp 3/4"
Firing stagesTwo-stage
Supply voltage220 V
Power consumption360 W
Net weight17 kg
Protection class (IP)IP40
Flame tube length280 mm
Flame tube diameter126 mm
Flame tube typestandard
Back pressure (combustion chamber)0–4 mbar
Gas consumption5–16.1 m³/h
Gas train pressure3.2–20.5 mbar
Noise level68 dB
Overall dimensions68 x 30.3 x 34.5 cm
Delivery scopewith combustion head, with gas train
Versions
17090010
17090010-19990016
Other versions of this seriesBaltur BTG 15 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- BTG 15
11 parts · 17080010 · 17080010-19990002 +2 - BTG 15 ME
12 parts · 17130020 - BTG 15 P
12 parts · 17090010 · 17090010-19990016 - BTG 15P L500
12 parts · FS21202350
Questions about Baltur BTG 15 P parts
Which burner components fit Baltur BTG 15 P?
These fit Baltur BTG 15 P: Baltur Protective Cap 0005140115; Baltur Air damper 0023020027; Baltur Adjustment Screw 0023030006; Elco Star-shaped gas head 13022924. ↑
Which plugs and connectors fit Baltur BTG 15 P?
These fit Baltur BTG 15 P: Baltur Connector 0005130051; Hirschmann Connector B-12 23521; Hirschmann Connector A-14 23522; Wieland Plug 4P 5130043. ↑
Which actuators fit Baltur BTG 15 P?
These fit Baltur BTG 15 P: Ecoflam Actuator Cross Connection 65310653. ↑
Which burner pipes, flanges & connections fit Baltur BTG 15 P?
These fit Baltur BTG 15 P: Baltur Burner pipe fitting 58029. ↑
Which cables fit Baltur BTG 15 P?
These fit Baltur BTG 15 P: Baltur Transformer Power Cable 0005130089. ↑
Which wiring, cables & electrical components fit Baltur BTG 15 P?
These fit Baltur BTG 15 P: Baltur Interference Filter 0005060037. ↑
