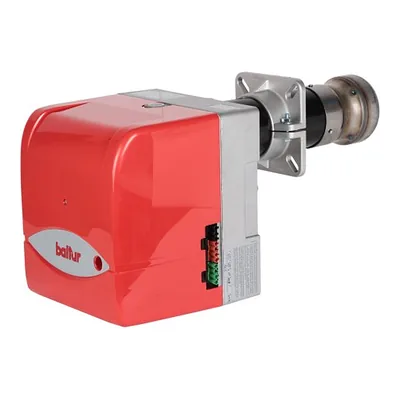

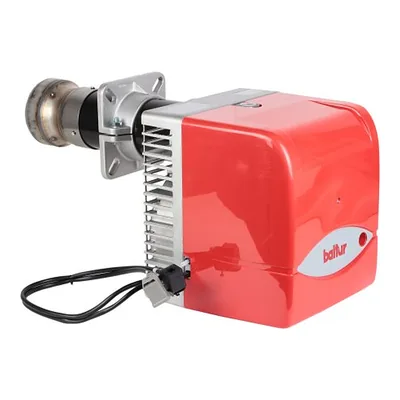

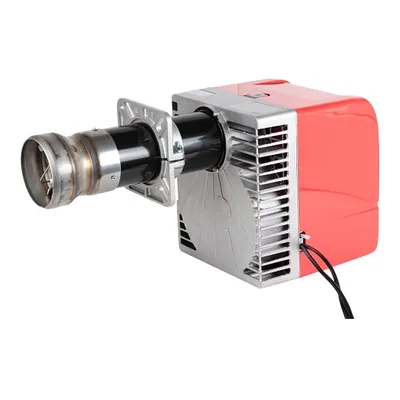

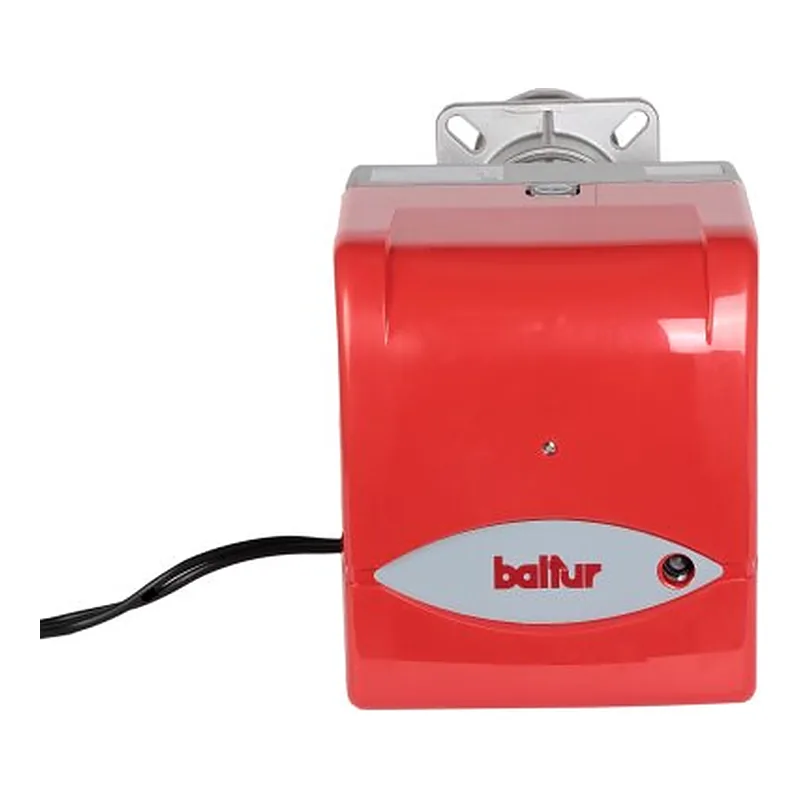

Baltur BTG 28 P — spare parts
- Fuel
- Gas
- Output
- 80–280 kW
- Parts
- 12
- Versions
- 2
- Series
- BTG 28 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur BTG 28 P · 5
—on request
—on request
—on request
—on request
Plugs and connectors for Baltur BTG 28 P · 4
—on request
—on request
—on request
—on request
Actuators for Baltur BTG 28 P · 1
—on request
Burner pipes, flanges & connections for Baltur BTG 28 P · 1
—on request
Wiring, cables & electrical components for Baltur BTG 28 P · 1
—on request
What is inside Baltur BTG 28 P
Components named in the manufacturer's documentation.
- FIDA 26/40
- PRESSOSTATO KROMSK. DL 4-E
- SPARKGAS11
- UGELLO MISCELATORE
- BERGER STA13B0.36/82N
- Kromschroeder DL 4-E
- Siemens LME 21.430
Specifications
FuelGas
Output80–280 kW
Gas connectionRp 3/4"
Firing stagesTwo-stage
Supply voltage220 V
Power consumption360 W
Net weight18 kg
Protection class (IP)IP40
Flame tube length300 mm
Flame tube diameter135 mm
Flame tube typestandard
Back pressure (combustion chamber)0–6 mbar
Gas consumption8–28.2 m³/h
Gas train pressure6.5–38 mbar
Noise level68 dB
Overall dimensions69.5 x 30.3 x 34.5 cm
Delivery scopewith combustion head, with gas train
Versions
17150010
17150010-19990016
Other versions of this seriesBaltur BTG 28 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- BTG 28
12 parts · 17140010 · 17140010-19990002 +3 - BTG 28 ME
12 parts · 17160020 - BTG 28 MM405 A20C-R3/4
1 part · 17140010-19990002 - BTG 28 MM407 A20C-R3/4-B
1 part · 17140010-19990005 - BTG 28 MM410 A20C-R5/4-B
1 part · 17140010-19990008 - BTG 28 MM412 A20C-R5/4-B
1 part · 17140010-19990166 - BTG 28 P
12 parts · 17150010 · 17150010-19990016 - BTG 28 P L500
12 parts · FS21501010
Questions about Baltur BTG 28 P parts
Which burner components fit Baltur BTG 28 P?
These fit Baltur BTG 28 P: Baltur Fixing Plate 0017030027; Baltur Air damper 0023020011; Baltur Adjustment Screw 0023030006; Baltur Fixing plate 61299; Elco Star-shaped gas head 13022924. ↑
Which plugs and connectors fit Baltur BTG 28 P?
These fit Baltur BTG 28 P: Baltur Connector 0005130051; Hirschmann Connector B-12 23521; Hirschmann Connector A-14 23522; Wieland Plug 4P 5130043. ↑
Which actuators fit Baltur BTG 28 P?
These fit Baltur BTG 28 P: Ecoflam Actuator Cross Connection 65310653. ↑
Which burner pipes, flanges & connections fit Baltur BTG 28 P?
These fit Baltur BTG 28 P: Baltur Burner pipe fitting 58029. ↑
Which wiring, cables & electrical components fit Baltur BTG 28 P?
These fit Baltur BTG 28 P: Baltur Interference Filter 0005060037. ↑
