—on request

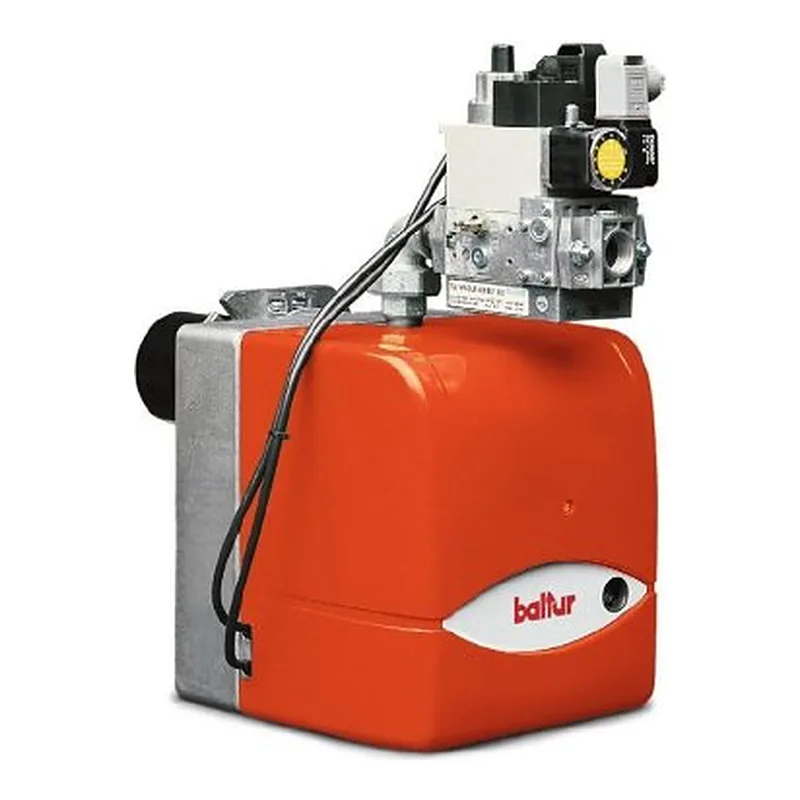

Baltur BTG 6 P L300 — spare parts
- Fuel
- Gas
- Output
- 30.6–56.3 kW
- Parts
- 10
- Factory code
- 17050020
- Series
- BTG 6 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur BTG 6 P L300 · 3
—on request
—on request
Burner pipes, flanges & connections for Baltur BTG 6 P L300 · 3
—on request
—on request
—on request
Plugs and connectors for Baltur BTG 6 P L300 · 2
—on request
—on request
Cables for Baltur BTG 6 P L300 · 1
—on request
Wiring, cables & electrical components for Baltur BTG 6 P L300 · 1
—on request
What is inside Baltur BTG 6 P L300
Components named in the manufacturer's documentation.
- Мотор вентилятора
- Connectron LKS 120
- LME 21.430
Specifications
FuelGas
Output30.6–56.3 kW
Firing stagesTwo-stage
Supply voltage220 V
Power consumption180 W
Net weight10.75 kg
Protection class (IP)IP40
Flame tube length300 mm
Flame tube diameter90 mm
Flame tube typeextended
Back pressure (combustion chamber)0–1.4 mbar
Gas consumption1.6–4.2 m³/h
Noise level64 dB
Overall dimensions61 x 24.6 x 28.9 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur BTG 6 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- BTG 6
13 parts · 17040010 · 17040010-19990002 +4 - BTG 6 L300
11 parts · 17040020 - BTG 6 P
11 parts · 17050010 - BTG 6 P L300
10 parts · 17050020
Questions about Baltur BTG 6 P L300 parts
Which burner components fit Baltur BTG 6 P L300?
These fit Baltur BTG 6 P L300: Baltur Air Damper Shaft 0013010018; Baltur Equalizing Disc 0013010068; Baltur Adjustment Screw 0013010122. ↑
Which burner pipes, flanges & connections fit Baltur BTG 6 P L300?
These fit Baltur BTG 6 P L300: Baltur Flange Gasket 50413; Baltur Burner pipe fitting 58029; Baltur Burner Flange 8013030004. ↑
Which plugs and connectors fit Baltur BTG 6 P L300?
These fit Baltur BTG 6 P L300: Baltur Plug 4P 0005130043; Baltur Connector 0005130051. ↑
Which cables fit Baltur BTG 6 P L300?
These fit Baltur BTG 6 P L300: Baltur Transformer Power Cable 0005130111. ↑
Which wiring, cables & electrical components fit Baltur BTG 6 P L300?
These fit Baltur BTG 6 P L300: Baltur Capacitor 95068. ↑
