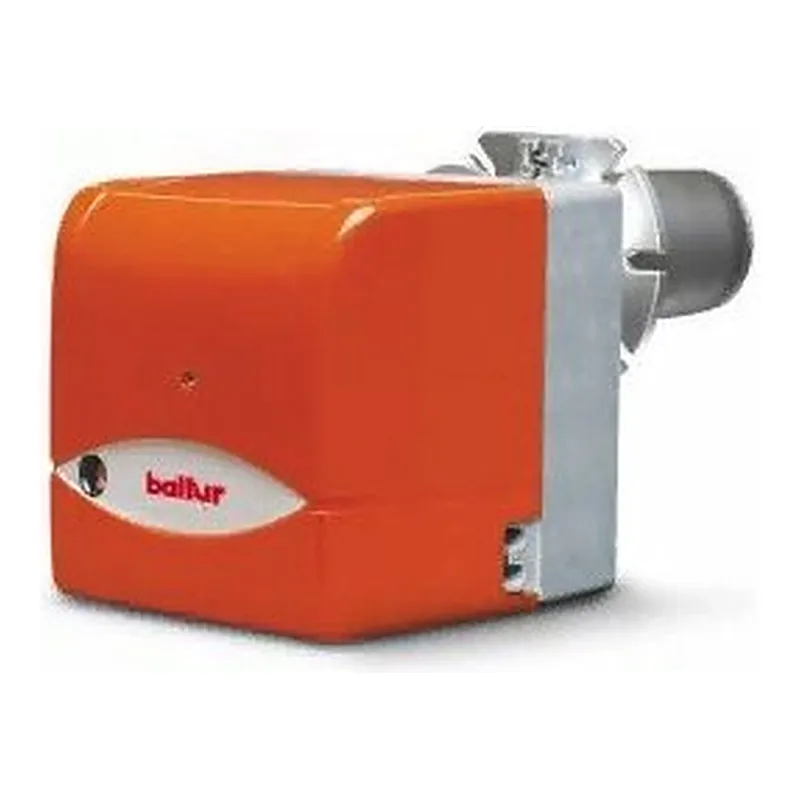

Baltur BTL 3 — spare parts
- Fuel
- Oil
- Output
- 16.6–42.7 kW
- Parts
- 11
- Versions
- 3
- Series
- BTL 3 · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Control devices for Baltur BTL 3 · 2
—on request
Flame sensors for Baltur BTL 3 · 2
—on request
51.36 EURexcl. VAT · import VAT and duties on delivery
Boiler filters, gaskets & seals for Baltur BTL 3 · 1
—on request
Burner components for Baltur BTL 3 · 1
—on request
Burner pipes, flanges & connections for Baltur BTL 3 · 1
—on request
Flues & air ducts for Baltur BTL 3 · 1
—on request
Motors for Baltur BTL 3 · 1
—on request
Oil pumps for Baltur BTL 3 · 1
168.84 EURexcl. VAT · import VAT and duties on delivery
Wiring, cables & electrical components for Baltur BTL 3 · 1
—on request
What is inside Baltur BTL 3
Components named in the manufacturer's documentation.
- DANFOSS BFP21L3 in stock
- QRB1B
- LMO 14.111
Specifications
FuelOil
Output16.6–42.7 kW
Firing stagessingle-stage
Fan motor power90 W
Supply voltage220 V
Frequency60 Hz
Power consumption140 W
Length250 mm
Width250 mm
Net weight9 kg
Protection class (IP)IP40
CertificationE.M.C DIRECTIVE 2014/30/UE, L.V. DIRECTIVE 2014/35/EU, MACHINERY DIRECTIVE 2006/42/CE, COMMISSION REGULATION Er P 2013/811/UE, EN267
Net calorific value of light oil in kcal10200 kcal/kg
Adjusting the combustion headyes
Air damper on shutdownfully closing
Flame detectionphototransistor
Light oil preheatervariable capacity
Sound-proof plastic protective coveryes
Flame tube length90 mm
Flame tube diameter80 mm
Flame tube typestandard
Back pressure (combustion chamber)0–1 mbar
Noise level62 dB
Overall dimensions33 x 25 x 24.2 cm
Delivery scopewith combustion head
Versions
BTL 3 · standard version35450010
BTL 3 H35450011
BTL 3 L20035450020
Other versions of this seriesBaltur BTL 3 · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- BTL 3
11 parts · 35450010 · 35450011 +1 - BTL 3 H
12 parts · 35450011 - BTL 3 L200
2 parts · 35450020
Questions about Baltur BTL 3 parts
Which control devices fit Baltur BTL 3?
These fit Baltur BTL 3: Baltur Burner Control Unit 31184; Viessmann Furnace Automation 7818898. ↑
Which flame sensors fit Baltur BTL 3?
These fit Baltur BTL 3: Hansa Flame sensor 3069; Siemens Flame sensor QRB1B-A033B40B. ↑
Which boiler filters, gaskets & seals fit Baltur BTL 3?
These fit Baltur BTL 3: Suntec Seal 991552. ↑
Which burner components fit Baltur BTL 3?
These fit Baltur BTL 3: Giersch 2-stage distribution block 47-90-27372. ↑
Which burner pipes, flanges & connections fit Baltur BTL 3?
These fit Baltur BTL 3: Baltur Copper Fuel Tube 0016010062-BT. ↑
Which flues & air ducts fit Baltur BTL 3?
These fit Baltur BTL 3: Baltur Fire Tube 0013030150. ↑
