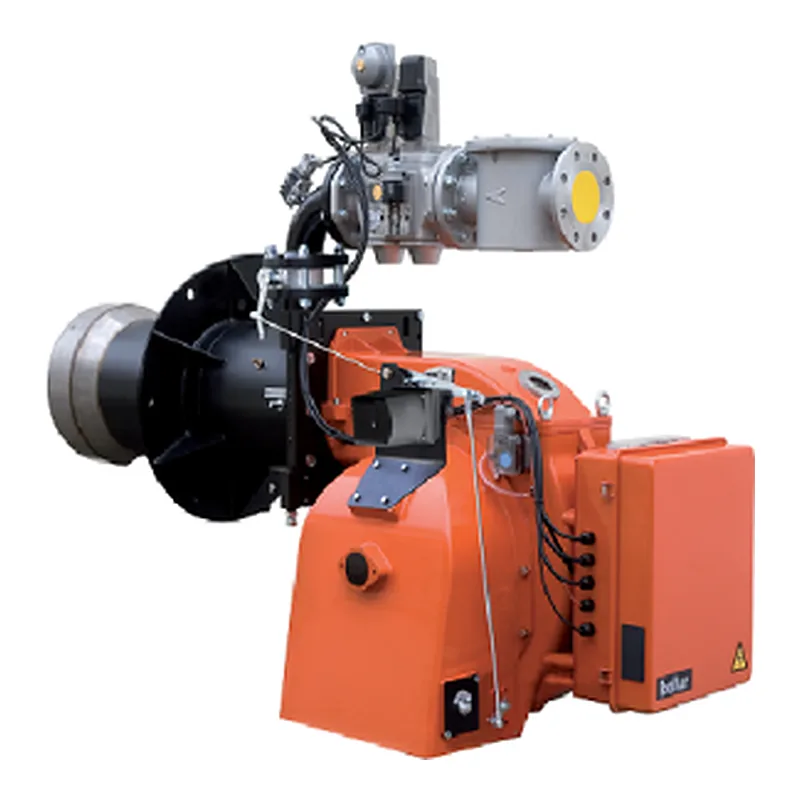

Baltur GI 700 MC — spare parts
- Fuel
- Gas
- Output
- 1000–7000 kW
- Parts
- 12
- Factory code
- 66440030
- Series
- GI 700 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur GI 700 MC · 6
—on request
—on request
—on request
—on request
—on request
Boiler filters, gaskets & seals for Baltur GI 700 MC · 3
—on request
—on request
—on request
Burner pipes, flanges & connections for Baltur GI 700 MC · 1
—on request
Gas nozzles & injectors for Baltur GI 700 MC · 1
—on request
Ionization & ignition electrodes for Baltur GI 700 MC · 1
—on request
What is inside Baltur GI 700 MC
Components named in the manufacturer's documentation.
- Siemens SQM40
Specifications
FuelGas
Output1000–7000 kW
Fan motor power18500 W
Supply voltage380 V
Power consumption19500 W
Net weight283 kg
Protection class (IP)IP40
Flame tube length500 mm
Flame tube diameter390 mm
Flame tube typestandard
Back pressure (combustion chamber)0–23 mbar
Gas consumption101–704 m³/h
Noise level92.3 dB
Overall dimensions183 x 108 x 90 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur GI 700 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- GI 700 MC
12 parts · 66440030 - GI 700 ME
12 parts · 66430020
Questions about Baltur GI 700 MC parts
Which burner components fit Baltur GI 700 MC?
These fit Baltur GI 700 MC: Baltur Air damper 0012010132; Baltur Air damper 0012010133; Baltur Articulated Connection 0012010155; Baltur Articulated Connection 0012120160; Baltur Air Damper Shaft Holder 54056; Baltur Fixing Plate 57132-BT. ↑
Which boiler filters, gaskets & seals fit Baltur GI 700 MC?
These fit Baltur GI 700 MC: Baltur Ring Gasket 0005180087; Baltur Gasket 23124; Baltur Ring Gasket 23299. ↑
Which burner pipes, flanges & connections fit Baltur GI 700 MC?
These fit Baltur GI 700 MC: Baltur Nipple G1/4" 0005150098. ↑
Which gas nozzles & injectors fit Baltur GI 700 MC?
These fit Baltur GI 700 MC: Baltur Gas nozzle 0012140024. ↑
Which ionization & ignition electrodes fit Baltur GI 700 MC?
These fit Baltur GI 700 MC: Baltur Ionization Electrode 0012140025. ↑
