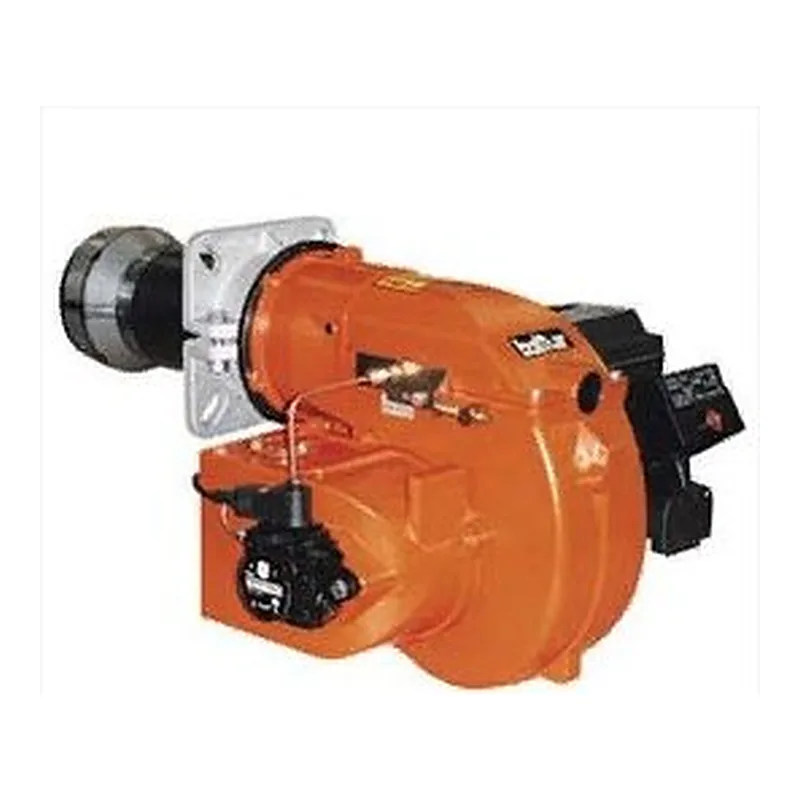

Baltur SPARK 35 W — spare parts
- Fuel
- Oil
- Output
- 178–391 kW
- Parts
- 1
- Factory code
- 3070010
- Series
- SPARK 35 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Impellers for Baltur SPARK 35 W · 1
Specifications
FuelOil
Output178–391 kW
Firing stagesSingle-stage
Fan motor power370 W
Supply voltage220 V
Power consumption650 W
Net weight30 kg
Protection class (IP)IP40
Flame tube length350 mm
Flame tube diameter150 mm
Flame tube typestandard
Back pressure (combustion chamber)0–4 mbar
Overall dimensions78 x 45 x 37.3 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur SPARK 35 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- SPARK 35
11 parts · 3070010 · 3071010 +3 - SPARK 35 DSG
10 parts · 3076010 - SPARK 35 DSG W
10 parts · 3075010 - SPARK 35 W
1 part · 3070010
Questions about Baltur SPARK 35 W parts
Which impellers fit Baltur SPARK 35 W?
These fit Baltur SPARK 35 W: Baltur Fan Impeller 49351. ↑
