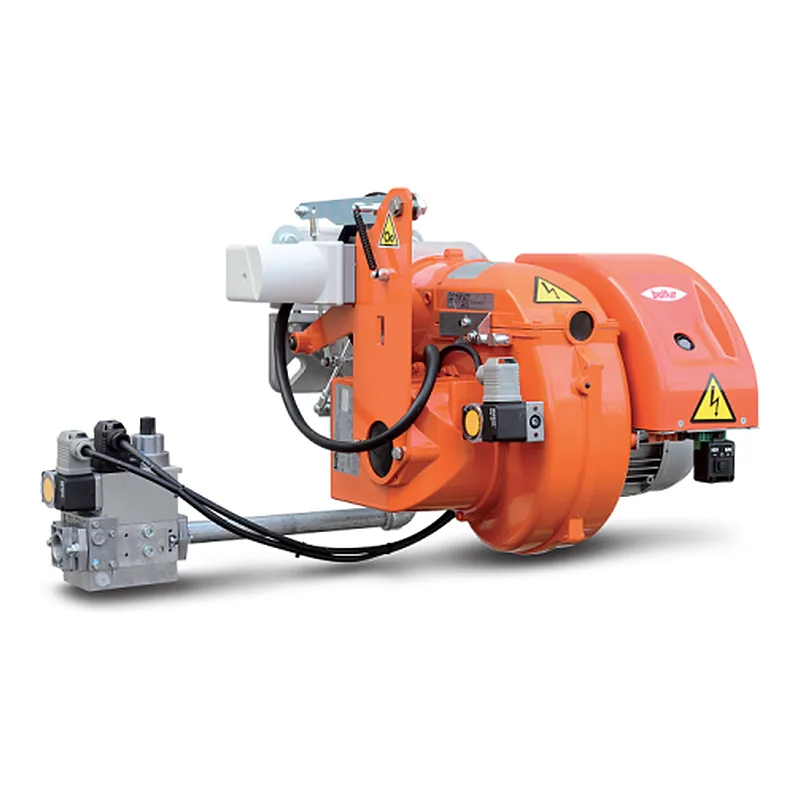

Baltur TBG 210 MC L600 — gas burner, photo 1

Baltur TBG 210 MC L600 — spare parts

Fuel
Gas
Output
400–2100 kW
Parts
12
Factory code
FS21801660

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Baltur TBG 210 MC L600 · 5

Boiler filters, gaskets & seals for Baltur TBG 210 MC L600 · 2

Burner pipes, flanges & connections for Baltur TBG 210 MC L600 · 1

Flues & air ducts for Baltur TBG 210 MC L600 · 1

Gas valves for Baltur TBG 210 MC L600 · 1

Impellers for Baltur TBG 210 MC L600 · 1

Motors for Baltur TBG 210 MC L600 · 1

What is inside Baltur TBG 210 MC L600

Components named in the manufacturer's documentation.

  • LME 22.233
  • Siemens SQN72

Specifications

FuelGas
Output400–2100 kW
Fan motor power3000 W
Supply voltage380 V
Power consumption3700 W
Net weight95 kg
Protection class (IP)IP54
Flame tube length600 mm
Flame tube diameter250 mm
Flame tube typeextended
Back pressure (combustion chamber)0–16 mbar
Gas consumption42.3–222.2 m³/h
Noise level85 dB
Overall dimensions140 x 69 x 55 cm
Delivery scopewith combustion head

Other versions of this seriesBaltur TBG 210 · 5

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Baltur TBG 210 MC L600 parts

Which burner components fit Baltur TBG 210 MC L600?

These fit Baltur TBG 210 MC L600: Baltur Head Regulator 0024010008; Baltur Air damper 0024010012; Baltur Articulated Connection 0024010020; Baltur Air Damper Shaft 0024020025; Baltur Air Damper Shaft Holder 54056. ↑

Which boiler filters, gaskets & seals fit Baltur TBG 210 MC L600?

These fit Baltur TBG 210 MC L600: Baltur Gasket 0005180077; Baltur Gasket 0030010574. ↑

Which burner pipes, flanges & connections fit Baltur TBG 210 MC L600?

These fit Baltur TBG 210 MC L600: Baltur Connecting Elbow 0024030004. ↑

Which flues & air ducts fit Baltur TBG 210 MC L600?

These fit Baltur TBG 210 MC L600: Baltur Fire Tube 0024030029. ↑

Which gas valves fit Baltur TBG 210 MC L600?

These fit Baltur TBG 210 MC L600: Baltur Gas Throttle Valve Gasket 0024030017. ↑

Which impellers fit Baltur TBG 210 MC L600?

These fit Baltur TBG 210 MC L600: Baltur Fan Impeller 0024050004. ↑
