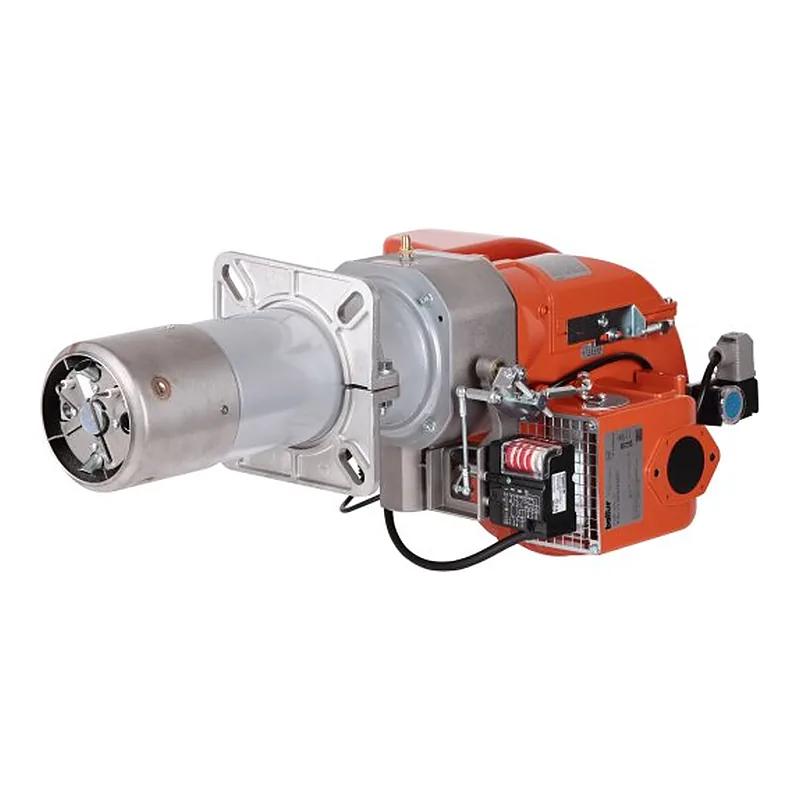

Baltur TBG 35 P MM407A20C-R3/4-T — spare parts
- Fuel
- Gas
- Output
- 80–410 kW
- Parts
- 1
- Factory code
- 17330010-19990545
- Series
- TBG 35 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 35 P MM407A20C-R3/4-T · 1
Specifications
FuelGas
Output80–410 kW
Gas connectionRp 3/4"
Firing stagesTwo-stage
Fan motor power370 W
Supply voltage220 V
Power consumption560 W
Net weight40 kg
Protection class (IP)IP40
Flame tube length150 mm
Flame tube diameter137 mm
Flame tube typestandard
Back pressure (combustion chamber)0–8 mbar
Gas consumption8.05–41.23 m³/h
Gas train pressure4–44 mbar
Noise level76 dB
Overall dimensions101 x 44 x 37.8 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesBaltur TBG 35 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 35
12 parts · 17320010 - TBG 35 MC
12 parts · 17360010 - TBG 35 ME
12 parts · 17350010 - TBG 35 MM407A20C-R3/4-T
1 part · 17320010-19990545 - TBG 35 P
12 parts · 17330010 - TBG 35 P L500
12 parts · FS21300240 - TBG 35 P MM407A20C-R3/4-T
1 part · 17330010-19990545 - TBG 35 PN
12 parts · 17340010
Questions about Baltur TBG 35 P MM407A20C-R3/4-T parts
Which burner components fit Baltur TBG 35 P MM407A20C-R3/4-T?
These fit Baltur TBG 35 P MM407A20C-R3/4-T: Baltur Axial Compensator 97039999. ↑
