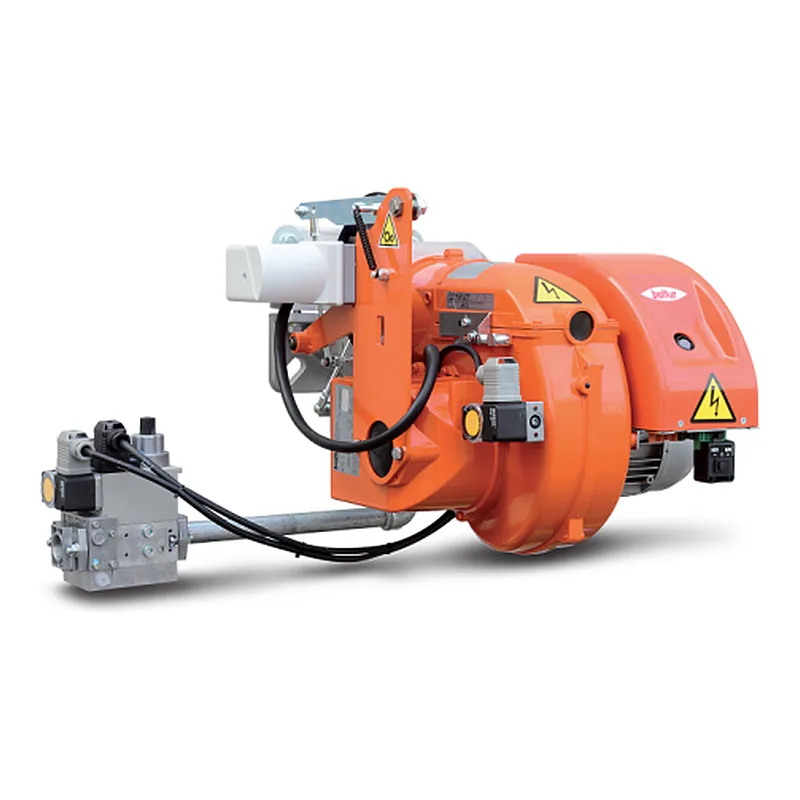

Baltur TBG 360 MC L600 — spare parts
- Fuel
- Gas
- Output
- 500–3600 kW
- Parts
- 12
- Factory code
- FS22001120
- Series
- TBG 360 · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 360 MC L600 · 4
—on request
—on request
—on request
Boiler filters, gaskets & seals for Baltur TBG 360 MC L600 · 2
—on request
—on request
Burner pipes, flanges & connections for Baltur TBG 360 MC L600 · 1
—on request
Cables for Baltur TBG 360 MC L600 · 1
—on request
Flues & air ducts for Baltur TBG 360 MC L600 · 1
—on request
Gas valves for Baltur TBG 360 MC L600 · 1
—on request
Oil filters, coils, tubes & hoses for Baltur TBG 360 MC L600 · 1
—on request
Sensors and switches for Baltur TBG 360 MC L600 · 1
—on request
Specifications
FuelGas
Output500–3600 kW
Fan motor power7500 W
Supply voltage380 V
Power consumption8000 W
Net weight101 kg
Protection class (IP)IP54
Flame tube length600 mm
Flame tube diameter270 mm
Back pressure (combustion chamber)0–24 mbar
Gas consumption50–360 m³/h
Noise level87.8 dB
Overall dimensions140 x 82 x 61 cm
Delivery scopewith combustion head
Other versions of this seriesBaltur TBG 360 · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 360 MC
12 parts · 17790010 - TBG 360 MC L600
12 parts · FS22001120 - TBG 360 ME
12 parts · 17800010
Questions about Baltur TBG 360 MC L600 parts
Which burner components fit Baltur TBG 360 MC L600?
These fit Baltur TBG 360 MC L600: Baltur Articulated Connection 0012010155; Baltur Head Regulator 0024010008; Baltur Articulated Connection 0024010020; Baltur Air Damper Shaft Holder 54056. ↑
Which boiler filters, gaskets & seals fit Baltur TBG 360 MC L600?
These fit Baltur TBG 360 MC L600: Baltur Gasket 0005180077; Baltur Gasket 0030010574. ↑
Which burner pipes, flanges & connections fit Baltur TBG 360 MC L600?
These fit Baltur TBG 360 MC L600: Baltur Connecting Elbow 0024030004. ↑
Which cables fit Baltur TBG 360 MC L600?
These fit Baltur TBG 360 MC L600: Baltur Cable Entry 0005140469. ↑
Which flues & air ducts fit Baltur TBG 360 MC L600?
These fit Baltur TBG 360 MC L600: Baltur Fire Tube 0024030029. ↑
Which gas valves fit Baltur TBG 360 MC L600?
These fit Baltur TBG 360 MC L600: Baltur Gas Throttle Valve Gasket 0024030017. ↑
