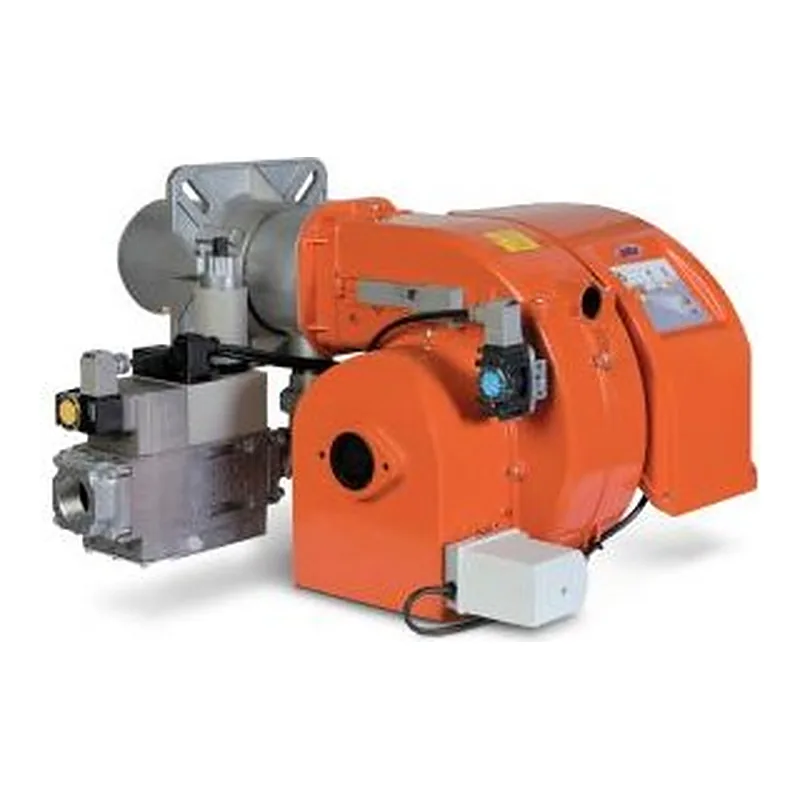

Baltur TBG 45 P-V — spare parts
- Fuel
- Gas
- Output
- 100–450 kW
- Parts
- 12
- Factory code
- 17210020
- Series
- TBG 45 · 7
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 45 P-V · 3
—on request
—on request
Cables for Baltur TBG 45 P-V · 2
—on request
—on request
Actuators for Baltur TBG 45 P-V · 1
—on request
Burner pipes, flanges & connections for Baltur TBG 45 P-V · 1
—on request
Control devices for Baltur TBG 45 P-V · 1
—on request
Impellers for Baltur TBG 45 P-V · 1
—on request
Plugs and connectors for Baltur TBG 45 P-V · 1
—on request
Sensors and switches for Baltur TBG 45 P-V · 1
—on request
Wiring, cables & electrical components for Baltur TBG 45 P-V · 1
—on request
Specifications
FuelGas
Output100–450 kW
Firing stagesTwo-stage
Supply voltage220 V
Flame tube length300 mm
Flame tube diameter137 mm
Back pressure (combustion chamber)0–8 mbar
Gas consumption10.1–45.3 m³/h
Delivery scopewith combustion head
Other versions of this seriesBaltur TBG 45 · 7
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 45
12 parts · 17200010 - TBG 45 MC
12 parts · 17240010 - TBG 45 ME
12 parts · 17230020 - TBG 45 ME V
1 part · 17230025 - TBG 45 P
12 parts · 17210010 - TBG 45 P L500
12 parts · FS21803220 - TBG 45 P-V
12 parts · 17210020
Questions about Baltur TBG 45 P-V parts
Which burner components fit Baltur TBG 45 P-V?
These fit Baltur TBG 45 P-V: Baltur Air damper 0025010030; Baltur Equalizing Disc 0025030025; Baltur Fixing Plate 0025030037. ↑
Which cables fit Baltur TBG 45 P-V?
These fit Baltur TBG 45 P-V: Baltur Cable Entry 0005140469; Baltur Transformer Power Cable 0005140604. ↑
Which actuators fit Baltur TBG 45 P-V?
These fit Baltur TBG 45 P-V: Baltur Actuator S55454-D335-A100. ↑
Which burner pipes, flanges & connections fit Baltur TBG 45 P-V?
These fit Baltur TBG 45 P-V: Baltur Nipple 0020040004. ↑
Which control devices fit Baltur TBG 45 P-V?
These fit Baltur TBG 45 P-V: Baltur Burner Control Unit 0005030201. ↑
Which impellers fit Baltur TBG 45 P-V?
These fit Baltur TBG 45 P-V: Baltur Fan Impeller 0025010023. ↑
