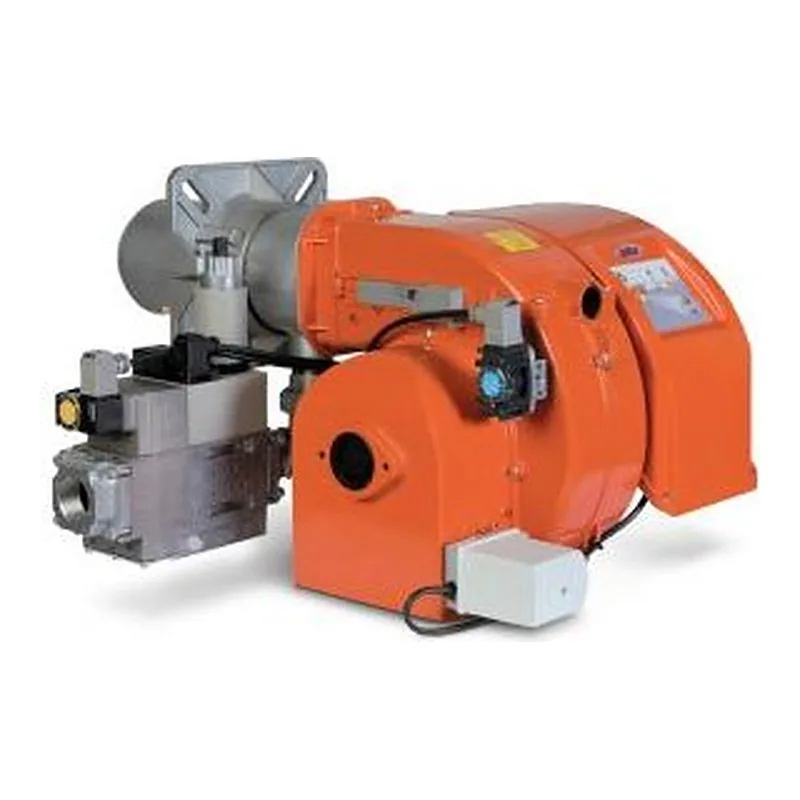

Baltur TBG 60 P-V — spare parts
- Fuel
- Gas
- Output
- 120–600 kW
- Parts
- 12
- Factory code
- 17280020
- Series
- TBG 60 · 8
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 60 P-V · 3
—on request
—on request
Burner pipes, flanges & connections for Baltur TBG 60 P-V · 2
—on request
—on request
Cables for Baltur TBG 60 P-V · 2
—on request
—on request
Actuators for Baltur TBG 60 P-V · 1
—on request
Control devices for Baltur TBG 60 P-V · 1
—on request
Plugs and connectors for Baltur TBG 60 P-V · 1
—on request
Sensors and switches for Baltur TBG 60 P-V · 1
—on request
Wiring, cables & electrical components for Baltur TBG 60 P-V · 1
—on request
What is inside Baltur TBG 60 P-V
Components named in the manufacturer's documentation.
- LME 22.331
- Siemens SQN72
Specifications
FuelGas
Output120–600 kW
Firing stagesTwo-stage
Supply voltage220 V
Flame tube length300 mm
Flame tube diameter156 mm
Flame tube typestandard
Back pressure (combustion chamber)0–9 mbar
Gas consumption12.1–60.3 m³/h
Delivery scopewith combustion head, without gas train
Other versions of this seriesBaltur TBG 60 · 8
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 60
12 parts · 17270010 - TBG 60 MC
12 parts · 17310010 - TBG 60 MC L500
12 parts · FS21803170 - TBG 60 ME
12 parts · 17300020 - TBG 60 P
12 parts · 17280010 - TBG 60 P L500
12 parts · FS22001310 - TBG 60 P-V
12 parts · 17280020 - TBG 60 PN
12 parts · 17290010
Questions about Baltur TBG 60 P-V parts
Which burner components fit Baltur TBG 60 P-V?
These fit Baltur TBG 60 P-V: Baltur Air damper 0025010030; Baltur Fixing Plate 0025030037; Baltur Equalizing Disc 0025040004. ↑
Which burner pipes, flanges & connections fit Baltur TBG 60 P-V?
These fit Baltur TBG 60 P-V: Baltur Nipple G1/4" 0005150098; Baltur Nipple 0020040004. ↑
Which cables fit Baltur TBG 60 P-V?
These fit Baltur TBG 60 P-V: Baltur Cable Entry 0005140469; Baltur Transformer Power Cable 0005140604. ↑
Which actuators fit Baltur TBG 60 P-V?
These fit Baltur TBG 60 P-V: Baltur Actuator S55454-D335-A100. ↑
Which control devices fit Baltur TBG 60 P-V?
These fit Baltur TBG 60 P-V: Baltur Burner Control Unit 0005030201. ↑
Which plugs and connectors fit Baltur TBG 60 P-V?
These fit Baltur TBG 60 P-V: Hirschmann Connector A-14 23522. ↑
