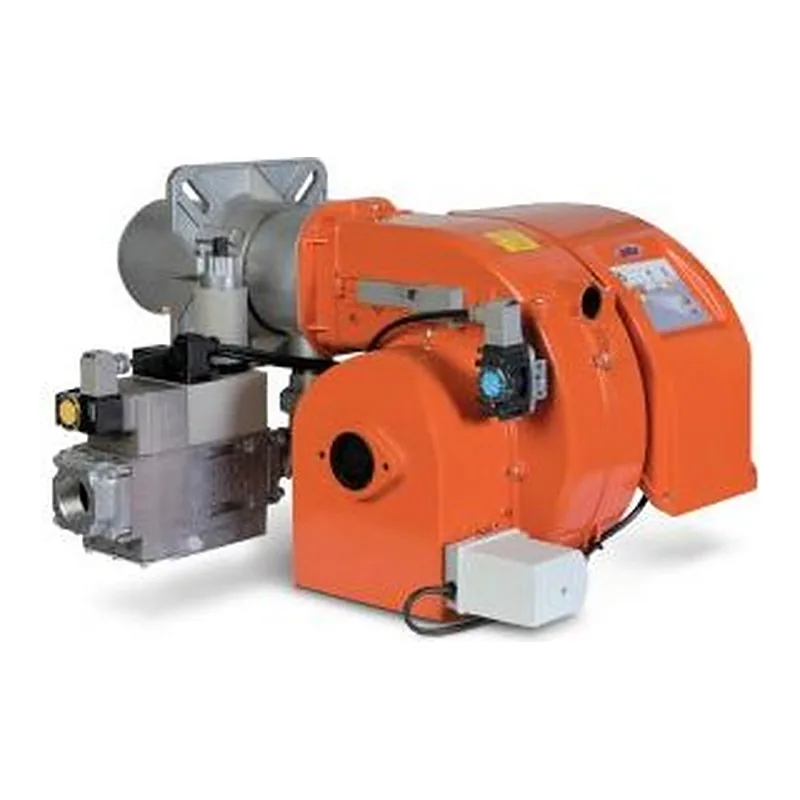

Baltur TBG 85 P L600 — spare parts
- Fuel
- Gas
- Output
- 170–850 kW
- Parts
- 12
- Factory code
- FS 22001320
- Series
- TBG 85 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBG 85 P L600 · 3
—on request
—on request
Boiler filters, gaskets & seals for Baltur TBG 85 P L600 · 2
—on request
—on request
Blast tubes & combustion heads for Baltur TBG 85 P L600 · 1
—on request
Boiler pipes, flanges & connections for Baltur TBG 85 P L600 · 1
—on request
Burner pipes, flanges & connections for Baltur TBG 85 P L600 · 1
—on request
Cables for Baltur TBG 85 P L600 · 1
—on request
Control devices for Baltur TBG 85 P L600 · 1
—on request
Flues & air ducts for Baltur TBG 85 P L600 · 1
—on request
Gas valves for Baltur TBG 85 P L600 · 1
—on request
What is inside Baltur TBG 85 P L600
Components named in the manufacturer's documentation.
- LME 22.331
- Siemens SQN72
Specifications
FuelGas
Output170–850 kW
Firing stagesTwo-stage
Fan motor power1100 W
Supply voltage380 V
Power consumption1200 W
Net weight58 kg
Protection class (IP)IP44
Flame tube length600 mm
Flame tube diameter180 mm
Flame tube typeextended
Back pressure (combustion chamber)0–10 mbar
Gas consumption17.1–85 m³/h
Noise level73 dB
Overall dimensions140 x 64.5 x 52 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesBaltur TBG 85 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBG 85 MC
12 parts · 17540010 - TBG 85 ME
12 parts · 17500020 - TBG 85 P
12 parts · 17480010 - TBG 85 P L600
12 parts · FS 22001320 - TBG 85 P-V
12 parts · 17480020 - TBG 85 PN
12 parts · 17490010
Questions about Baltur TBG 85 P L600 parts
Which burner components fit Baltur TBG 85 P L600?
These fit Baltur TBG 85 P L600: Baltur Air damper 0024010012; Baltur Articulated Connection 0024010020; Baltur Gas head 0024020006. ↑
Which boiler filters, gaskets & seals fit Baltur TBG 85 P L600?
These fit Baltur TBG 85 P L600: Baltur Gasket 0005180077; Baltur Gasket 0030010574. ↑
Which blast tubes & combustion heads fit Baltur TBG 85 P L600?
These fit Baltur TBG 85 P L600: Baltur Blast tube head 0024020001. ↑
Which boiler pipes, flanges & connections fit Baltur TBG 85 P L600?
These fit Baltur TBG 85 P L600: Baltur Flange Gasket 0024020003. ↑
Which burner pipes, flanges & connections fit Baltur TBG 85 P L600?
These fit Baltur TBG 85 P L600: Baltur Connecting Elbow 0024030004. ↑
Which cables fit Baltur TBG 85 P L600?
These fit Baltur TBG 85 P L600: Baltur Cable Entry 0005140469. ↑
