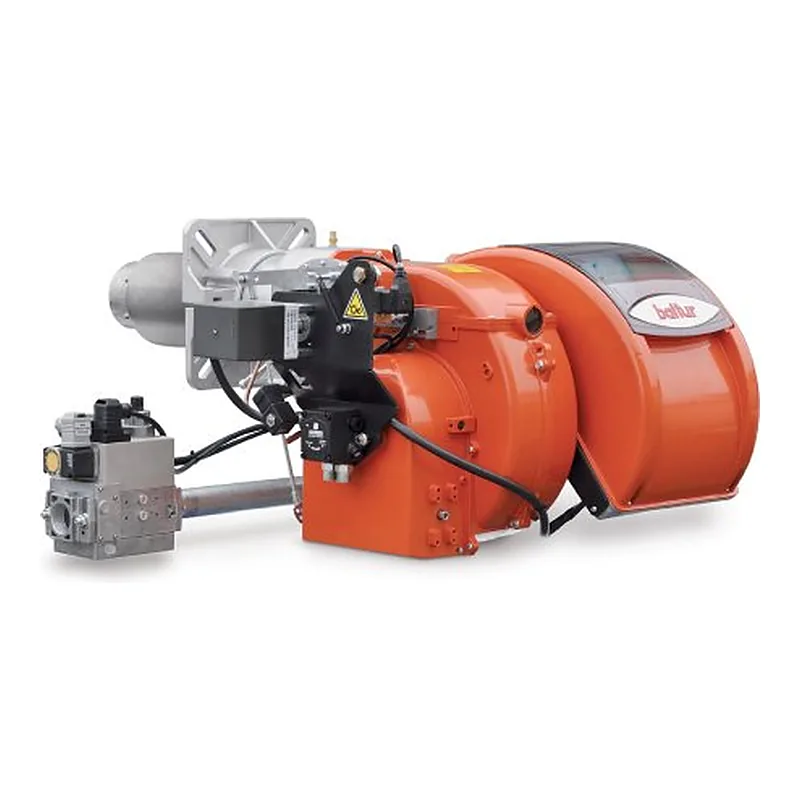

Baltur TBML 50 MC — spare parts
- Output
- 200–500 kW
- Parts
- 4
- Factory code
- 56450010
- Series
- TBML 50 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Baltur TBML 50 MC · 3
—on request
—on request
Ionization & ignition electrodes for Baltur TBML 50 MC · 1
—on request
Specifications
Output200–500 kW
Fan motor power650 W
Supply voltage380 V
Power consumption1100 W
Net weight55.5 kg
Protection class (IP)IP40
Flame tube length340 mm
Flame tube diameter156 mm
Back pressure (combustion chamber)0–7 mbar
Gas consumption10–50 m³/h
Noise level75 dB
Overall dimensions102 x 64 x 45.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesBaltur TBML 50 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- TBML 50 MC
4 parts · 56450010 - TBML 50 ME
4 parts · 56460010
Questions about Baltur TBML 50 MC parts
Which burner components fit Baltur TBML 50 MC?
These fit Baltur TBML 50 MC: Baltur Bearing 0005170048; Baltur Clutch 0006020507; Baltur Clutch Housing 0024100065. ↑
Which ionization & ignition electrodes fit Baltur TBML 50 MC?
These fit Baltur TBML 50 MC: Baltur Ignition Electrode 0025050016. ↑
