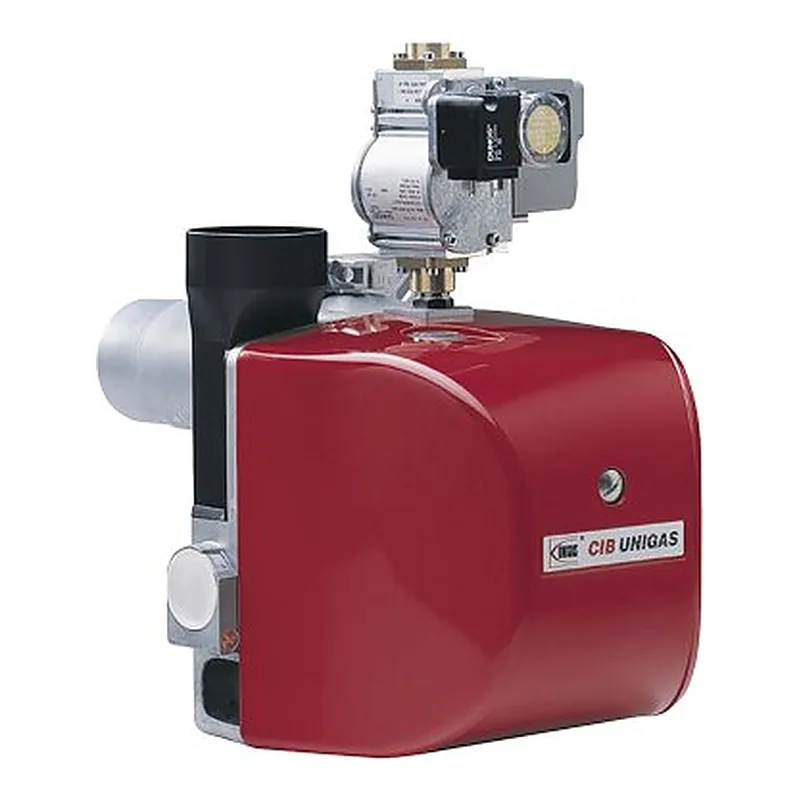

CIB Unigas NG35 M-.TN.S.RU.A.0.20 — gas burner, photo 1

CIB Unigas NG35 M-.TN.S.RU.A.0.20 — spare parts

Fuel
Gas
Output
20–41 kW
Parts
11
Series
NG35 · 8

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 2

Ignition cables and connectors for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 2

Ignition transformers for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 2

Block burners for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 1

Burners for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 1

Control devices for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 1

Ionization & ignition electrodes for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 1

Pressure switches for CIB Unigas NG35 M-.TN.S.RU.A.0.20 · 1

What is inside CIB Unigas NG35 M-.TN.S.RU.A.0.20

Components named in the manufacturer's documentation.

  • DUNGS MB-DLE 405
  • DUNGS MBC 65-DLE

Specifications

FuelGas
Output20–41 kW
Gas connectionRp 3/4"
Firing stagesSingle-stage
Fan motor power75 W
Supply voltage220 V
Power consumption380 W
Net weight12.5 kg
Protection class (IP)IP40
Flame tube diameter78.5 mm
Flame tube typeextended
Back pressure (combustion chamber)0–1.5 mbar
Gas consumption2.1–4.3 m³/h
Gas train pressure2.5–5.5 mbar
Operating temperature-10–50 °C
Overall dimensions41.6 x 26.9 x 40 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesCIB Unigas NG35 · 8

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about CIB Unigas NG35 M-.TN.S.RU.A.0.20 parts

Which burner components fit CIB Unigas NG35 M-.TN.S.RU.A.0.20?

These fit CIB Unigas NG35 M-.TN.S.RU.A.0.20: CIB Unigas Fire tube 30900H9; CIB Unigas Combustion Head 3501832. ↑

Which ignition cables and connectors fit CIB Unigas NG35 M-.TN.S.RU.A.0.20?

These fit CIB Unigas NG35 M-.TN.S.RU.A.0.20: CIB Unigas Ignition cable 6050122; CIB Unigas Ignition cable 6050152. ↑

Which ignition transformers fit CIB Unigas NG35 M-.TN.S.RU.A.0.20?

These fit CIB Unigas NG35 M-.TN.S.RU.A.0.20: CIB Unigas Ignition transformer 2170138; CIB Unigas Ignition transformer 2170233. ↑

Which block burners fit CIB Unigas NG35 M-.TN.S.RU.A.0.20?

These fit CIB Unigas NG35 M-.TN.S.RU.A.0.20: Dungs Gas Multiblock MBC-65-DLE-S20 232620. ↑

Which burners fit CIB Unigas NG35 M-.TN.S.RU.A.0.20?

These fit CIB Unigas NG35 M-.TN.S.RU.A.0.20: CIB Unigas Burner Housing 3010046. ↑

Which control devices fit CIB Unigas NG35 M-.TN.S.RU.A.0.20?

These fit CIB Unigas NG35 M-.TN.S.RU.A.0.20: CIB Unigas Burner Control Unit 2020466. ↑
