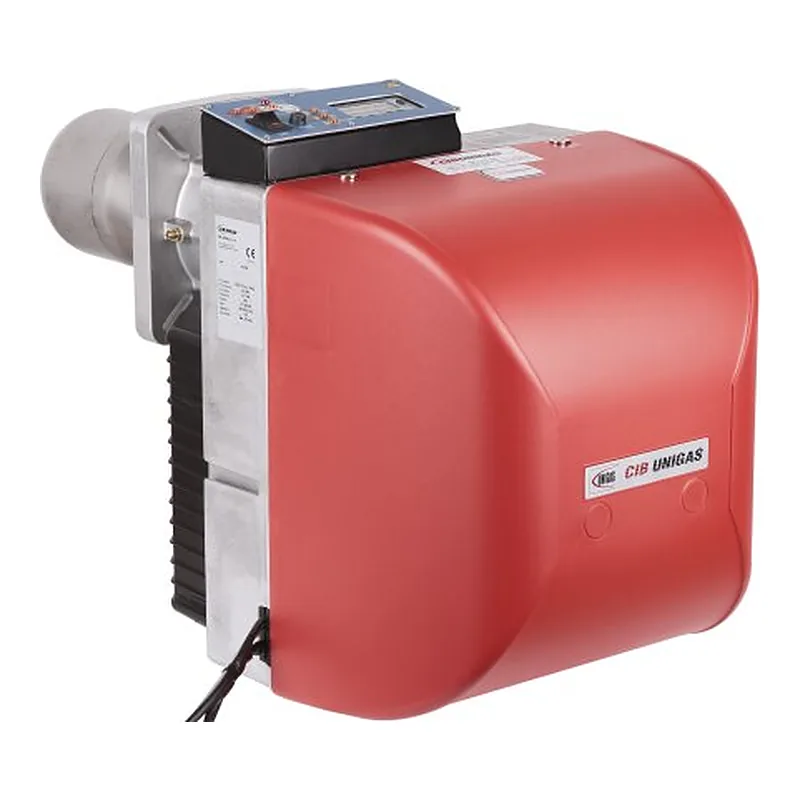

CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA — gas burner, photo 1

CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA — spare parts

Fuel
Gas
Output
115–420 kW
Parts
11

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 4

Pressure switches for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 2

Actuators for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 1

Control devices for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 1

Electronic control boards (PCB) for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 1

Ignition transformers for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 1

Motors for CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA · 1

Specifications

FuelGas
Output115–420 kW
Gas connectionRp 1 1/4"
Fan motor power370 W
Supply voltage220 V
Power consumption670 W
Net weight42 kg
Protection class (IP)IP40
Flame tube diameter144 mm
Flame tube typeadjustable
Back pressure (combustion chamber)0–8 mbar
Gas consumption12–44.5 m³/h
Gas train pressure1.6–16 mbar
Operating temperature-10–50 °C
Overall dimensions89.8 x 59.6 x 50.8 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesCIB Unigas NG400 · 39

Parts often differ between versions of one series: pick the version named on your rating plate.

All 39 versions

Questions about CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA parts

Which burner components fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA?

These fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA: CIB Unigas Red Plastic Cover 1011803; CIB Unigas Combustion Head 30600H2; CIB Unigas Fire tube 30900G3; CIB Unigas Combustion Head with Electrodes 3501842. ↑

Which pressure switches fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA?

These fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA: CIB Unigas Pressure switch 2160053; CIB Unigas Pressure switch 2160077. ↑

Which actuators fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA?

These fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA: CIB Unigas Actuator 2480074. ↑

Which control devices fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA?

These fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA: CIB Unigas Combustion Manager 2020477. ↑

Which electronic control boards (PCB) fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA?

These fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA: CIB Unigas Switching Board 6100541. ↑

Which ignition transformers fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA?

These fit CIB Unigas NG400 M-.PR.M.RU.A.8.32.EA: CIB Unigas Ignition transformer 2170138. ↑
