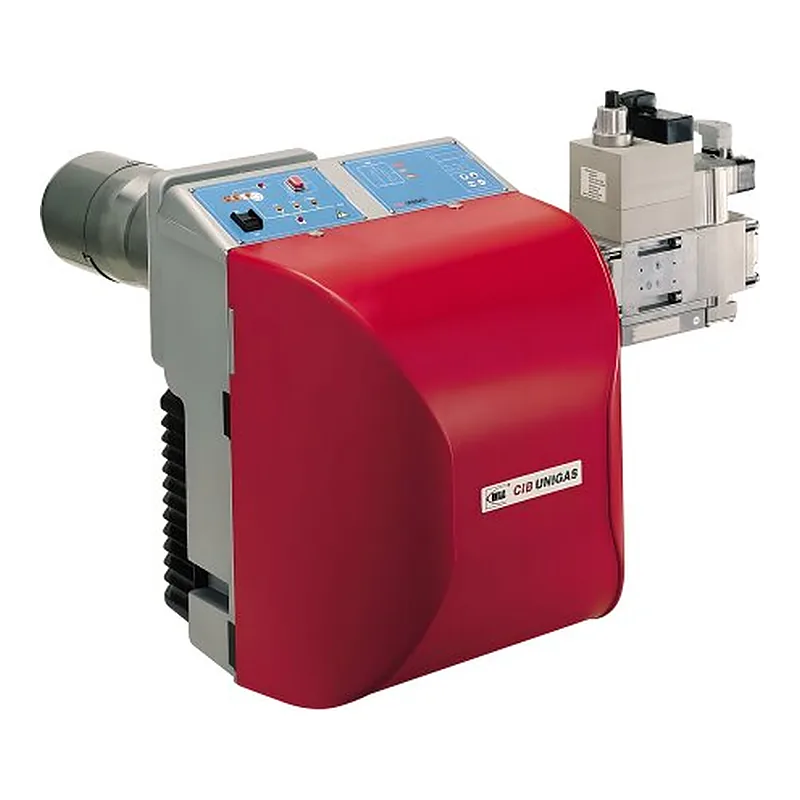

CIB Unigas NG550 M-.PR.S.RU.A.0.50 — gas burner, photo 1

CIB Unigas NG550 M-.PR.S.RU.A.0.50 — spare parts

Fuel
Gas
Output
160–570 kW
Parts
11

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Ignition transformers for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 2

Pressure switches for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 2

Actuators for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

Block burners for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

Boiler pipes, flanges & connections for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

Burners for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

Control devices for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

Electronic control boards (PCB) for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

Ionization & ignition electrodes for CIB Unigas NG550 M-.PR.S.RU.A.0.50 · 1

What is inside CIB Unigas NG550 M-.PR.S.RU.A.0.50

Components named in the manufacturer's documentation.

Specifications

FuelGas
Output160–570 kW
Gas connectionRp 2"
Fan motor power620 W
Supply voltage220 V
Power consumption920 W
Net weight55 kg
Protection class (IP)IP40
Flame tube length253 mm
Flame tube diameter165 mm
Flame tube typestandard
Back pressure (combustion chamber)0–8 mbar
Gas consumption17–60 m³/h
Gas train pressure1.3–12.5 mbar
Operating temperature-10–50 °C
Overall dimensions84.3 x 74.4 x 60.3 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesCIB Unigas NG550 · 49

Parts often differ between versions of one series: pick the version named on your rating plate.

All 49 versions

Questions about CIB Unigas NG550 M-.PR.S.RU.A.0.50 parts

Which ignition transformers fit CIB Unigas NG550 M-.PR.S.RU.A.0.50?

These fit CIB Unigas NG550 M-.PR.S.RU.A.0.50: CIB Unigas Ignition transformer 2170138; CIB Unigas Ignition transformer 2170233. ↑

Which pressure switches fit CIB Unigas NG550 M-.PR.S.RU.A.0.50?

These fit CIB Unigas NG550 M-.PR.S.RU.A.0.50: CIB Unigas Pressure switch 2160053; CIB Unigas Pressure switch 2160077. ↑

Which actuators fit CIB Unigas NG550 M-.PR.S.RU.A.0.50?

These fit CIB Unigas NG550 M-.PR.S.RU.A.0.50: CIB Unigas Actuator 2480074. ↑

Which block burners fit CIB Unigas NG550 M-.PR.S.RU.A.0.50?

These fit CIB Unigas NG550 M-.PR.S.RU.A.0.50: CIB Unigas Gas Multiblock 21903L4. ↑

Which boiler pipes, flanges & connections fit CIB Unigas NG550 M-.PR.S.RU.A.0.50?

These fit CIB Unigas NG550 M-.PR.S.RU.A.0.50: CIB Unigas Flange Gasket 2110056. ↑

Which burners fit CIB Unigas NG550 M-.PR.S.RU.A.0.50?

These fit CIB Unigas NG550 M-.PR.S.RU.A.0.50: CIB Unigas Burner Tube 30900F4. ↑
