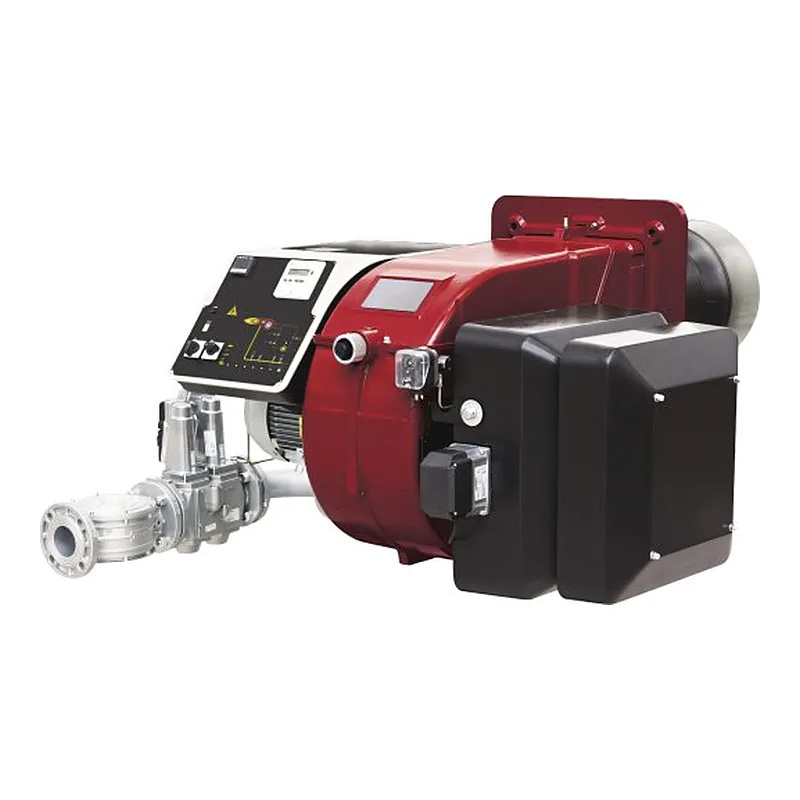

CIB Unigas R515A M-.MD.S.RU.A.1.100.ES — spare parts
- Fuel
- Gas
- Output
- 770–5200 kW
- Parts
- 2
- Series
- R515A · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Control devices for CIB Unigas R515A M-.MD.S.RU.A.1.100.ES · 2
—on request
Specifications
FuelGas
Output770–5200 kW
Fan motor power11000 W
Power consumption11500 W
Net weight290 kg
Protection class (IP)IP40
Flame tube length530 mm
Flame tube diameter380 mm
Flame tube typestandard
Back pressure (combustion chamber)0–18 mbar
Gas consumption81–550 m³/h
Gas train pressure4–59 mbar
Noise level85 dB
Operating temperature-10–50 °C
Overall dimensions168.3 x 172.6 x 76.4 cm
Delivery scopewith combustion head, with gas train
Additional featurescontinuous ventilation
Other versions of this seriesCIB Unigas R515A · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- R515A M-
4 parts - R515A M-.MD.S.RU.A.1.50.ES
2 parts - R515A M-.MD.S.RU.A.1.65.ES
2 parts - R515A M-.MD.S.RU.A.1.80.ES
2 parts - R515A M-.MD.S.RU.A.1.100.ES
2 parts - R515A M-.PR.S.RU.A.8.50.EA
2 parts
Questions about CIB Unigas R515A M-.MD.S.RU.A.1.100.ES parts
Which control devices fit CIB Unigas R515A M-.MD.S.RU.A.1.100.ES?
These fit CIB Unigas R515A M-.MD.S.RU.A.1.100.ES: CIB Unigas Combustion Manager 2020456; CIB Unigas Combustion Manager LMV51.300B2 2020478. ↑
