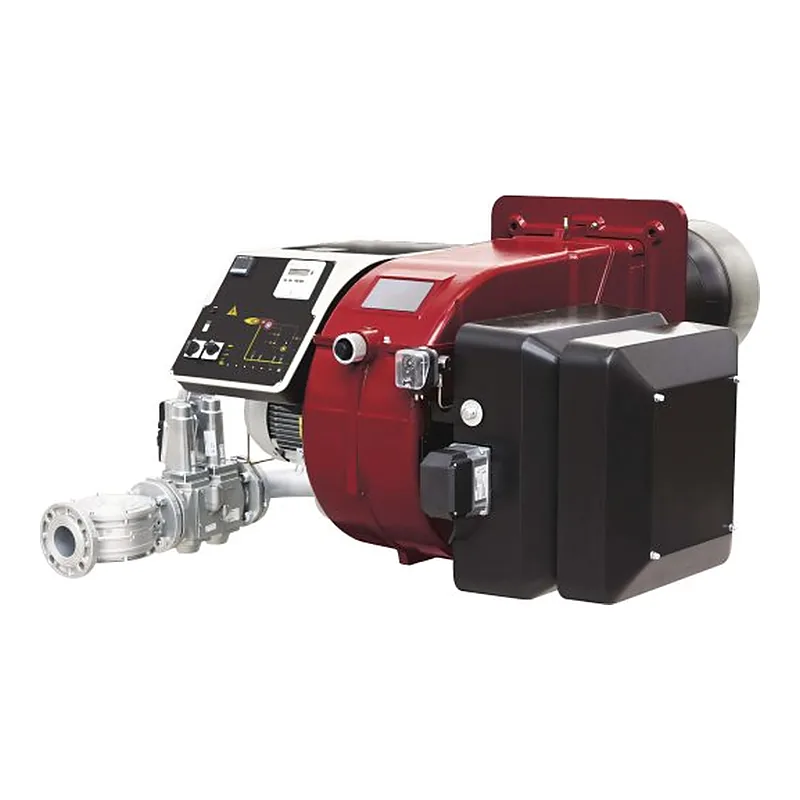

CIB Unigas R525A M-.MD.S.RU.A.1.100 — gas burner, photo 1

CIB Unigas R525A M-.MD.S.RU.A.1.100 — spare parts

Fuel
Gas
Output
2000–8000 kW
Parts
4

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for CIB Unigas R525A M-.MD.S.RU.A.1.100 · 1

Electronic control boards (PCB) for CIB Unigas R525A M-.MD.S.RU.A.1.100 · 1

Gas filters for CIB Unigas R525A M-.MD.S.RU.A.1.100 · 1

Motors for CIB Unigas R525A M-.MD.S.RU.A.1.100 · 1

Specifications

FuelGas
Output2000–8000 kW
Fan motor power18500 W
Power consumption19000 W
Net weight340 kg
Protection class (IP)IP40
Flame tube length530 mm
Flame tube diameter434 mm
Flame tube typestandard
Back pressure (combustion chamber)0–20 mbar
Gas consumption212–847 m³/h
Gas train pressure9–126.5 mbar
Noise level85 dB
Operating temperature-10–50 °C
Overall dimensions168.3 x 172.6 x 87.4 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesCIB Unigas R525A · 15

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about CIB Unigas R525A M-.MD.S.RU.A.1.100 parts

Which burner components fit CIB Unigas R525A M-.MD.S.RU.A.1.100?

These fit CIB Unigas R525A M-.MD.S.RU.A.1.100: CIB Unigas Combustion Head Cone 3240022. ↑

Which electronic control boards (PCB) fit CIB Unigas R525A M-.MD.S.RU.A.1.100?

These fit CIB Unigas R525A M-.MD.S.RU.A.1.100: CIB Unigas Printed Board R91A-R525A 6100573. ↑

Which gas filters fit CIB Unigas R525A M-.MD.S.RU.A.1.100?

These fit CIB Unigas R525A M-.MD.S.RU.A.1.100: CIB Unigas Gas filter 2090112. ↑

Which motors fit CIB Unigas R525A M-.MD.S.RU.A.1.100?

These fit CIB Unigas R525A M-.MD.S.RU.A.1.100: CIB Unigas Electric Motor 21800C2. ↑
