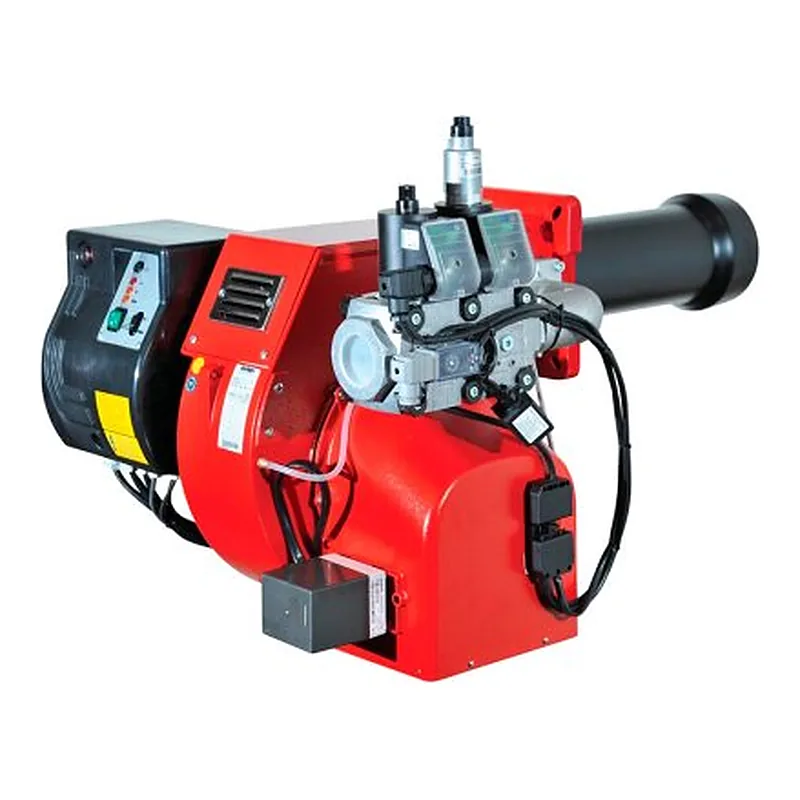

Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 — gas burner, photo 1

Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 — spare parts

Fuel
Gas
Output
280–875 kW
Parts
12
Factory code
3145110-3145934

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 · 7

Burner pipes, flanges & connections for Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 · 2

Burners for Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 · 2

Boiler components for Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 · 1

Specifications

FuelGas
Output280–875 kW
Gas connectionRp 2"
Fan motor power1100 W
Power consumption1600 W
Net weight50 kg
Protection class (IP)IP40
Flame tube length174 mm
Flame tube diameter190 mm
Flame tube typeshort
Back pressure (combustion chamber)0–8 mbar
Gas consumption24.6–97.3 m³/h
Gas train pressure9–24 mbar
Noise level80 dB
Operating temperature-10–60 °C
Overall dimensions73 x 65 x 69.6 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesEcoflam BLU 1000.1 · 21

Parts often differ between versions of one series: pick the version named on your rating plate.

All 21 versions

Questions about Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420 parts

Which burner components fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420?

These fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420: Ecoflam Air Ring 65320639; Ecoflam Fusible Link Nest 65322181; Ecoflam Diffuser 65324162; Ecoflam Tube 65324339; Ecoflam Adjustment Rod 65324341; Ecoflam Adjustment Rod 65324342; Ecoflam Equalizing Disc 65324345. ↑

Which burner pipes, flanges & connections fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420?

These fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420: Ecoflam Burner pipe fitting 65321341; Ecoflam Nipple Set 65324718. ↑

Which burners fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420?

These fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420: Ecoflam Burner Cover 65324052; Ecoflam Burner Flame Tube 65324347. ↑

Which boiler components fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420?

These fit Ecoflam BLU 1000.1 PRE Low NOx TC MB-DLE 420: Ecoflam Sight Glass 65320487. ↑
