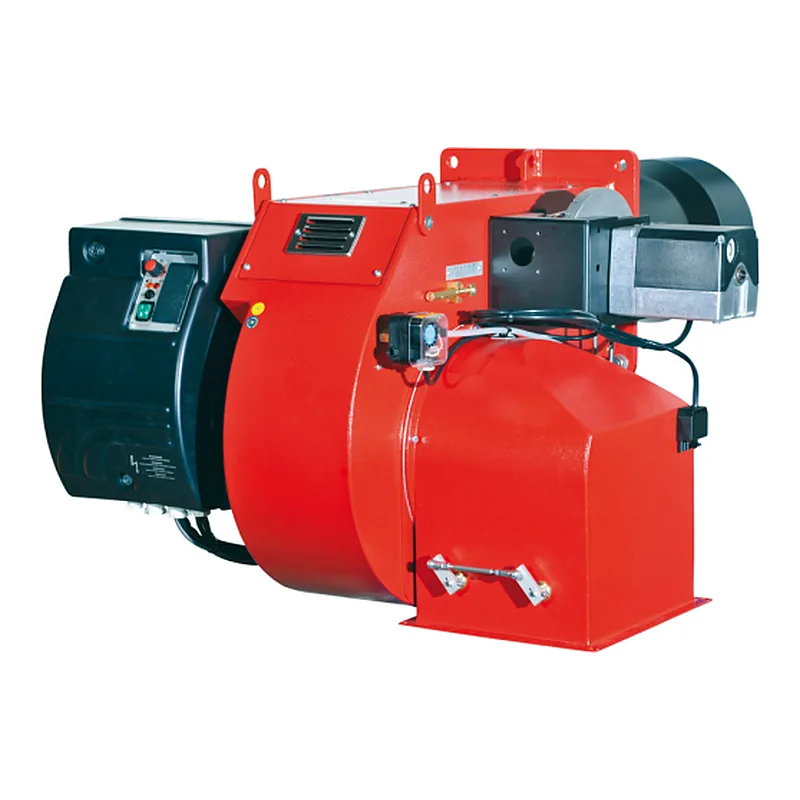

Ecoflam BLU 4000.1 PR TL VGD 20.503 — spare parts
- Fuel
- Gas
- Output
- 875–3900 kW
- Parts
- 14
- Factory code
- 3145870-3146004-3142075-3121384
- Series
- BLU 4000.1 · 22
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 5
—on request
—on request
—on request
—on request
Blast tubes & combustion heads for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 2
—on request
—on request
Actuators for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
1140.00 EURexcl. VAT · import VAT and duties on delivery
Boiler components for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
—on request
Burner pipes, flanges & connections for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
—on request
Control boxes for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
993.06 EURexcl. VAT · import VAT and duties on delivery
Flues & air ducts for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
—on request
Sensors and switches for Ecoflam BLU 4000.1 PR TL VGD 20.503 · 1
—on request
What is inside Ecoflam BLU 4000.1 PR TL VGD 20.503
Components named in the manufacturer's documentation.
- SQM50.481A2 in stock
- LANDIS LFL1.333 in stock
- COFI 820 PM
- EL/N-SC4 Elettrospring
- FINDER 5532
- FUSIT FH-B528
- ISOMART BFG04051/1
- LANDIS LFL1.622
- Lovato RF25 14-23 A
- Lovato RF25 9-15 A
Specifications
FuelGas
Output875–3900 kW
Gas connectionRp 2"
Fan motor power7500 W
Power consumption9000 W
Net weight249.5 kg
Protection class (IP)IP40
Flame tube length565 mm
Flame tube diameter320 mm
Flame tube typeextended
Back pressure (combustion chamber)0–15 mbar
Gas consumption87.8–391.3 m³/h
Gas train pressure14–114 mbar
Noise level88.3 dB
Operating temperature-10–60 °C
Overall dimensions134.5 x 94.1 x 63.1 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam BLU 4000.1 · 22
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU 4000.1 PR TC VGD 20.503
14 parts · 3145869-3146004-3142075-3121384 - BLU 4000.1 PR TC VGD 40.080
14 parts · 3145869-3146006-3145815-3142088 - BLU 4000.1 PR TC VGD 40.100
14 parts · 3145869-3146007-3145820-3142205 - BLU 4000.1 PR TL
14 parts · 3145870 - BLU 4000.1 PR TL A
14 parts · 3147971 - BLU 4000.1 PR TL VGD
14 parts · 3145870-3146005-3145800-3124111 - BLU 4000.1 PR TL VGD 20.503
14 parts · 3145870-3146004-3142075-3121384 - BLU 4000.1 PR TL VGD 40.080
14 parts · 3145870-3146006-3145815-3142088 - BLU 4000.1 PR TL VGD 40.100
14 parts · 3145870-3146007-3145820-3142205 - BLU 4000.1 PRE TC
12 parts · 3145126 - BLU 4000.1 PRE TC A
12 parts · 3147982 - BLU 4000.1 PRE TC VGD
12 parts · 3145126-3145790-3142075-3121384 · 3145126-3145793-3145800-3124111
All 22 versions
- BLU 4000.1 PR TC
14 parts · 3145869 - BLU 4000.1 PR TC A
14 parts · 3147970 - BLU 4000.1 PR TC VGD
14 parts · 3145869-3146005-3145800-3124111 - BLU 4000.1 PR TC VGD 20.503
14 parts · 3145869-3146004-3142075-3121384 - BLU 4000.1 PR TC VGD 40.080
14 parts · 3145869-3146006-3145815-3142088 - BLU 4000.1 PR TC VGD 40.100
14 parts · 3145869-3146007-3145820-3142205 - BLU 4000.1 PR TL
14 parts · 3145870 - BLU 4000.1 PR TL A
14 parts · 3147971 - BLU 4000.1 PR TL VGD
14 parts · 3145870-3146005-3145800-3124111 - BLU 4000.1 PR TL VGD 20.503
14 parts · 3145870-3146004-3142075-3121384 - BLU 4000.1 PR TL VGD 40.080
14 parts · 3145870-3146006-3145815-3142088 - BLU 4000.1 PR TL VGD 40.100
14 parts · 3145870-3146007-3145820-3142205 - BLU 4000.1 PRE TC
12 parts · 3145126 - BLU 4000.1 PRE TC A
12 parts · 3147982 - BLU 4000.1 PRE TC VGD
12 parts · 3145126-3145790-3142075-3121384 · 3145126-3145793-3145800-3124111 - BLU 4000.1 PRE TC VGD 40.080
12 parts · 3145126-3145814-3145815-3142088 - BLU 4000.1 PRE TC VGD 40.100
12 parts · 3145126-3145817-3145820-3142205 - BLU 4000.1 PRE TL
12 parts · 3145127 - BLU 4000.1 PRE TL A
12 parts · 3147983 - BLU 4000.1 PRE TL VGD
12 parts · 3145127-3145790-3142075-3121384 · 3145127-3145793-3145800-3124111 - BLU 4000.1 PRE TL VGD 40.080
12 parts · 3145127-3145814-3145815-3142088 - BLU 4000.1 PRE TL VGD 40.100
12 parts · 3145127-3145817-3145820-3142205
Questions about Ecoflam BLU 4000.1 PR TL VGD 20.503 parts
Which burner components fit Ecoflam BLU 4000.1 PR TL VGD 20.503?
These fit Ecoflam BLU 4000.1 PR TL VGD 20.503: Ecoflam Adjustment Rod 65320242; Ecoflam Adjustment Rod 65320243; Ecoflam Diffuser 65321608; Ecoflam Fusible Link Nest 65322181; Elco Red cover 65320678. ↑
Which blast tubes & combustion heads fit Ecoflam BLU 4000.1 PR TL VGD 20.503?
These fit Ecoflam BLU 4000.1 PR TL VGD 20.503: Elco Combustion Head 65324305; Elco Combustion Head 65325360. ↑
Which actuators fit Ecoflam BLU 4000.1 PR TL VGD 20.503?
These fit Ecoflam BLU 4000.1 PR TL VGD 20.503: Siemens Servo actuator SQM50.481A2. ↑
Which boiler components fit Ecoflam BLU 4000.1 PR TL VGD 20.503?
These fit Ecoflam BLU 4000.1 PR TL VGD 20.503: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam BLU 4000.1 PR TL VGD 20.503?
These fit Ecoflam BLU 4000.1 PR TL VGD 20.503: Ecoflam Flange Gasket 65321125. ↑
Which burner pipes, flanges & connections fit Ecoflam BLU 4000.1 PR TL VGD 20.503?
These fit Ecoflam BLU 4000.1 PR TL VGD 20.503: Elco Gas Elbow 65321664. ↑
