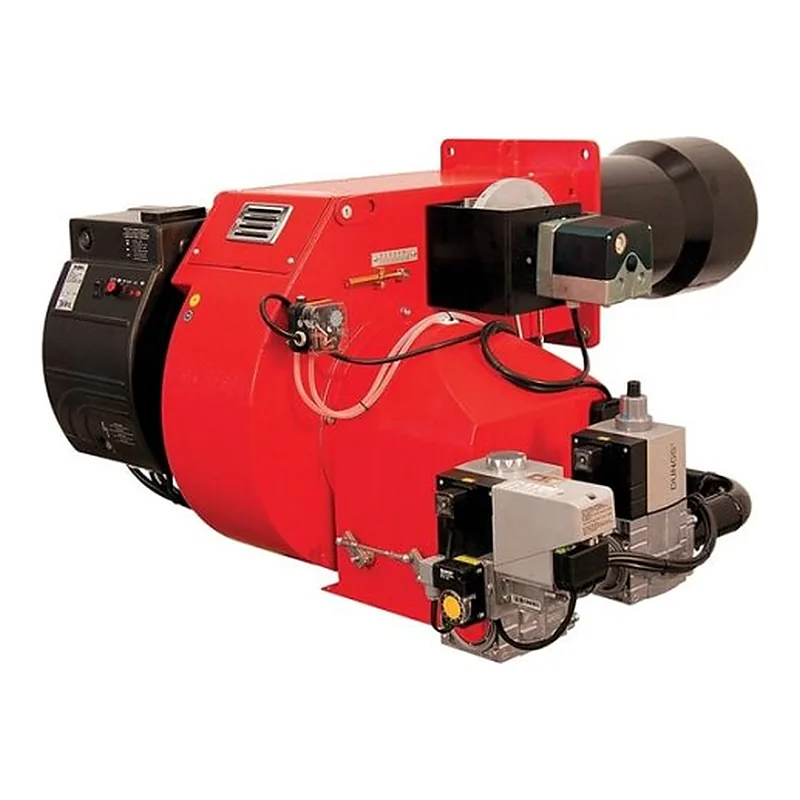

Ecoflam BLU 5000.1 PR TC VGD 40.080 — spare parts
- Fuel
- Gas
- Output
- 1200–5000 kW
- Parts
- 12
- Factory code
- 3145871-3146006-3145864-3142088
- Series
- BLU 5000.1 · 27
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU 5000.1 PR TC VGD 40.080 · 6
—on request
—on request
—on request
—on request
—on request
Blast tubes & combustion heads for Ecoflam BLU 5000.1 PR TC VGD 40.080 · 2
—on request
—on request
Boiler components for Ecoflam BLU 5000.1 PR TC VGD 40.080 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam BLU 5000.1 PR TC VGD 40.080 · 1
—on request
Impellers for Ecoflam BLU 5000.1 PR TC VGD 40.080 · 1
—on request
Sensors and switches for Ecoflam BLU 5000.1 PR TC VGD 40.080 · 1
—on request
Specifications
FuelGas
Output1200–5000 kW
Fan motor power11000 W
Power consumption12500 W
Protection class (IP)IP40
Flame tube length375 mm
Flame tube diameter320 mm
Flame tube typeshort
Back pressure (combustion chamber)0–18 mbar
Gas consumption120.4–501.7 m³/h
Gas train pressure15–54 mbar
Noise level85.7 dB
Operating temperature-10–60 °C
Overall dimensions134.5 x 101.9 x 73 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam BLU 5000.1 · 27
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU 5000.1 PR TC
12 parts · 3145871 - BLU 5000.1 PR TC A
12 parts · 3147972 - BLU 5000.1 PR TC VGD
12 parts · 3145871-3146005-3145997-3124111 - BLU 5000.1 PR TC VGD 20.503
12 parts · 3145871-3146004-3142075-3121384 - BLU 5000.1 PR TC VGD 40.080
12 parts · 3145871-3146006-3145864-3142088 - BLU 5000.1 PR TC VGD 40.100
12 parts · 3145871-3146007-3145821-3142205 - BLU 5000.1 PR TC VGD 40.125
12 parts · 3145871-3146008-3145830-3142206 - BLU 5000.1 PR TL
12 parts · 3145872 - BLU 5000.1 PR TL A
12 parts · 3147973 - BLU 5000.1 PR TL VGD
12 parts · 3145872-3146005-3145997-3124111 - BLU 5000.1 PR TL VGD 20.503
12 parts · 3145872-3146004-3142075-3121384 - BLU 5000.1 PR TL VGD 40.080
12 parts · 3145872-3146006-3145864-3142088
All 27 versions
- BLU 5000.1 PR TC
12 parts · 3145871 - BLU 5000.1 PR TC A
12 parts · 3147972 - BLU 5000.1 PR TC VGD
12 parts · 3145871-3146005-3145997-3124111 - BLU 5000.1 PR TC VGD 20.503
12 parts · 3145871-3146004-3142075-3121384 - BLU 5000.1 PR TC VGD 40.080
12 parts · 3145871-3146006-3145864-3142088 - BLU 5000.1 PR TC VGD 40.100
12 parts · 3145871-3146007-3145821-3142205 - BLU 5000.1 PR TC VGD 40.125
12 parts · 3145871-3146008-3145830-3142206 - BLU 5000.1 PR TL
12 parts · 3145872 - BLU 5000.1 PR TL A
12 parts · 3147973 - BLU 5000.1 PR TL VGD
12 parts · 3145872-3146005-3145997-3124111 - BLU 5000.1 PR TL VGD 20.503
12 parts · 3145872-3146004-3142075-3121384 - BLU 5000.1 PR TL VGD 40.080
12 parts · 3145872-3146006-3145864-3142088 - BLU 5000.1 PR TL VGD 40.100
12 parts · 3145872-3146007-3145821-3142205 - BLU 5000.1 PR TL VGD 40.125
12 parts · 3145872-3146008-3145830-3142206 - BLU 5000.1 PRE TC
12 parts · 3145128 - BLU 5000.1 PRE TC A
12 parts · 3147984 - BLU 5000.1 PRE TC VGD
12 parts · 3145128-3145793-3145997-3124111 - BLU 5000.1 PRE TC VGD 20.503
12 parts · 3145128-3145790-3142075-3121384 - BLU 5000.1 PRE TC VGD 40.080
12 parts · 3145128-3145814-3145864-3142088 - BLU 5000.1 PRE TC VGD 40.100
12 parts · 3145128-3145817-3145821-3142205 - BLU 5000.1 PRE TC VGD 40.125
12 parts · 3145128-3145823-3142206-3145830 - BLU 5000.1 PRE TL
12 parts · 3145129 - BLU 5000.1 PRE TL A
12 parts · 3147985 - BLU 5000.1 PRE TL VGD
12 parts · 3145129-3145790-3142075-3121384 · 3145129-3145793-3124111-3145997 - BLU 5000.1 PRE TL VGD 40.080
12 parts · 3145129-3145814-3145864-3142088 - BLU 5000.1 PRE TL VGD 40.100
12 parts · 3145129-3145817-3145821-3142205 - BLU 5000.1 PRE TL VGD 40.125
12 parts · 3145129-3145823-3145830-3142206
Questions about Ecoflam BLU 5000.1 PR TC VGD 40.080 parts
Which burner components fit Ecoflam BLU 5000.1 PR TC VGD 40.080?
These fit Ecoflam BLU 5000.1 PR TC VGD 40.080: Ecoflam Diffuser 65321608; Ecoflam Fusible Link Nest 65322181; Ecoflam Intake Air Ring 65324264; Ecoflam Adjustment Rod 65324434; Ecoflam Adjustment Rod 65324492; Ecoflam Gas Damper 65325722. ↑
Which blast tubes & combustion heads fit Ecoflam BLU 5000.1 PR TC VGD 40.080?
These fit Ecoflam BLU 5000.1 PR TC VGD 40.080: Elco Combustion Head 65325361; Elco Combustion Head 65325362. ↑
Which boiler components fit Ecoflam BLU 5000.1 PR TC VGD 40.080?
These fit Ecoflam BLU 5000.1 PR TC VGD 40.080: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam BLU 5000.1 PR TC VGD 40.080?
These fit Ecoflam BLU 5000.1 PR TC VGD 40.080: Ecoflam Flange Gasket 65321128. ↑
Which impellers fit Ecoflam BLU 5000.1 PR TC VGD 40.080?
These fit Ecoflam BLU 5000.1 PR TC VGD 40.080: Ecoflam Fan Impeller 65321801. ↑
Which sensors and switches fit Ecoflam BLU 5000.1 PR TC VGD 40.080?
These fit Ecoflam BLU 5000.1 PR TC VGD 40.080: Lovato Thermal Relay V195 RF38. ↑
