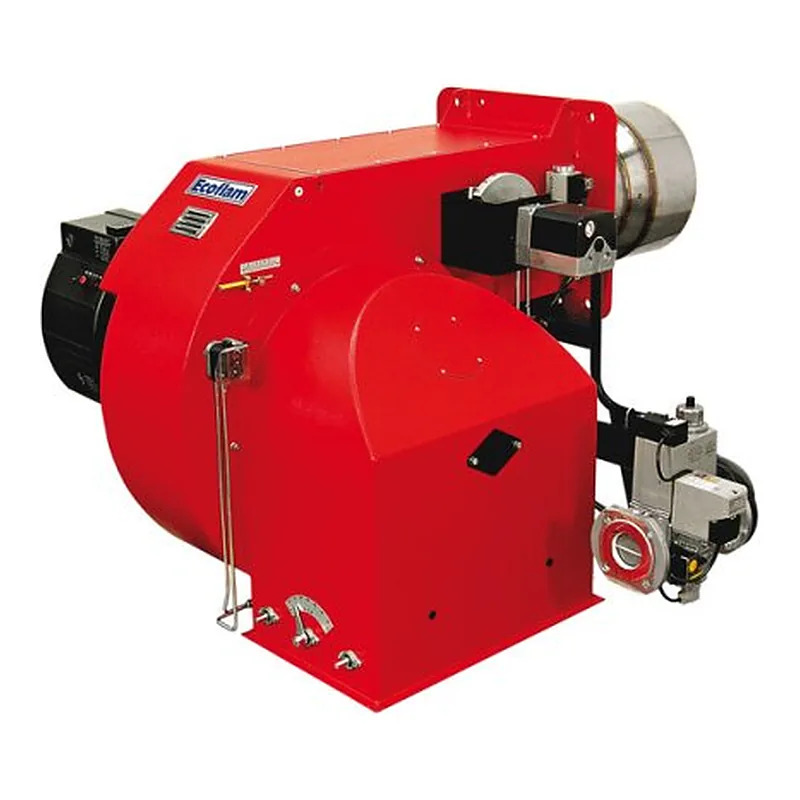

Ecoflam BLU TS 10000.1 PRE TM HT — spare parts
- Fuel
- Gas
- Output
- 2500–10500 kW
- Parts
- 11
- Factory code
- 3145534
- Series
- BLU TS 10000.1 · 9
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU TS 10000.1 PRE TM HT · 3
—on request
—on request
Gas nozzles & injectors for Ecoflam BLU TS 10000.1 PRE TM HT · 2
—on request
—on request
Blast tubes & combustion heads for Ecoflam BLU TS 10000.1 PRE TM HT · 1
—on request
Boiler components for Ecoflam BLU TS 10000.1 PRE TM HT · 1
—on request
Gas valves for Ecoflam BLU TS 10000.1 PRE TM HT · 1
—on request
Pressure switches for Ecoflam BLU TS 10000.1 PRE TM HT · 1
—on request
Sensors and switches for Ecoflam BLU TS 10000.1 PRE TM HT · 1
—on request
Wiring, cables & electrical components for Ecoflam BLU TS 10000.1 PRE TM HT · 1
—on request
What is inside Ecoflam BLU TS 10000.1 PRE TM HT
Components named in the manufacturer's documentation.
- COFI
- KITMD-RWF50
- KITPRES150
- KITPRES50
- KITTC
- VGD 20.503 Rp 2”
- VGD 40.065
- VGD 40.080
- VGD 40.100
- VGD 40.125
- Ecoflam BLU 10000.1 PRE
- Ecoflam BLU 12000.1 PRE
- Ecoflam BLU 7000.1 PRE
- Ecoflam BLU 8000.1 PRE
- LAMTEC BT320
Specifications
FuelGas
Output2500–10500 kW
Fan motor power22000 W
Power consumption23500 W
Protection class (IP)IP55
Flame tube length470 mm
Flame tube diameter420 mm
Flame tube typestandard
Back pressure (combustion chamber)0–28 mbar
Gas consumption292.8–1229.9 m³/h
Noise level95.6 dB
Operating temperature-10–60 °C
Overall dimensions121.2 x 131 x 154 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam BLU TS 10000.1 · 9
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU TS 10000.1 LN PRE TC HT
11 parts · 3145354 - BLU TS 10000.1 LN PRE TC HT BT3
11 parts · 3146935 - BLU TS 10000.1 LN PRE TL HT
11 parts · 3145356 - BLU TS 10000.1 LN PRE TL HT BT3
11 parts · 3146937 - BLU TS 10000.1 LN PRE TM HT
11 parts · 3145355 - BLU TS 10000.1 LN PRE TM HT BT3
11 parts · 3146936 - BLU TS 10000.1 PRE TC HT
11 parts · 3145533 - BLU TS 10000.1 PRE TL HT
11 parts · 3145535 - BLU TS 10000.1 PRE TM HT
11 parts · 3145534
Questions about Ecoflam BLU TS 10000.1 PRE TM HT parts
Which burner components fit Ecoflam BLU TS 10000.1 PRE TM HT?
These fit Ecoflam BLU TS 10000.1 PRE TM HT: Ecoflam Adjustment Rod 65320247; Ecoflam Fusible link nest 65324279; Elco Cover 65324059. ↑
Which gas nozzles & injectors fit Ecoflam BLU TS 10000.1 PRE TM HT?
These fit Ecoflam BLU TS 10000.1 PRE TM HT: Ecoflam Gas nozzle 65321611; Ecoflam Gas nozzle 65321672. ↑
Which blast tubes & combustion heads fit Ecoflam BLU TS 10000.1 PRE TM HT?
These fit Ecoflam BLU TS 10000.1 PRE TM HT: Elco Combustion Head 65325368. ↑
Which boiler components fit Ecoflam BLU TS 10000.1 PRE TM HT?
These fit Ecoflam BLU TS 10000.1 PRE TM HT: Ecoflam Sight Glass 65320487. ↑
Which gas valves fit Ecoflam BLU TS 10000.1 PRE TM HT?
These fit Ecoflam BLU TS 10000.1 PRE TM HT: Elco Gas Solenoid Valve 65324722. ↑
Which pressure switches fit Ecoflam BLU TS 10000.1 PRE TM HT?
These fit Ecoflam BLU TS 10000.1 PRE TM HT: Elco Pressure switch 65323033. ↑
