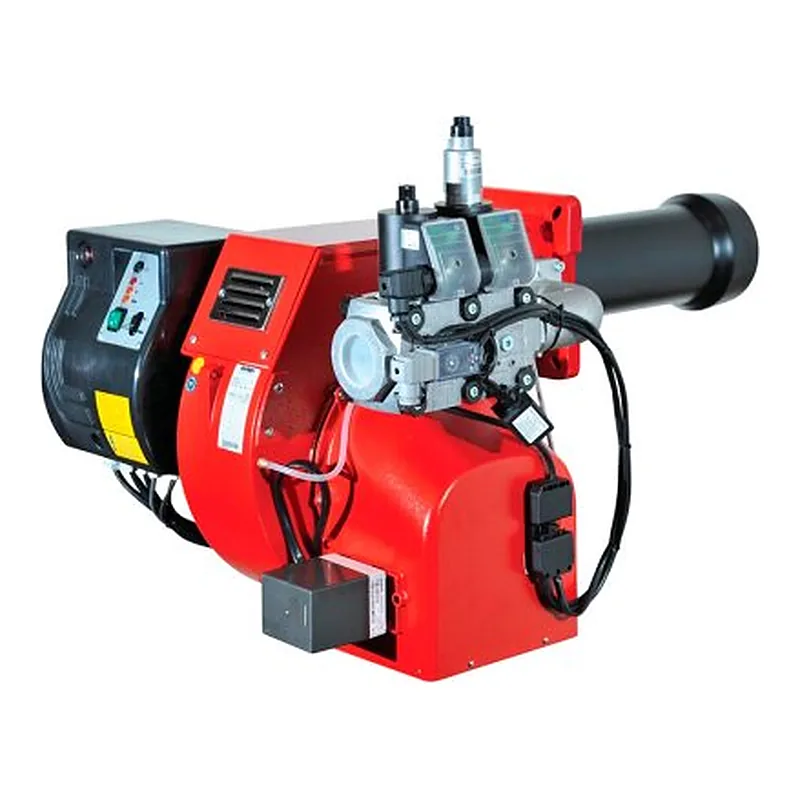

Ecoflam BLU TS 1000.1 LN PRE TC HT BT3 — spare parts
- Fuel
- Gas
- Output
- 280–875 kW
- Parts
- 12
- Factory code
- 3146916
- Series
- BLU TS 1000.1 · 9
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU TS 1000.1 LN PRE TC HT BT3 · 7
—on request
—on request
—on request
—on request
—on request
—on request
Burner pipes, flanges & connections for Ecoflam BLU TS 1000.1 LN PRE TC HT BT3 · 2
—on request
—on request
Burners for Ecoflam BLU TS 1000.1 LN PRE TC HT BT3 · 2
—on request
—on request
Boiler components for Ecoflam BLU TS 1000.1 LN PRE TC HT BT3 · 1
—on request
Specifications
FuelGas
Output280–875 kW
Fan motor power1100 W
Power consumption1600 W
Net weight50 kg
Protection class (IP)IP40
Flame tube length175 mm
Flame tube diameter190 mm
Flame tube typeshort
Back pressure (combustion chamber)0–8 mbar
Gas consumption28.1–87.8 m³/h
Noise level80 dB
Overall dimensions71.7 x 66.3 x 49.6 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam BLU TS 1000.1 · 9
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU TS 1000.1 LN PRE TC HT
12 parts · 3145593 - BLU TS 1000.1 LN PRE TC HT BT3
12 parts · 3146916 - BLU TS 1000.1 LN PRE TL HT
12 parts · 3145595 - BLU TS 1000.1 LN PRE TL HT BT3
12 parts · 3146918 - BLU TS 1000.1 LN PRE TM HT
12 parts · 3145594 - BLU TS 1000.1 LN PRE TM HT BT3
12 parts · 3146917 - BLU TS 1000.1 PAB TC HT
13 parts · 3145912 - BLU TS 1000.1 PAB TL HT
13 parts · 3145914 - BLU TS 1000.1 PAB TM HT
13 parts · 3145913
Questions about Ecoflam BLU TS 1000.1 LN PRE TC HT BT3 parts
Which burner components fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3?
These fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3: Ecoflam Air Ring 65320639; Ecoflam Fusible Link Nest 65322181; Ecoflam Diffuser 65324162; Ecoflam Tube 65324339; Ecoflam Adjustment Rod 65324341; Ecoflam Adjustment Rod 65324342; Ecoflam Equalizing Disc 65324345. ↑
Which burner pipes, flanges & connections fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3?
These fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3: Ecoflam Burner pipe fitting 65321341; Ecoflam Nipple Set 65324718. ↑
Which burners fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3?
These fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3: Ecoflam Burner Cover 65324052; Ecoflam Burner Flame Tube 65324347. ↑
Which boiler components fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3?
These fit Ecoflam BLU TS 1000.1 LN PRE TC HT BT3: Ecoflam Sight Glass 65320487. ↑
