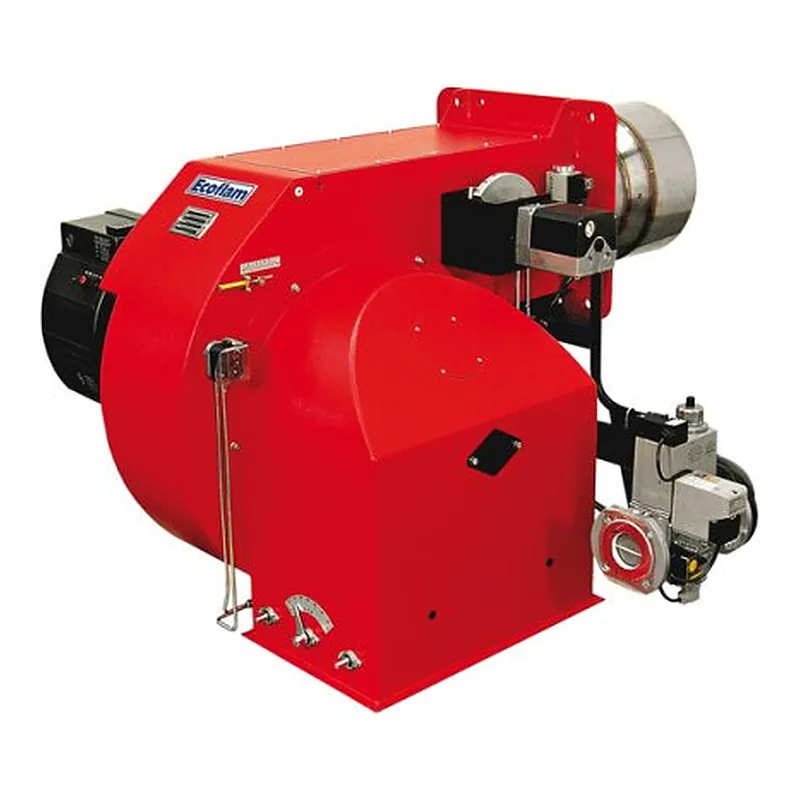

Ecoflam BLU TS 12000.1 LN PRE TL HT — spare parts
- Fuel
- Gas
- Output
- 2700–13000 kW
- Parts
- 11
- Factory code
- 3145359
- Series
- BLU TS 12000.1 · 10
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam BLU TS 12000.1 LN PRE TL HT · 2
—on request
Gas nozzles & injectors for Ecoflam BLU TS 12000.1 LN PRE TL HT · 2
—on request
—on request
Wiring, cables & electrical components for Ecoflam BLU TS 12000.1 LN PRE TL HT · 2
—on request
—on request
Blast tubes & combustion heads for Ecoflam BLU TS 12000.1 LN PRE TL HT · 1
—on request
Boiler components for Ecoflam BLU TS 12000.1 LN PRE TL HT · 1
—on request
Gas valves for Ecoflam BLU TS 12000.1 LN PRE TL HT · 1
—on request
Pressure switches for Ecoflam BLU TS 12000.1 LN PRE TL HT · 1
—on request
Sensors and switches for Ecoflam BLU TS 12000.1 LN PRE TL HT · 1
—on request
Specifications
FuelGas
Output2700–13000 kW
Fan motor power37000 W
Power consumption38500 W
Protection class (IP)IP55
Flame tube length470 mm
Flame tube diameter450 mm
Flame tube typeextended
Back pressure (combustion chamber)0–34 mbar
Gas consumption316.3–1534.4 m³/h
Noise level96.3 dB
Operating temperature-10–60 °C
Overall dimensions121.2 x 142 x 143.7 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam BLU TS 12000.1 · 10
Parts often differ between versions of one series: pick the version named on your rating plate.
- BLU TS 12000.1 LN PRE TC HT
11 parts · 3145357 - BLU TS 12000.1 LN PRE TC HT BT3
11 parts · 3146938 - BLU TS 12000.1 LN PRE TL HT
11 parts · 3145359 - BLU TS 12000.1 LN PRE TL HT BT3
11 parts · 3146940 - BLU TS 12000.1 LN PRE TM HT
11 parts · 3145358 - BLU TS 12000.1 LN PRE TM HT BT3
11 parts · 3146939 - BLU TS 12000.1 PR TC HT S
11 parts · 3145168 - BLU TS 12000.1 PRE TC HT
11 parts · 3145536 - BLU TS 12000.1 PRE TL HT
11 parts · 3145538 - BLU TS 12000.1 PRE TM HT
11 parts · 3145537
Questions about Ecoflam BLU TS 12000.1 LN PRE TL HT parts
Which burner components fit Ecoflam BLU TS 12000.1 LN PRE TL HT?
These fit Ecoflam BLU TS 12000.1 LN PRE TL HT: Ecoflam Adjustment Rod 65320247; Ecoflam Fusible link nest 65324279. ↑
Which gas nozzles & injectors fit Ecoflam BLU TS 12000.1 LN PRE TL HT?
These fit Ecoflam BLU TS 12000.1 LN PRE TL HT: Ecoflam Gas nozzle 65321611; Ecoflam Gas nozzle 65321672. ↑
Which wiring, cables & electrical components fit Ecoflam BLU TS 12000.1 LN PRE TL HT?
These fit Ecoflam BLU TS 12000.1 LN PRE TL HT: Ecoflam Indicator lamp 65324100; Elco Contactor AEG LS22 K.00 E 65323134. ↑
Which blast tubes & combustion heads fit Ecoflam BLU TS 12000.1 LN PRE TL HT?
These fit Ecoflam BLU TS 12000.1 LN PRE TL HT: Elco Combustion Head 65325366. ↑
Which boiler components fit Ecoflam BLU TS 12000.1 LN PRE TL HT?
These fit Ecoflam BLU TS 12000.1 LN PRE TL HT: Ecoflam Sight Glass 65320487. ↑
Which gas valves fit Ecoflam BLU TS 12000.1 LN PRE TL HT?
These fit Ecoflam BLU TS 12000.1 LN PRE TL HT: Elco Gas Solenoid Valve 65324722. ↑
