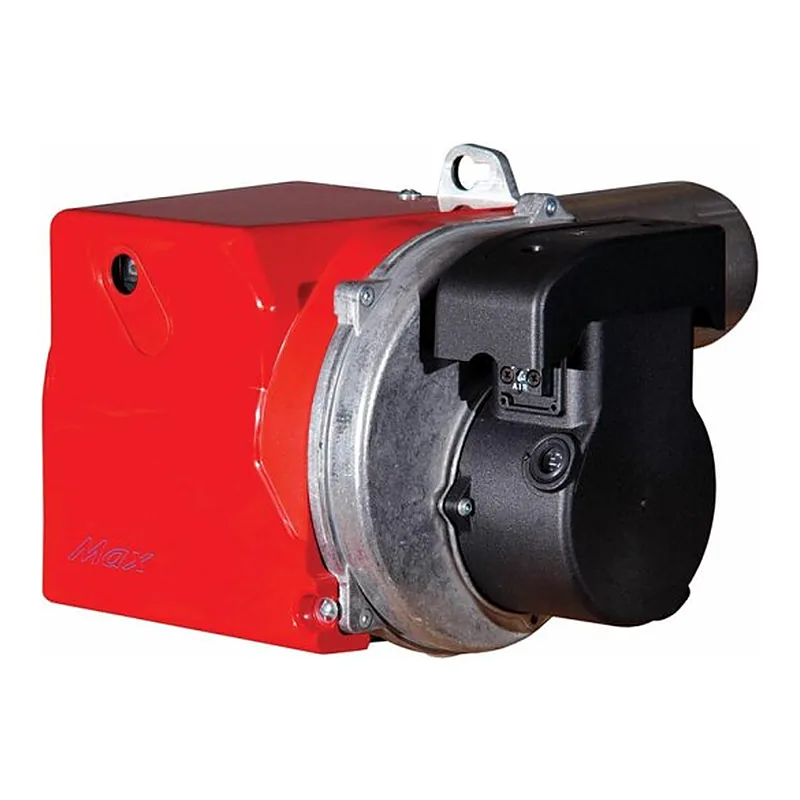

Ecoflam MAX 1 TW TC — oil burner, photo 1

Ecoflam MAX 1 TW TC — spare parts

Fuel
Oil
Output
17.6–41.4 kW
Parts
9
Versions
2

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Ecoflam MAX 1 TW TC · 2

Burner pipes, flanges & connections for Ecoflam MAX 1 TW TC · 2

Motors for Ecoflam MAX 1 TW TC · 2

Nozzle adapters for Ecoflam MAX 1 TW TC · 2

Impellers for Ecoflam MAX 1 TW TC · 1

Specifications

FuelOil
Output17.6–41.4 kW
Firing stagesSingle-stage
Fan motor power75 W
Supply voltage220 V
Power consumption300 W
Net weight7 kg
Protection class (IP)IP40
Flame tube length80 mm
Flame tube diameter89 mm
Flame tube typeshort
Back pressure (combustion chamber)0–3 mbar
Noise level60 dB
Operating temperature-10–60 °C
Overall dimensions23.3 x 28.8 x 20.45 cm
Delivery scopewith combustion head

Versions

3142709
3142709-01

Other versions of this seriesEcoflam MAX 1 · 3

Parts often differ between versions of one series: pick the version named on your rating plate.

  • MAX 1 TL 8 parts · 3120980
  • MAX 1 TW TC 9 parts · 3142709 · 3142709-01
  • MAX 1 TW TL 9 parts · 3142710 · 3142710-01

Questions about Ecoflam MAX 1 TW TC parts

Which burner components fit Ecoflam MAX 1 TW TC?

These fit Ecoflam MAX 1 TW TC: Ecoflam Air Intake Box 65320522; Ecoflam Equalizing Disc 65320760. ↑

Which burner pipes, flanges & connections fit Ecoflam MAX 1 TW TC?

These fit Ecoflam MAX 1 TW TC: Ecoflam Burner Flange 65320973; Ecoflam Copper Fuel Tube 65321508. ↑

Which motors fit Ecoflam MAX 1 TW TC?

These fit Ecoflam MAX 1 TW TC: Elco Electric Motor 65322868; Elco Electric Motor 65326747. ↑

Which nozzle adapters fit Ecoflam MAX 1 TW TC?

These fit Ecoflam MAX 1 TW TC: Ecoflam Nozzle Adapter Holder 65320695; Ecoflam Nozzle adapter 65320708. ↑

Which impellers fit Ecoflam MAX 1 TW TC?

These fit Ecoflam MAX 1 TW TC: Ecoflam Fan Impeller 65323826. ↑
