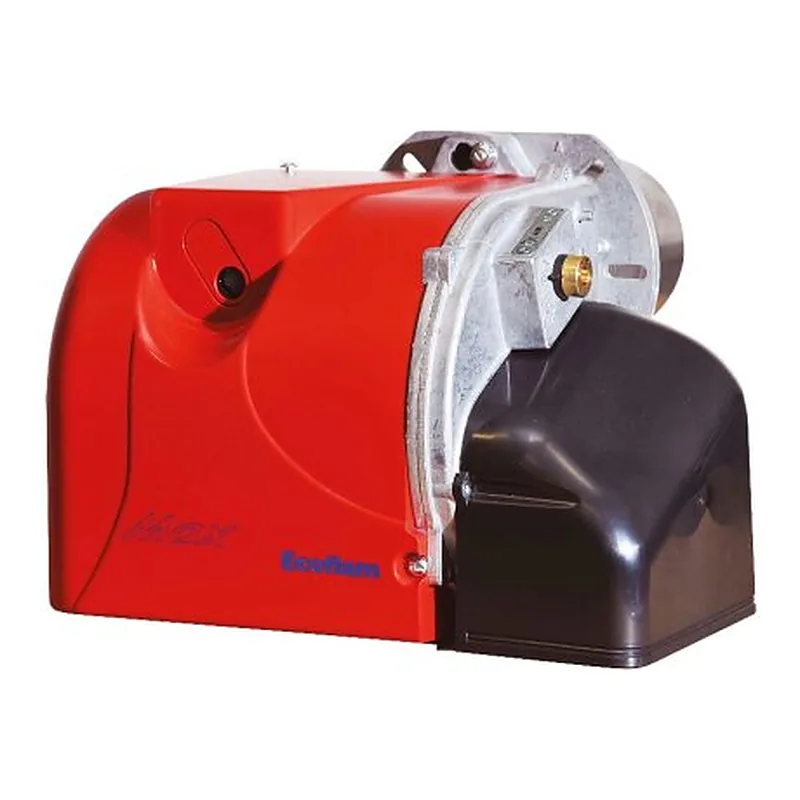

Ecoflam MAX 20 TW TC — spare parts
- Fuel
- Oil
- Output
- 86.4–237 kW
- Parts
- 11
- Versions
- 2
- Series
- MAX 20 · 4
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX 20 TW TC · 5
—on request
—on request
—on request
—on request
Blast tubes & combustion heads for Ecoflam MAX 20 TW TC · 1
—on request
Burner pipes, flanges & connections for Ecoflam MAX 20 TW TC · 1
—on request
Control box terminals for Ecoflam MAX 20 TW TC · 1
—on request
Flues & air ducts for Ecoflam MAX 20 TW TC · 1
—on request
Gas valves & coils for Ecoflam MAX 20 TW TC · 1
—on request
Wiring, cables & electrical components for Ecoflam MAX 20 TW TC · 1
—on request
Specifications
FuelOil
Output86.4–237 kW
Firing stagesSingle-stage
Fan motor power200 W
Supply voltage220 V
Power consumption400 W
Net weight15 kg
Protection class (IP)IP40
Flame tube length160 mm
Flame tube diameter125 mm
Flame tube typeshort
Back pressure (combustion chamber)0–3.6 mbar
Noise level70 dB
Operating temperature-10–60 °C
Overall dimensions43.6 x 39.2 x 26.3 cm
Delivery scopewith combustion head
Versions
3142731
3142731-01
Other versions of this seriesEcoflam MAX 20 · 4
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX 20 TC HT CV TW
10 parts · 3144315 - MAX 20 TL HT CV TW
11 parts · 3143829 · 3143829-01 - MAX 20 TW TC
11 parts · 3142731 · 3142731-01 - MAX 20 TW TL
10 parts · 3142732 · 3142732-01
Questions about Ecoflam MAX 20 TW TC parts
Which burner components fit Ecoflam MAX 20 TW TC?
These fit Ecoflam MAX 20 TW TC: Ecoflam Nozzle Rod 65320191; Ecoflam Nozzle Rod 65320192; Ecoflam Cuff fastening tube 65320195; Elco Fixing Rod 65320196; Elco Combustion Head 65322568. ↑
Which blast tubes & combustion heads fit Ecoflam MAX 20 TW TC?
These fit Ecoflam MAX 20 TW TC: Ecoflam Combustion Head 65322567. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX 20 TW TC?
These fit Ecoflam MAX 20 TW TC: Ecoflam Copper Fuel Tube 65321504. ↑
Which control box terminals fit Ecoflam MAX 20 TW TC?
These fit Ecoflam MAX 20 TW TC: Elco Control Unit Holder 65325251. ↑
Which flues & air ducts fit Ecoflam MAX 20 TW TC?
These fit Ecoflam MAX 20 TW TC: Ecoflam Fire Tube 65320397. ↑
Which gas valves & coils fit Ecoflam MAX 20 TW TC?
These fit Ecoflam MAX 20 TW TC: Elco Solenoid 65325612. ↑
