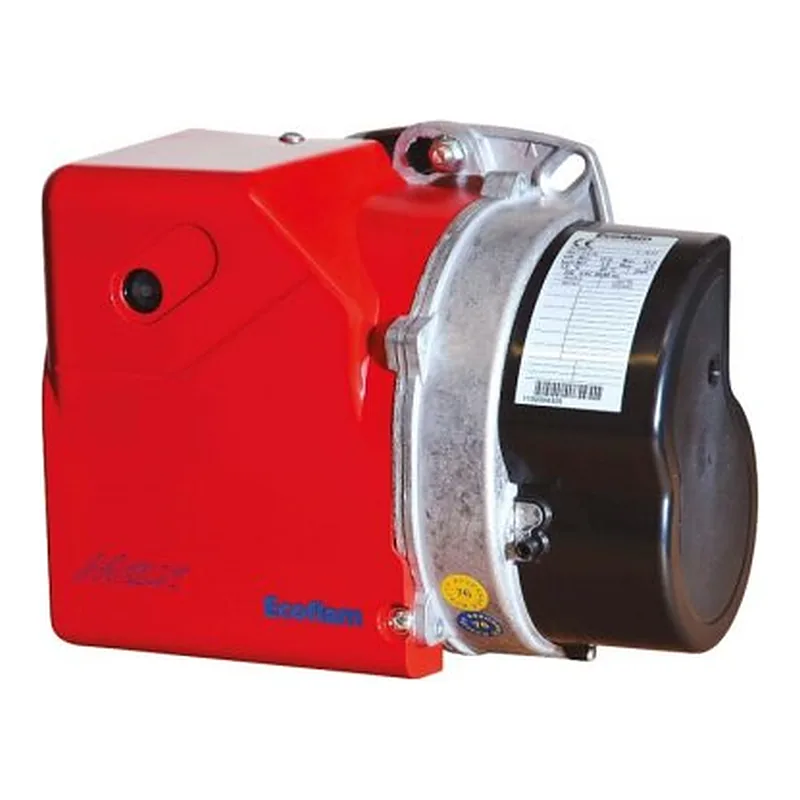

Ecoflam MAX 8 TL HT CV TW — spare parts
- Fuel
- Oil
- Output
- 47–105 kW
- Parts
- 10
- Factory code
- 3144064
- Series
- MAX 8 · 5
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX 8 TL HT CV TW · 6
—on request
—on request
—on request
—on request
—on request
Wiring, cables & electrical components for Ecoflam MAX 8 TL HT CV TW · 2
—on request
—on request
Boiler filters, gaskets & seals for Ecoflam MAX 8 TL HT CV TW · 1
—on request
Flues & air ducts for Ecoflam MAX 8 TL HT CV TW · 1
—on request
Specifications
FuelOil
Output47–105 kW
Firing stagesSingle-stage
Fan motor power90 W
Supply voltage220 V
Power consumption350 W
Net weight9.5 kg
Protection class (IP)IP40
Flame tube length145 mm
Flame tube diameter89 mm
Flame tube typeextended
Back pressure (combustion chamber)0–3.4 mbar
Noise level65 dB
Operating temperature-10–60 °C
Overall dimensions34.9 x 23.8 x 24.9 cm
Delivery scopewith combustion head
Additional featurescontinuous ventilation; high-temperature version
Other versions of this seriesEcoflam MAX 8 · 5
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX 8 TC HT CV SP TW
17 parts · 3144187 · 3144187-01 - MAX 8 TL HT CV SP TW
11 parts · 3144064-01 - MAX 8 TL HT CV TW
10 parts · 3144064 - MAX 8 TW TC
12 parts · 3142716 · 3142716-01 - MAX 8 TW TL
13 parts · 3142717 · 3142717-01
Questions about Ecoflam MAX 8 TL HT CV TW parts
Which burner components fit Ecoflam MAX 8 TL HT CV TW?
These fit Ecoflam MAX 8 TL HT CV TW: Ecoflam Air Intake Box 65320130; Ecoflam Fire Tube 65320298; Ecoflam Nozzle Rod 65322556; Elco Air Box Cover 65320518; Elco Swirler D64/18,5 65320726; Elco Baffle Plate 65320754. ↑
Which wiring, cables & electrical components fit Ecoflam MAX 8 TL HT CV TW?
These fit Ecoflam MAX 8 TL HT CV TW: Baltur Capacitor 95068; No brand Capacitor 65321848. ↑
Which boiler filters, gaskets & seals fit Ecoflam MAX 8 TL HT CV TW?
These fit Ecoflam MAX 8 TL HT CV TW: Elco Ring Gasket 65321065. ↑
Which flues & air ducts fit Ecoflam MAX 8 TL HT CV TW?
These fit Ecoflam MAX 8 TL HT CV TW: Ecoflam Fire Tube 65320299. ↑
