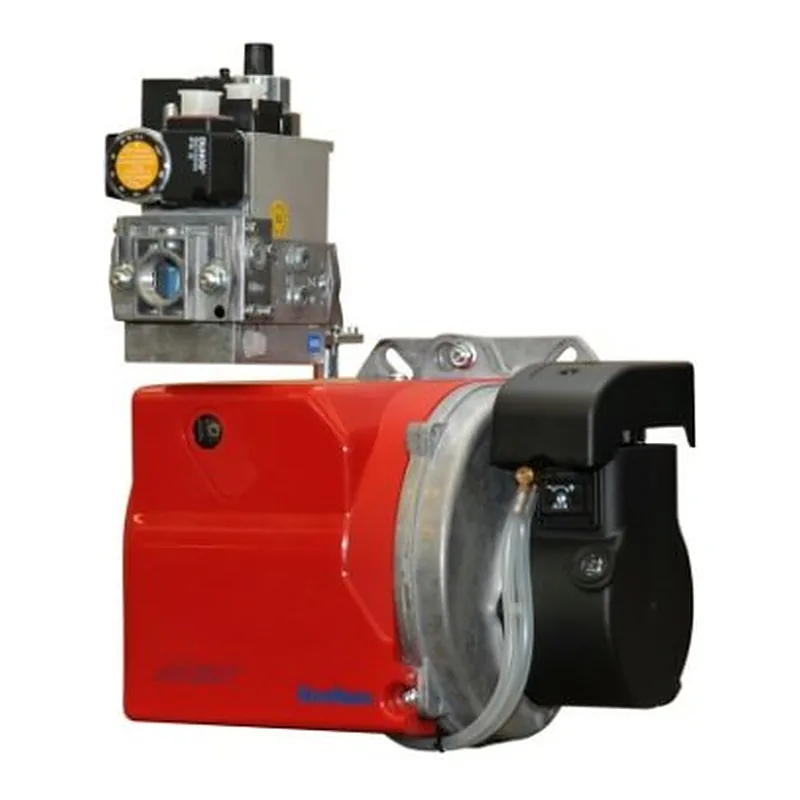

Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 — spare parts
- Fuel
- Gas
- Output
- 49–108 kW
- Parts
- 12
- Factory code
- 3142746-3123944
- Series
- MAX GAS 105 · 16
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 · 5
—on request
—on request
—on request
—on request
Burners for Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 · 2
—on request
—on request
Motors for Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 · 2
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 · 1
—on request
Control box terminals for Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 · 1
—on request
Impellers for Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 · 1
—on request
Specifications
FuelGas
Output49–108 kW
Gas connectionRp 1/2"
Firing stagesSingle-stage
Fan motor power75 W
Supply voltage220 V
Power consumption190 W
Net weight9.5 kg
Protection class (IP)IP40
Flame tube length220 mm
Flame tube diameter89 mm
Flame tube typeextended
Back pressure (combustion chamber)0–3.5 mbar
Gas consumption4.93–11.21 m³/h
Gas train pressure15–45 mbar
Noise level65 dB
Operating temperature-10–60 °C
Overall dimensions42.4 x 31.7 x 20.9 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MAX GAS 105 · 16
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 105 E PR TC
12 parts · 3146316 - MAX GAS 105 E PR TL
12 parts · 3146317 - MAX GAS 105 LN P TC HT TW CV
12 parts · 3144392 - MAX GAS 105 LN P TC HT TW CV MBDLE403
12 parts · 3144392-3123944 - MAX GAS 105 LN P TC TW MB-DLE 403
11 parts · 3142745-3123944 - MAX GAS 105 LN P TC TW MB-DLE 405
11 parts · 3142745-3123560 - MAX GAS 105 LN P TC TW MBC 65 DLE
11 parts · 3142745-3141885-3122301 - MAX GAS 105 LN P TC TW MBC 120 DLE
11 parts · 3142745-3141886 - MAX GAS 105 LN P TL GN SR TW
12 parts · 3142746 - MAX GAS 105 LN P TL HT TW CV
12 parts · 3144188 - MAX GAS 105 LN P TL HT TW CV MBDLE403
12 parts · 3144188-3123944 - MAX GAS 105 LN P TL TW MB-DLE 403
12 parts · 3142746-3123944 - MAX GAS 105 LN P TL TW MB-DLE 405
12 parts · 3142746-3123560 - MAX GAS 105 LN P TL TW MBC 65 DLE
12 parts · 3142746-3141885-3122301 - MAX GAS 105 LN P TL TW MBC 120 DLE
12 parts · 3142746-3141886 - MAX GAS 105 P TC
11 parts · 3142745
Questions about Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403 parts
Which burner components fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403?
These fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403: Ecoflam Air Intake Box 65320130; Ecoflam Diffuser 65321570; Ecoflam Air Pressure Fitting 65321974; Elco Air Box Cover 65320518; Elco Protective cover 65320663. ↑
Which burners fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403?
These fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403: Ecoflam Burner Automation Base 65320092; Ecoflam Burner Housing 65320602. ↑
Which motors fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403?
These fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403: Elco Motor 65322867; Elco Electric Motor 65322868. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403?
These fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403: Ecoflam Gas Elbow 65321530. ↑
Which control box terminals fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403?
These fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403: No brand Distribution block 65321334. ↑
Which impellers fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403?
These fit Ecoflam MAX GAS 105 LN P TL TW MB-DLE 403: Ecoflam Fan Impeller 65321770. ↑
