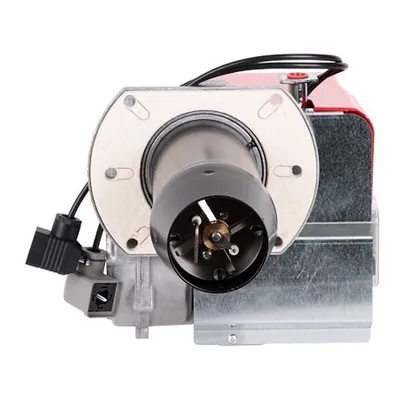

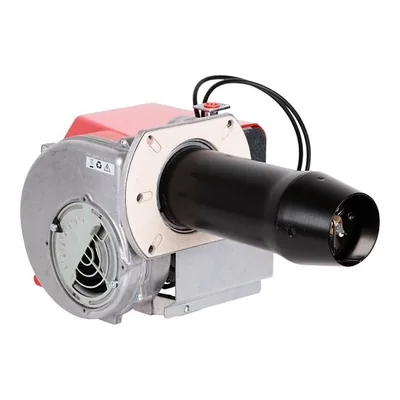

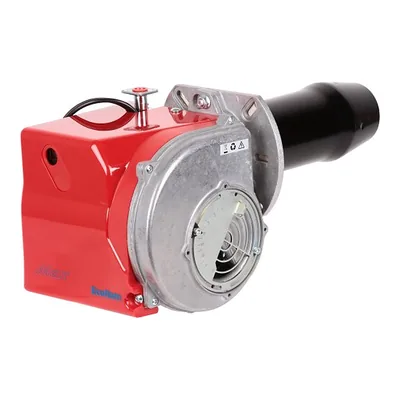

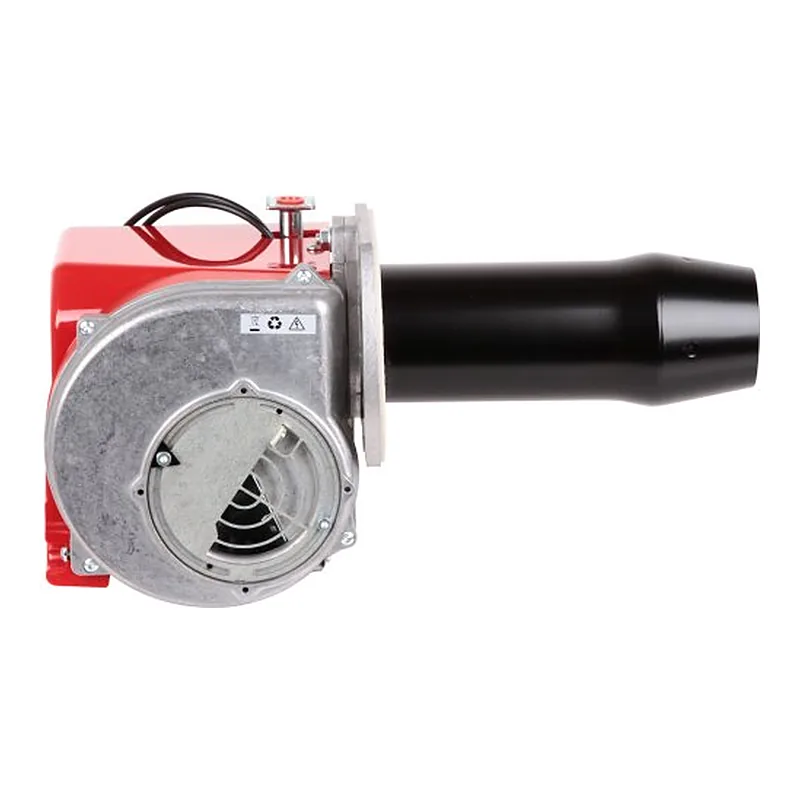

Ecoflam MAX GAS 120 P TL HT CV — spare parts
- Fuel
- Gas
- Output
- 49–120 kW
- Parts
- 12
- Factory code
- 3144067
- Series
- MAX GAS 120 · 13
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 120 P TL HT CV · 4
—on request
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Burners for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Flues & air ducts for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Ignition cables and connectors for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Ignition components for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Impellers for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Ionization & ignition electrodes for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
Motors for Ecoflam MAX GAS 120 P TL HT CV · 1
—on request
What is inside Ecoflam MAX GAS 120 P TL HT CV
Components named in the manufacturer's documentation.
- 1-Pole Electronic
- ARISTON E-BCU GAS CV
Specifications
FuelGas
Output49–120 kW
Gas connectionRp 1/2"
Firing stagesSingle-stage
Fan motor power75 W
Supply voltage220 V
Power consumption190 W
Net weight8 kg
Protection class (IP)IP40
Flame tube length240 mm
Flame tube diameter98 mm
Flame tube typeextended
Back pressure (combustion chamber)0–3.5 mbar
Gas consumption4.93–12.07 m³/h
Noise level65 dB
Operating temperature-10–60 °C
Overall dimensions44.4 x 25.2 x 20.9 cm
Delivery scopewith combustion head, without gas train
Additional featurescontinuous ventilation; high-temperature version
Other versions of this seriesEcoflam MAX GAS 120 · 13
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 120 E PR TC
11 parts · 3146320 - MAX GAS 120 E PR TL
11 parts · 3146321 - MAX GAS 120 LN P CV HT TC TW
12 parts · 3144066 · 3144066-3123944 - MAX GAS 120 LN PAB TC MET.SR
11 parts · 3123954 · 3123954-3123960-3122301 - MAX GAS 120 P TC
11 parts · 3142747 - MAX GAS 120 P TC LN TW MB-DLE 403
11 parts · 3142747-3123944 - MAX GAS 120 P TC LN TW MB-DLE 405
11 parts · 3142747-3123560 - MAX GAS 120 P TC LN TW MBC 65 DLE
11 parts · 3142747-3141885-3122301 - MAX GAS 120 P TC LN TW MBC 120 DLE
11 parts · 3142747-3141886 - MAX GAS 120 P TL HT CV
12 parts · 3144067 - MAX GAS 120 P TL HT CV MBDLE403
12 parts · 3144067-3123944 - MAX GAS 120 PAB LN TL MET.SR
11 parts · 3123955 - MAX GAS 120 PR TL MET
11 parts · 3122492
Questions about Ecoflam MAX GAS 120 P TL HT CV parts
Which burner components fit Ecoflam MAX GAS 120 P TL HT CV?
These fit Ecoflam MAX GAS 120 P TL HT CV: Ecoflam Equalizing Disc 65320761; Ecoflam Air damper 65321213; Ecoflam Diffuser 65325238; Elco Combustion Head 65324794. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 120 P TL HT CV?
These fit Ecoflam MAX GAS 120 P TL HT CV: Ecoflam Gas Elbow 65321530. ↑
Which burners fit Ecoflam MAX GAS 120 P TL HT CV?
These fit Ecoflam MAX GAS 120 P TL HT CV: Ecoflam Burner Housing 65320602. ↑
Which flues & air ducts fit Ecoflam MAX GAS 120 P TL HT CV?
These fit Ecoflam MAX GAS 120 P TL HT CV: Ecoflam Fire Tube 65320318. ↑
Which ignition cables and connectors fit Ecoflam MAX GAS 120 P TL HT CV?
These fit Ecoflam MAX GAS 120 P TL HT CV: Ecoflam Ionization Cable 65325261. ↑
Which ignition components fit Ecoflam MAX GAS 120 P TL HT CV?
These fit Ecoflam MAX GAS 120 P TL HT CV: Ecoflam Spark Needle 65325240. ↑
