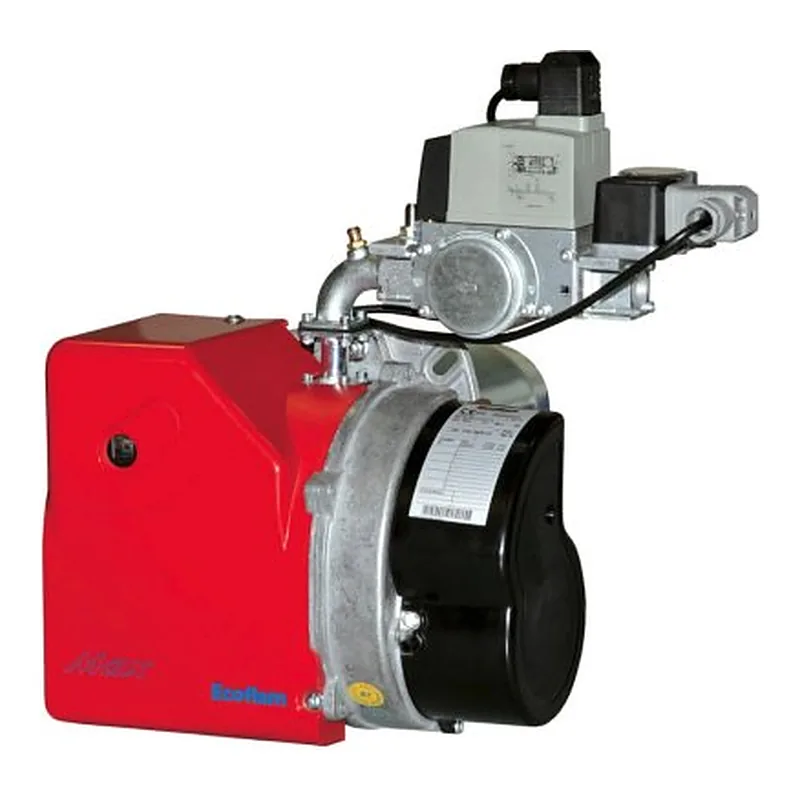

Ecoflam MAX GAS 350 PAB TL — spare parts
- Fuel
- Gas
- Output
- 100–350 kW
- Parts
- 12
- Factory code
- 3142286
- Series
- MAX GAS 350 · 17
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 350 PAB TL · 7
—on request
—on request
—on request
—on request
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 350 PAB TL · 4
—on request
—on request
—on request
—on request
Gas nozzles & injectors for Ecoflam MAX GAS 350 PAB TL · 1
—on request
Specifications
FuelGas
Output100–350 kW
Firing stagesTwo-stage
Fan motor power300 W
Supply voltage220 V
Power consumption600 W
Net weight19.6 kg
Protection class (IP)IP40
Flame tube length335 mm
Flame tube diameter157 mm
Flame tube typeextended
Back pressure (combustion chamber)0–6 mbar
Gas consumption10.03–35.12 m³/h
Noise level73 dB
Operating temperature-10–60 °C
Overall dimensions83.5 x 51 x 35.8 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAX GAS 350 · 17
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 350 LN PAB TL SGT
12 parts · 3143288 - MAX GAS 350 PAB TC
12 parts · 3142285 - MAX GAS 350 PAB TC MB-DLE 407 350/500
12 parts · 3142285-3142392-3142431 - MAX GAS 350 PAB TC MB-DLE 410 350/500
12 parts · 3142285-3142665 - MAX GAS 350 PAB TC MB-DLE 412 350/500
12 parts · 3142285-3142295 - MAX GAS 350 PAB TC MB-DLE 415 350/500
12 parts · 3142285-3142296 - MAX GAS 350 PAB TL
12 parts · 3142286 - MAX GAS 350 PAB TL MB-DLE 407 350/500
12 parts · 3142286-3142392-3142431 - MAX GAS 350 PAB TL MB-DLE 410 350/500
12 parts · 3142286-3142665 - MAX GAS 350 PAB TL MB-DLE 412 350/500
12 parts · 3142286-3142295 - MAX GAS 350 PAB TL MB-DLE 415 350/500
12 parts · 3142286-3142296 - MAX GAS 350 PR MD TC MET SR
14 parts · 3142287
All 17 versions
- MAX GAS 350 LN P TC SGT
12 parts · 3143283 - MAX GAS 350 LN P TL SGT
12 parts · 3143284 - MAX GAS 350 LN PAB TC SGT
12 parts · 3143287 - MAX GAS 350 LN PAB TL SGT
12 parts · 3143288 - MAX GAS 350 PAB TC
12 parts · 3142285 - MAX GAS 350 PAB TC MB-DLE 407 350/500
12 parts · 3142285-3142392-3142431 - MAX GAS 350 PAB TC MB-DLE 410 350/500
12 parts · 3142285-3142665 - MAX GAS 350 PAB TC MB-DLE 412 350/500
12 parts · 3142285-3142295 - MAX GAS 350 PAB TC MB-DLE 415 350/500
12 parts · 3142285-3142296 - MAX GAS 350 PAB TL
12 parts · 3142286 - MAX GAS 350 PAB TL MB-DLE 407 350/500
12 parts · 3142286-3142392-3142431 - MAX GAS 350 PAB TL MB-DLE 410 350/500
12 parts · 3142286-3142665 - MAX GAS 350 PAB TL MB-DLE 412 350/500
12 parts · 3142286-3142295 - MAX GAS 350 PAB TL MB-DLE 415 350/500
12 parts · 3142286-3142296 - MAX GAS 350 PR MD TC MET SR
14 parts · 3142287 - MAX GAS 350 PR-MD TL MET SR
14 parts · 3142288 - MAX GAS 350 PTC
12 parts · 3142283
Questions about Ecoflam MAX GAS 350 PAB TL parts
Which burner components fit Ecoflam MAX GAS 350 PAB TL?
These fit Ecoflam MAX GAS 350 PAB TL: Ecoflam Air Pressure Nipple 65323053; Ecoflam Gas Head Cover 65324539; Ecoflam Adjustment Rod 65324693; Ecoflam Gas Head 65324694; Ecoflam Fire tube 65324706; Ecoflam Equalizing Disc 65324708; Ecoflam Diffuser 65324717. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 350 PAB TL?
These fit Ecoflam MAX GAS 350 PAB TL: Ecoflam Gas Elbow 65324702; Ecoflam Gas pipe 65324711; Ecoflam Gas pipe 65324712; Ecoflam Nipple Set 65324718. ↑
Which gas nozzles & injectors fit Ecoflam MAX GAS 350 PAB TL?
These fit Ecoflam MAX GAS 350 PAB TL: Elco Gas nozzle 65324715. ↑
