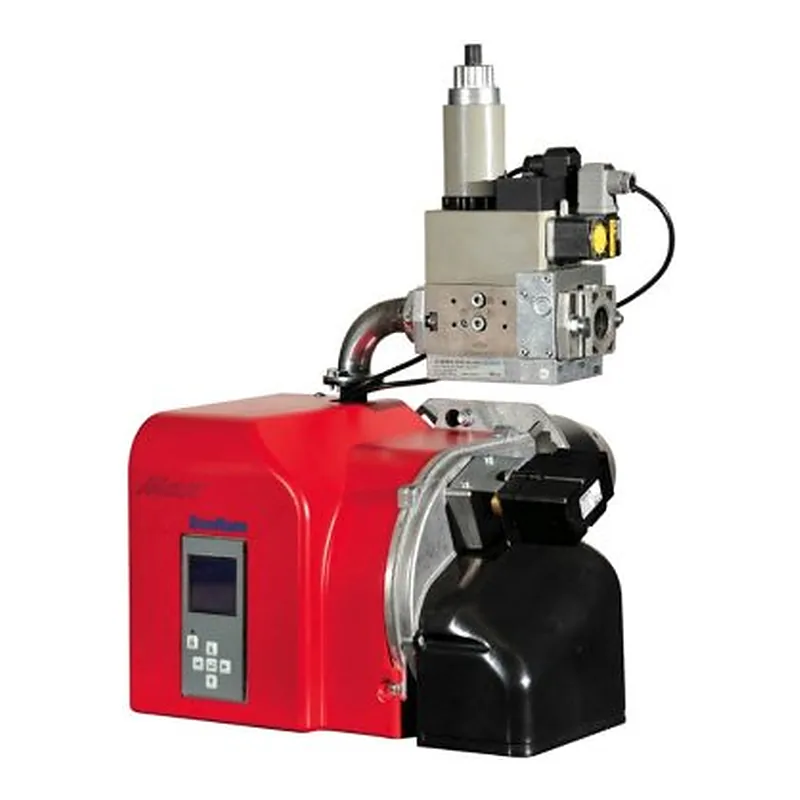

Ecoflam MAX GAS 500 PAB TC — spare parts
- Fuel
- Gas
- Output
- 120–500 kW
- Parts
- 12
- Factory code
- 3142291
- Series
- MAX GAS 500 · 16
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 500 PAB TC · 7
—on request
—on request
—on request
—on request
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 500 PAB TC · 4
—on request
—on request
—on request
—on request
Gas nozzles & injectors for Ecoflam MAX GAS 500 PAB TC · 1
—on request
Specifications
FuelGas
Output120–500 kW
Firing stagesTwo-stage
Fan motor power550 W
Supply voltage220 V
Power consumption940 W
Net weight23.5 kg
Protection class (IP)IP40
Flame tube length175 mm
Flame tube diameter157 mm
Flame tube typeshort
Back pressure (combustion chamber)0–8 mbar
Gas consumption12.04–50.17 m³/h
Noise level73 dB
Operating temperature-10–60 °C
Overall dimensions83.5 x 51 x 35.8 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAX GAS 500 · 16
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 500 LN P TC SGT TW
12 parts · 3143285 - MAX GAS 500 LN P TL SGT TW
12 parts · 3143286 - MAX GAS 500 LN PAB TL
12 parts · 3142292 - MAX GAS 500 LN PAB TL MB-DLE 407 350/500
12 parts · 3142292-3142392-3142431 - MAX GAS 500 LN PAB TL MB-DLE 410 350/500
12 parts · 3142292-3142665 - MAX GAS 500 LN PAB TL MB-DLE 412 350/500
12 parts · 3142292-3142295 - MAX GAS 500 LN PAB TL MB-DLE 415 350/500
12 parts · 3142292-3142296 - MAX GAS 500 LN PAB TL SGT
12 parts · 3143290 - MAX GAS 500 PAB
12 parts · 3142289 - MAX GAS 500 PAB TC
12 parts · 3142291 - MAX GAS 500 PAB TC MB-DLE 407 350/500
12 parts · 3142291-3142392-3142431 - MAX GAS 500 PAB TC MB-DLE 410 350/500
12 parts · 3142291-3142665 - MAX GAS 500 PAB TC MB-DLE 412 350/500
12 parts · 3142291-3142295 - MAX GAS 500 PAB TC MB-DLE 415 350/500
12 parts · 3142291-3142296 - MAX GAS 500 PR MD TC MET SR
14 parts · 3142293 - MAX GAS 500 PR-MD TL MET SR
14 parts · 3142294
Questions about Ecoflam MAX GAS 500 PAB TC parts
Which burner components fit Ecoflam MAX GAS 500 PAB TC?
These fit Ecoflam MAX GAS 500 PAB TC: Ecoflam Air Pressure Nipple 65323053; Ecoflam Gas Head Cover 65324539; Ecoflam Adjustment Rod 65324693; Ecoflam Gas Head 65324694; Ecoflam Equalizing Disc 65324708; Ecoflam Diffuser 65324717; Elco Combustion Head 65324728. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 500 PAB TC?
These fit Ecoflam MAX GAS 500 PAB TC: Ecoflam Gas Elbow 65324702; Ecoflam Gas pipe 65324711; Ecoflam Gas pipe 65324712; Ecoflam Nipple Set 65324718. ↑
Which gas nozzles & injectors fit Ecoflam MAX GAS 500 PAB TC?
These fit Ecoflam MAX GAS 500 PAB TC: Elco Gas nozzle 65324715. ↑
