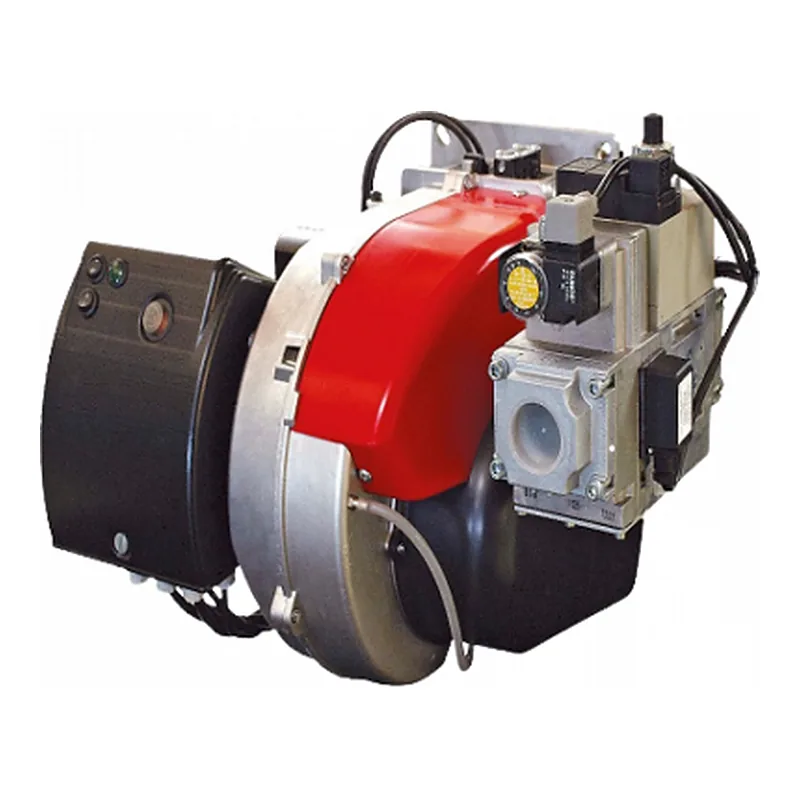

Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500 — spare parts
- Fuel
- Gas
- Output
- 200–700 kW
- Parts
- 11
- Factory code
- 3146346-3142295
- Series
- MAX GAS 700 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500 · 5
—on request
—on request
—on request
—on request
Blast tubes & combustion heads for Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500 · 2
—on request
—on request
Burner pipes, flanges & connections for Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500 · 2
—on request
—on request
Burners for Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500 · 2
—on request
—on request
Specifications
FuelGas
Output200–700 kW
Gas connectionRp 1 1/4"
Fan motor power750 W
Power consumption820 W
Net weight28 kg
Protection class (IP)IP40
Flame tube length390 mm
Flame tube diameter190 mm
Flame tube typeextended
Back pressure (combustion chamber)0–8 mbar
Gas consumption20–70.2 m³/h
Gas train pressure10.2–31 mbar
Noise level75 dB
Operating temperature-10–60 °C
Overall dimensions90 x 51 x 37.5 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAX GAS 700 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX GAS 700 LN PAB TL MB-DLE 415 350/500
11 parts · 3146309-3142296 - MAX GAS 700 LN PAB TL TW
12 parts · 3146307 - MAX GAS 700 LN PR TC
11 parts · 3146345 - MAX GAS 700 LN PR TC MB-DLE 407 350/500
11 parts · 3146345-3142392 - MAX GAS 700 LN PR TC MB-DLE 410 350/500
11 parts · 3146345-3142665 - MAX GAS 700 LN PR TC MB-DLE 412 350/500
11 parts · 3146345-3142295 - MAX GAS 700 LN PR TC MB-DLE 415 350/500
11 parts · 3146345-3142296 - MAX GAS 700 LN PR TL
11 parts · 3146346 - MAX GAS 700 LN PR TL MB-DLE 407 350/500
11 parts · 3146346-3142392 - MAX GAS 700 LN PR TL MB-DLE 410 350/500
11 parts · 3146346-3142665 - MAX GAS 700 LN PR TL MB-DLE 412 350/500
11 parts · 3146346-3142295 - MAX GAS 700 LN PR TL MB-DLE 415 350/500
11 parts · 3146346-3142296
All 24 versions
- MAX GAS 700 LN P TC TW
11 parts · 3146269 - MAX GAS 700 LN P TL TW
11 parts · 3146270 - MAX GAS 700 LN PAB TC
11 parts · 3146308 - MAX GAS 700 LN PAB TC MB-DLE 407 350/500
11 parts · 3146308-3142392 - MAX GAS 700 LN PAB TC MB-DLE 410 350/500
11 parts · 3146308-3142665 - MAX GAS 700 LN PAB TC MB-DLE 412 350/500
11 parts · 3146308-3142295 - MAX GAS 700 LN PAB TC MB-DLE 415 350/500
11 parts · 3146308-3142296 - MAX GAS 700 LN PAB TC TW
12 parts · 3146306 - MAX GAS 700 LN PAB TL
11 parts · 3146309 - MAX GAS 700 LN PAB TL MB-DLE 407 350/500
11 parts · 3146309-3142392 - MAX GAS 700 LN PAB TL MB-DLE 410 350/500
11 parts · 3146309-3142665 - MAX GAS 700 LN PAB TL MB-DLE 412 350/500
11 parts · 3146309-3142295 - MAX GAS 700 LN PAB TL MB-DLE 415 350/500
11 parts · 3146309-3142296 - MAX GAS 700 LN PAB TL TW
12 parts · 3146307 - MAX GAS 700 LN PR TC
11 parts · 3146345 - MAX GAS 700 LN PR TC MB-DLE 407 350/500
11 parts · 3146345-3142392 - MAX GAS 700 LN PR TC MB-DLE 410 350/500
11 parts · 3146345-3142665 - MAX GAS 700 LN PR TC MB-DLE 412 350/500
11 parts · 3146345-3142295 - MAX GAS 700 LN PR TC MB-DLE 415 350/500
11 parts · 3146345-3142296 - MAX GAS 700 LN PR TL
11 parts · 3146346 - MAX GAS 700 LN PR TL MB-DLE 407 350/500
11 parts · 3146346-3142392 - MAX GAS 700 LN PR TL MB-DLE 410 350/500
11 parts · 3146346-3142665 - MAX GAS 700 LN PR TL MB-DLE 412 350/500
11 parts · 3146346-3142295 - MAX GAS 700 LN PR TL MB-DLE 415 350/500
11 parts · 3146346-3142296
Questions about Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500 parts
Which burner components fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500?
These fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500: Ecoflam Fusible Link Nest 65322181; Ecoflam Air Pressure Nipple 65323053; Ecoflam Air Intake Box 65327632; Elco Cover Head 65326006; Elco Equalizing Disc 65327323. ↑
Which blast tubes & combustion heads fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500?
These fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500: Elco Combustion Head 65327324; Elco Combustion Head 65327325. ↑
Which burner pipes, flanges & connections fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500?
These fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500: Ecoflam Gas Elbow 65324702; Ecoflam Nipple Set 65324718. ↑
Which burners fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500?
These fit Ecoflam MAX GAS 700 LN PR TL MB-DLE 412 350/500: Ecoflam Burner Automation Base 65320092; Ecoflam Burner Housing 65324704. ↑
