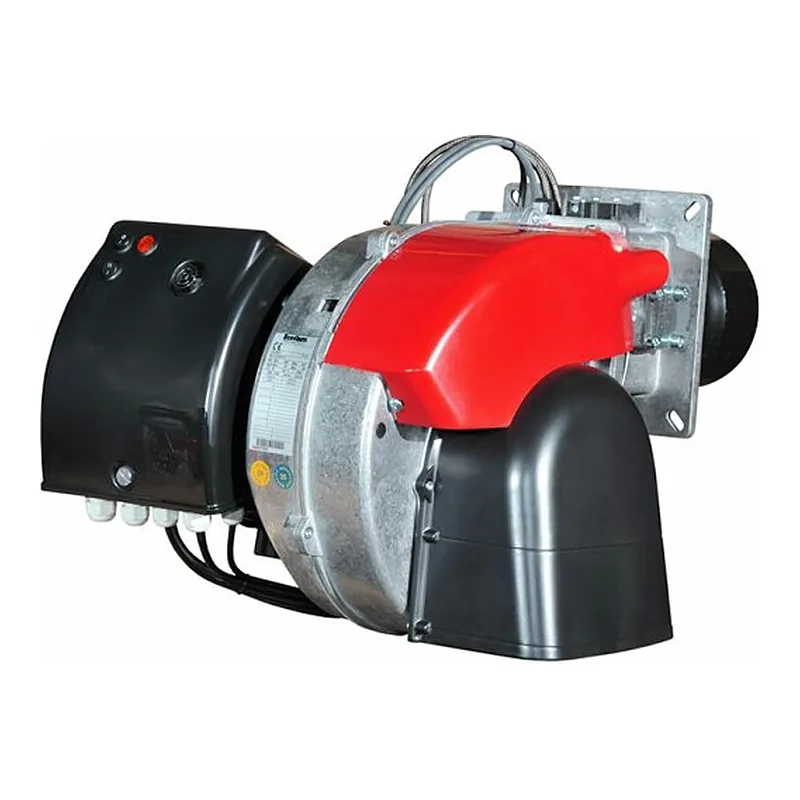

Ecoflam MAX P 12 AB HS TC LMO — spare parts
- Fuel
- Oil
- Output
- 60–130 kW
- Parts
- 12
- Versions
- 2
- Series
- MAX P 12 · 2
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MAX P 12 AB HS TC LMO · 7
—on request
—on request
—on request
—on request
—on request
—on request
Boiler filters, gaskets & seals for Ecoflam MAX P 12 AB HS TC LMO · 1
—on request
Gas valves & coils for Ecoflam MAX P 12 AB HS TC LMO · 1
—on request
Impellers for Ecoflam MAX P 12 AB HS TC LMO · 1
—on request
Oil filters, coils, tubes & hoses for Ecoflam MAX P 12 AB HS TC LMO · 1
—on request
Wiring, cables & electrical components for Ecoflam MAX P 12 AB HS TC LMO · 1
—on request
Specifications
FuelOil
Output60–130 kW
Firing stagesTwo-stage
Fan motor power130 W
Supply voltage220 V
Power consumption400 W
Net weight10 kg
Protection class (IP)IP40
Flame tube length100 mm
Flame tube diameter98 mm
Flame tube typeshort
Back pressure (combustion chamber)0–3.6 mbar
Noise level65 dB
Operating temperature-10–60 °C
Overall dimensions21.3 x 31.7 x 20.9 cm
Delivery scopewith combustion head
Versions
3146905
3146905-01
Other versions of this seriesEcoflam MAX P 12 · 2
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAX P 12 AB HS TC LMO
12 parts · 3146905 · 3146905-01 - MAX P 12 AB HS TL LMO
12 parts · 3146906 · 3146906-01
Questions about Ecoflam MAX P 12 AB HS TC LMO parts
Which burner components fit Ecoflam MAX P 12 AB HS TC LMO?
These fit Ecoflam MAX P 12 AB HS TC LMO: Ecoflam Air Intake Box 65320130; Ecoflam Nozzle Rod 65320187; Ecoflam Nozzle Rod 65320188; Ecoflam Nozzle Rod 65322558; Ecoflam Nozzle Rod 65322559; Elco Burner components 65320517; Elco Swirler D64/18,5 65320726. ↑
Which boiler filters, gaskets & seals fit Ecoflam MAX P 12 AB HS TC LMO?
These fit Ecoflam MAX P 12 AB HS TC LMO: Elco Ring Gasket 65321065. ↑
Which gas valves & coils fit Ecoflam MAX P 12 AB HS TC LMO?
These fit Ecoflam MAX P 12 AB HS TC LMO: Elco Solenoid 65325612. ↑
Which impellers fit Ecoflam MAX P 12 AB HS TC LMO?
These fit Ecoflam MAX P 12 AB HS TC LMO: Ecoflam Fan Impeller 65321770. ↑
Which oil filters, coils, tubes & hoses fit Ecoflam MAX P 12 AB HS TC LMO?
These fit Ecoflam MAX P 12 AB HS TC LMO: Ecoflam Liquid Fuel Hose 65323216. ↑
Which wiring, cables & electrical components fit Ecoflam MAX P 12 AB HS TC LMO?
These fit Ecoflam MAX P 12 AB HS TC LMO: Baltur Capacitor 95068. ↑
