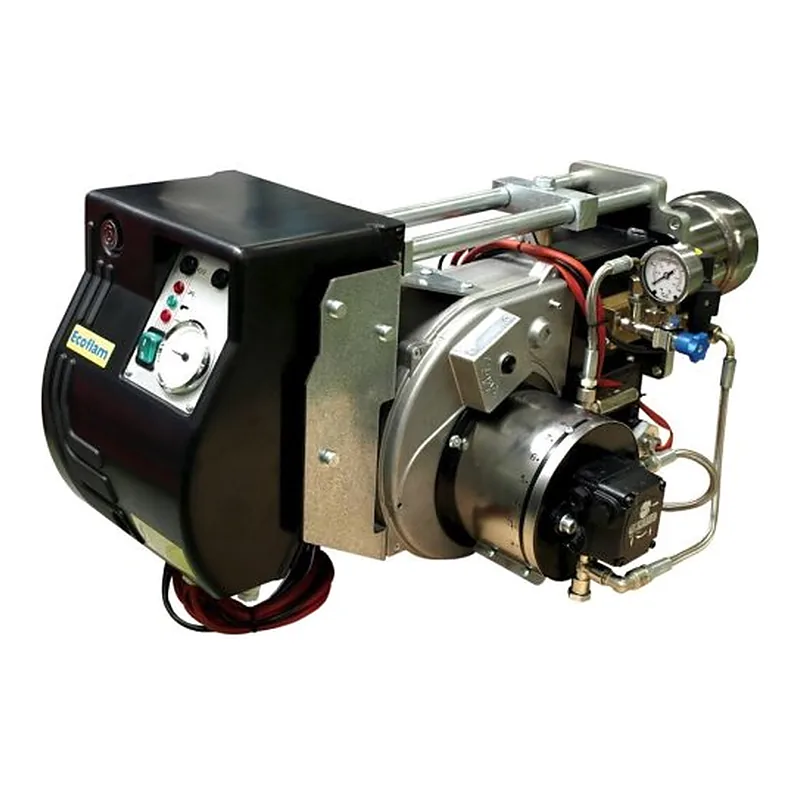

Ecoflam MAXFLAM 10 TC — spare parts
- Fuel
- Oil
- Output
- 68–136 kW
- Parts
- 11
- Factory code
- 3142594
- Series
- MAXFLAM 10 · 3
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Motors for Ecoflam MAXFLAM 10 TC · 4
—on request
—on request
—on request
Wiring, cables & electrical components for Ecoflam MAXFLAM 10 TC · 2
—on request
—on request
Blast tubes & combustion heads for Ecoflam MAXFLAM 10 TC · 1
—on request
Burner components for Ecoflam MAXFLAM 10 TC · 1
—on request
Gas valves for Ecoflam MAXFLAM 10 TC · 1
—on request
Ionization & ignition electrodes for Ecoflam MAXFLAM 10 TC · 1
—on request
Oil pumps for Ecoflam MAXFLAM 10 TC · 1
—on request
Specifications
FuelOil
Output68–136 kW
Firing stagesSingle-stage
Fan motor power450 W
Power consumption2300 W
Net weight53 kg
Protection class (IP)IP40
Flame tube length205 mm
Flame tube diameter130 mm
Flame tube typeshort
Back pressure (combustion chamber)0–2 mbar
Noise level74 dB
Operating temperature-10–60 °C
Overall dimensions74 x 52 x 26.6 cm
Delivery scopewith combustion head
Other versions of this seriesEcoflam MAXFLAM 10 · 3
Parts often differ between versions of one series: pick the version named on your rating plate.
- MAXFLAM 10 TC
11 parts · 3142594 - MAXFLAM 10 TL
11 parts · 3143325 - MAXFLAM 10 TL CV
11 parts · 3146380
Questions about Ecoflam MAXFLAM 10 TC parts
Which motors fit Ecoflam MAXFLAM 10 TC?
These fit Ecoflam MAXFLAM 10 TC: Ecoflam Electric Motor Clutch 65324200; Ecoflam Electric Motor Clutch 65324204; Ecoflam Electric Motor Clutch 65324205; Elco Electric Motor 65324202. ↑
Which wiring, cables & electrical components fit Ecoflam MAXFLAM 10 TC?
These fit Ecoflam MAXFLAM 10 TC: AEG Minicontactor LS 05.10-50 65323132; Cogema Network Interference Filter 951409. ↑
Which blast tubes & combustion heads fit Ecoflam MAXFLAM 10 TC?
These fit Ecoflam MAXFLAM 10 TC: Ecoflam Blast tube head 65324189. ↑
Which burner components fit Ecoflam MAXFLAM 10 TC?
These fit Ecoflam MAXFLAM 10 TC: Ecoflam Tube Filter 65325059. ↑
Which gas valves fit Ecoflam MAXFLAM 10 TC?
These fit Ecoflam MAXFLAM 10 TC: Riello Solenoid Valve 3012520. ↑
Which ionization & ignition electrodes fit Ecoflam MAXFLAM 10 TC?
These fit Ecoflam MAXFLAM 10 TC: Ecoflam Ignition Electrode 65320952. ↑
