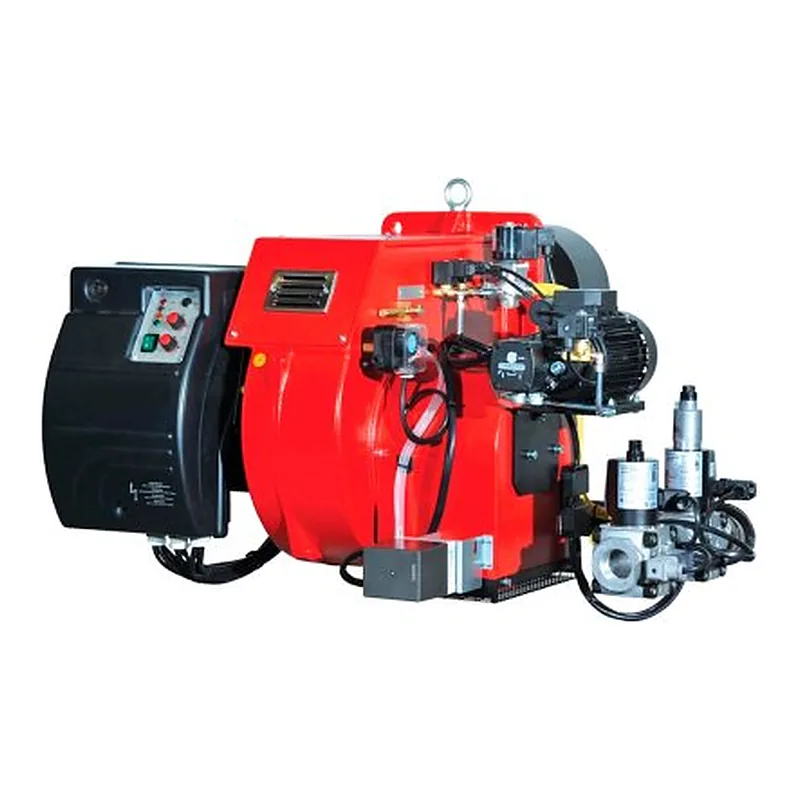

Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 — burner, photo 1

Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 — spare parts

Output
342–1770 kW
Parts
12
Factory code
3142638-3123860-3121384-3142075

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 4

Actuators for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Boiler components for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Burners for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Control devices for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Flame sensors for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Gas valves for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Motors for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Wiring, cables & electrical components for Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 · 1

Specifications

Output342–1770 kW
Gas connectionRp 2"
Fan motor power3000 W
Protection class (IP)IP55
Flame tube length290 mm
Flame tube diameter250 mm
Flame tube typeshort
Back pressure (combustion chamber)0–10 mbar
Gas consumption34–178 m³/h
Gas train pressure14–52.5 mbar
Operating temperature-10–60 °C
Overall dimensions106 x 95 x 54.5 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesEcoflam MULTICALOR 170.1 · 20

Parts often differ between versions of one series: pick the version named on your rating plate.

All 20 versions

Questions about Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503 parts

Which burner components fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503?

These fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503: Ecoflam Adjustment Rod 65320245; Ecoflam Fusible Link Nest 65322181; Ecoflam Gas Damper 65325510; Ecoflam Diffuser 65325795. ↑

Which actuators fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503?

These fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503: Elco Actuator 65322896. ↑

Which boiler components fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503?

These fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503: Ecoflam Sight Glass 65320487. ↑

Which burners fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503?

These fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503: Ecoflam Burner Automation Base 65320092. ↑

Which control devices fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503?

These fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503: Elco Time Relay 65324212. ↑

Which flame sensors fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503?

These fit Ecoflam MULTICALOR 170.1 PR-AB TC VGD 20.503: Elco Flame Signal Amplifier 65113521. ↑
