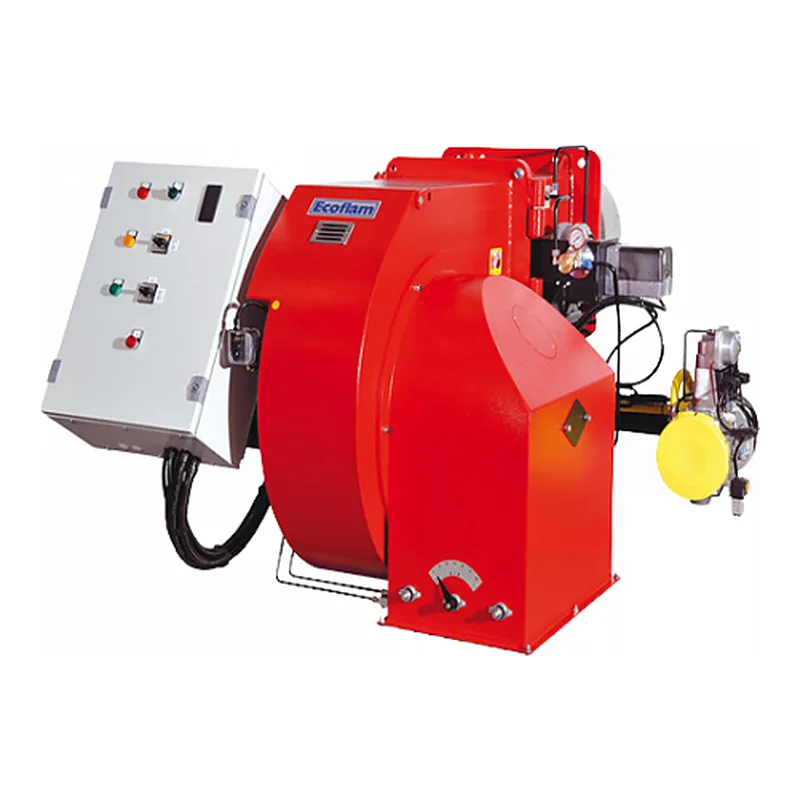

Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 — spare parts
- Output
- 630–3000 kW
- Parts
- 12
- Factory code
- 3145145-3145790-3142075-3121384
- Series
- MULTICALOR 300.1 · 20
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 4
—on request
—on request
—on request
Boiler components for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Gas pressure regulators for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Gas valves for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Gas valves & coils for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Oil pumps for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Sensors and switches for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Wiring, cables & electrical components for Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 · 1
—on request
Specifications
Output630–3000 kW
Gas connectionRp 2"
Fan motor power5500 W
Power consumption8250 W
Protection class (IP)IP55
Flame tube length530 mm
Flame tube diameter290 mm
Flame tube typeextended
Back pressure (combustion chamber)0–13 mbar
Gas consumption63.2–301 m³/h
Gas train pressure14–72.5 mbar
Noise level87.3 dB
Operating temperature-10–60 °C
Overall dimensions143 x 123 x 61.6 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MULTICALOR 300.1 · 20
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTICALOR 300.1 PR TL VGD 40.080
12 parts · 3146046-3146006-3145815-3142088 - MULTICALOR 300.1 PR TL VGD 40.100
12 parts · 3146046-3146007-3145820-3142205 - MULTICALOR 300.1 PRE TC
12 parts · 3145144 - MULTICALOR 300.1 PRE TC VGD 20.503
12 parts · 3145144-3145790-3142075-3121384 - MULTICALOR 300.1 PRE TC VGD 40.065
12 parts · 3145144-3145793-3145800-3124111 - MULTICALOR 300.1 PRE TC VGD 40.080
12 parts · 3145144-3145814-3145815-3142088 - MULTICALOR 300.1 PRE TC VGD 40.100
12 parts · 3145144-3145817-3145820-3142205 - MULTICALOR 300.1 PRE TL
12 parts · 3145145 - MULTICALOR 300.1 PRE TL VGD 20.503
12 parts · 3145145-3145790-3142075-3121384 - MULTICALOR 300.1 PRE TL VGD 40.065
12 parts · 3145145-3145793-3145800-3124111 - MULTICALOR 300.1 PRE TL VGD 40.080
12 parts · 3145145-3145814-3145815-3142088 - MULTICALOR 300.1 PRE TL VGD 40.100
12 parts · 3145145-3145817-3142205-3145820
All 20 versions
- MULTICALOR 300.1 PR TC
12 parts · 3147257 - MULTICALOR 300.1 PR TC VGD 20.503
12 parts · 3147257-3146004-3142075-3121384 - MULTICALOR 300.1 PR TC VGD 40.065
12 parts · 3147257-3146005-3145800-3124111 - MULTICALOR 300.1 PR TC VGD 40.080
12 parts · 3147257-3146006-3145815-3142088 - MULTICALOR 300.1 PR TC VGD 40.100
12 parts · 3147257-3146007-3142205-3145820 - MULTICALOR 300.1 PR TL
12 parts · 3146046 - MULTICALOR 300.1 PR TL VGD 20.503
12 parts · 3146046-3146004-3142075-3121384 - MULTICALOR 300.1 PR TL VGD 40.065
12 parts · 3146046-3146005-3145800-3124111 - MULTICALOR 300.1 PR TL VGD 40.080
12 parts · 3146046-3146006-3145815-3142088 - MULTICALOR 300.1 PR TL VGD 40.100
12 parts · 3146046-3146007-3145820-3142205 - MULTICALOR 300.1 PRE TC
12 parts · 3145144 - MULTICALOR 300.1 PRE TC VGD 20.503
12 parts · 3145144-3145790-3142075-3121384 - MULTICALOR 300.1 PRE TC VGD 40.065
12 parts · 3145144-3145793-3145800-3124111 - MULTICALOR 300.1 PRE TC VGD 40.080
12 parts · 3145144-3145814-3145815-3142088 - MULTICALOR 300.1 PRE TC VGD 40.100
12 parts · 3145144-3145817-3145820-3142205 - MULTICALOR 300.1 PRE TL
12 parts · 3145145 - MULTICALOR 300.1 PRE TL VGD 20.503
12 parts · 3145145-3145790-3142075-3121384 - MULTICALOR 300.1 PRE TL VGD 40.065
12 parts · 3145145-3145793-3145800-3124111 - MULTICALOR 300.1 PRE TL VGD 40.080
12 parts · 3145145-3145814-3145815-3142088 - MULTICALOR 300.1 PRE TL VGD 40.100
12 parts · 3145145-3145817-3142205-3145820
Questions about Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503 parts
Which burner components fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503?
These fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503: Ecoflam Adjustment Rod 65320242; Ecoflam Adjustment Rod 65320243; Ecoflam Equalizing Disc 65324157; Ecoflam Gas Damper 65325510. ↑
Which boiler components fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503?
These fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503?
These fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503: Ecoflam Flange Gasket 65321125. ↑
Which gas pressure regulators fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503?
These fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503: Ecoflam Gas pressure regulator 65322350. ↑
Which gas valves fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503?
These fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503: Elco Gas Solenoid Valve 65323595. ↑
Which gas valves & coils fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503?
These fit Ecoflam MULTICALOR 300.1 PRE TL VGD 20.503: Elco Solenoid Coil 65323810. ↑
