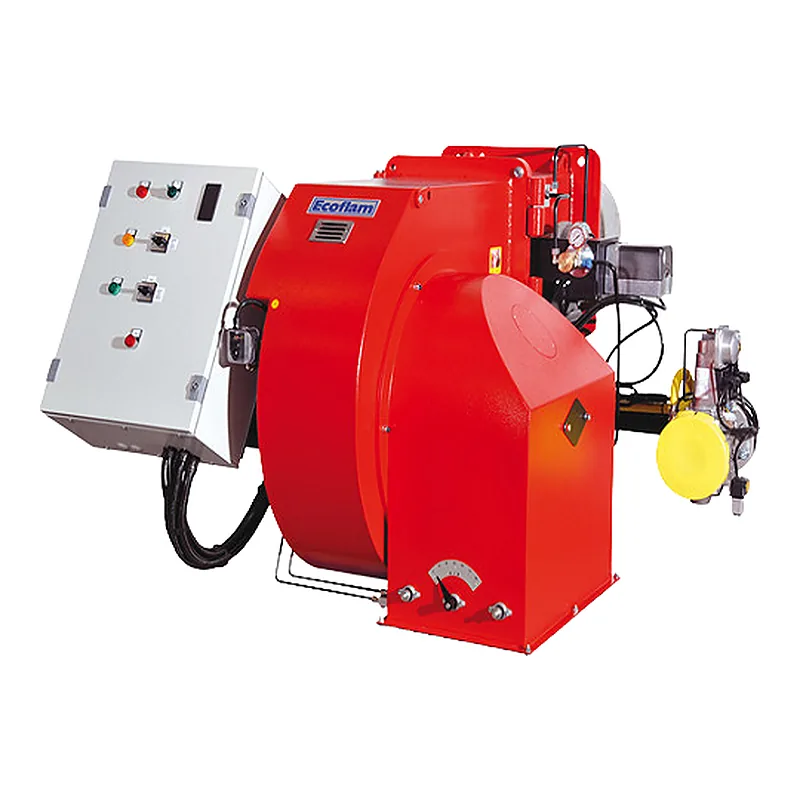

Ecoflam MULTICALOR 500.1 PR TL — spare parts
- Output
- 1200–5000 kW
- Parts
- 12
- Factory code
- 3147261
- Series
- MULTICALOR 500.1 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MULTICALOR 500.1 PR TL · 3
—on request
—on request
Boiler components for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Boiler filters, gaskets & seals for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Gas pressure regulators for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Gas valves for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Gas valves & coils for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Impellers for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Motors for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Oil pumps for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Sensors and switches for Ecoflam MULTICALOR 500.1 PR TL · 1
—on request
Specifications
Output1200–5000 kW
Fan motor power11000 W
Power consumption13500 W
Protection class (IP)IP55
Flame tube length555 mm
Flame tube diameter320 mm
Flame tube typeextended
Back pressure (combustion chamber)0–18 mbar
Gas consumption120.4–501.7 m³/h
Noise level91.4 dB
Operating temperature-10–60 °C
Overall dimensions155.5 x 120 x 73 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam MULTICALOR 500.1 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTICALOR 500.1 PR TC
12 parts · 3147260 - MULTICALOR 500.1 PR TC VGD 20.503
12 parts · 3147260-3146004-3142075-3121384 - MULTICALOR 500.1 PR TC VGD 40.065
12 parts · 3147260-3146005-3145997-3124111 - MULTICALOR 500.1 PR TC VGD 40.080
12 parts · 3147260-3146006-3145864-3142088 - MULTICALOR 500.1 PR TC VGD 40.100
12 parts · 3147260-3146007-3145821-3142205 - MULTICALOR 500.1 PR TC VGD 40.125
12 parts · 3147260-3146008-3145830-3142206 - MULTICALOR 500.1 PR TL
12 parts · 3147261 - MULTICALOR 500.1 PR TL VGD 20.503
12 parts · 3147261-3146004-3121384-3142075 - MULTICALOR 500.1 PR TL VGD 40.065
12 parts · 3147261-3146005-3145997-3124111 - MULTICALOR 500.1 PR TL VGD 40.080
12 parts · 3147261-3146006-3142088-3145864 - MULTICALOR 500.1 PR TL VGD 40.100
12 parts · 3147261-3146007-3145821-3142205 - MULTICALOR 500.1 PR TL VGD 40.125
12 parts · 3147261-3146008-3145830-3142206
All 24 versions
- MULTICALOR 500.1 PR TC
12 parts · 3147260 - MULTICALOR 500.1 PR TC VGD 20.503
12 parts · 3147260-3146004-3142075-3121384 - MULTICALOR 500.1 PR TC VGD 40.065
12 parts · 3147260-3146005-3145997-3124111 - MULTICALOR 500.1 PR TC VGD 40.080
12 parts · 3147260-3146006-3145864-3142088 - MULTICALOR 500.1 PR TC VGD 40.100
12 parts · 3147260-3146007-3145821-3142205 - MULTICALOR 500.1 PR TC VGD 40.125
12 parts · 3147260-3146008-3145830-3142206 - MULTICALOR 500.1 PR TL
12 parts · 3147261 - MULTICALOR 500.1 PR TL VGD 20.503
12 parts · 3147261-3146004-3121384-3142075 - MULTICALOR 500.1 PR TL VGD 40.065
12 parts · 3147261-3146005-3145997-3124111 - MULTICALOR 500.1 PR TL VGD 40.080
12 parts · 3147261-3146006-3142088-3145864 - MULTICALOR 500.1 PR TL VGD 40.100
12 parts · 3147261-3146007-3145821-3142205 - MULTICALOR 500.1 PR TL VGD 40.125
12 parts · 3147261-3146008-3145830-3142206 - MULTICALOR 500.1 PRE TC
12 parts · 3145148 - MULTICALOR 500.1 PRE TC VGD 20.503
12 parts · 3145148-3145790-3142075-3121384 - MULTICALOR 500.1 PRE TC VGD 40.065
12 parts · 3145148-3145793-3145997-3124111 - MULTICALOR 500.1 PRE TC VGD 40.080
12 parts · 3145148-3145814-3145864-3142088 - MULTICALOR 500.1 PRE TC VGD 40.100
12 parts · 3145148-3145817-3145821-3142205 - MULTICALOR 500.1 PRE TC VGD 40.125
12 parts · 3145148-3145823-3145830-3142206 - MULTICALOR 500.1 PRE TL
12 parts · 3145149 - MULTICALOR 500.1 PRE TL VGD 20.503
12 parts · 3145149-3145790-3121384-3142075 - MULTICALOR 500.1 PRE TL VGD 40.065
12 parts · 3145149-3145793-3145997-3124111 - MULTICALOR 500.1 PRE TL VGD 40.080
12 parts · 3145149-3145814-3145864-3142088 - MULTICALOR 500.1 PRE TL VGD 40.100
12 parts · 3145149-3145817-3145821-3142205 - MULTICALOR 500.1 PRE TL VGD 40.125
12 parts · 3145149-3145823-3145830-3142206
Questions about Ecoflam MULTICALOR 500.1 PR TL parts
Which burner components fit Ecoflam MULTICALOR 500.1 PR TL?
These fit Ecoflam MULTICALOR 500.1 PR TL: Ecoflam Equalizing Disc 65324157; Ecoflam Adjustment Rod 65324434; Ecoflam Adjustment Rod 65324492. ↑
Which boiler components fit Ecoflam MULTICALOR 500.1 PR TL?
These fit Ecoflam MULTICALOR 500.1 PR TL: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTICALOR 500.1 PR TL?
These fit Ecoflam MULTICALOR 500.1 PR TL: Ecoflam Flange Gasket 65321128. ↑
Which gas pressure regulators fit Ecoflam MULTICALOR 500.1 PR TL?
These fit Ecoflam MULTICALOR 500.1 PR TL: Ecoflam Gas pressure regulator 65324304. ↑
Which gas valves fit Ecoflam MULTICALOR 500.1 PR TL?
These fit Ecoflam MULTICALOR 500.1 PR TL: Elco Gas Solenoid Valve 65323595. ↑
Which gas valves & coils fit Ecoflam MULTICALOR 500.1 PR TL?
These fit Ecoflam MULTICALOR 500.1 PR TL: Elco Solenoid Coil 65323810. ↑
