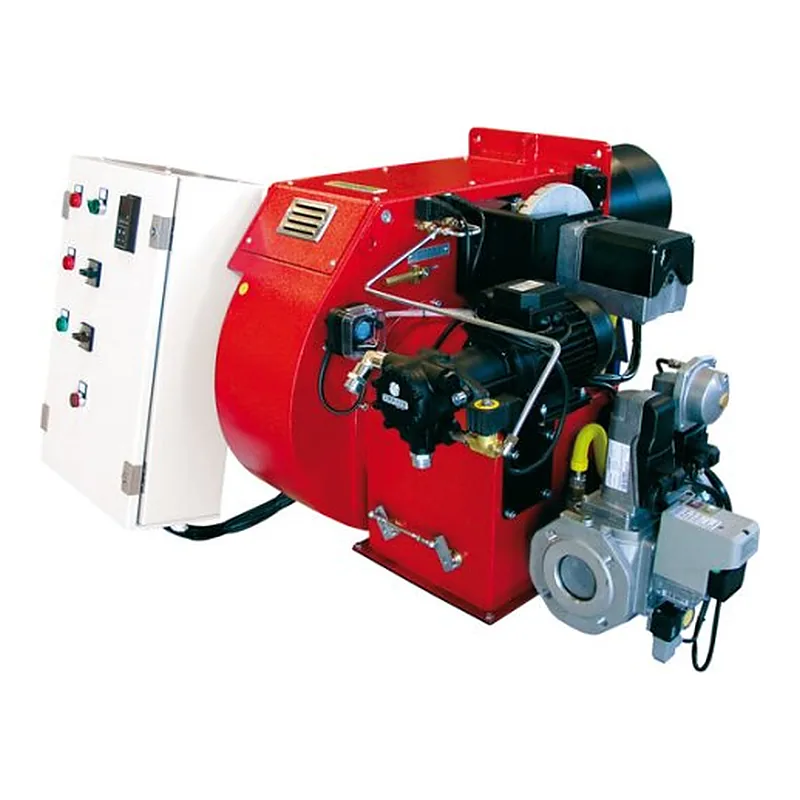

Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 — spare parts
- Output
- 1500–5800 kW
- Parts
- 12
- Factory code
- 3147263-3146007-3142205-3145821
- Series
- MULTICALOR 600.1 · 24
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 4
—on request
—on request
—on request
Boiler components for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Gas pressure regulators for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Gas valves for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Gas valves & coils for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Motors for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Oil pumps for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Sensors and switches for Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 · 1
—on request
Specifications
Output1500–5800 kW
Fan motor power15000 W
Power consumption17500 W
Protection class (IP)IP55
Flame tube length555 mm
Flame tube diameter320 mm
Flame tube typeextended
Back pressure (combustion chamber)0–20 mbar
Gas consumption150.5–582 m³/h
Gas train pressure22.5–55 mbar
Noise level92.8 dB
Operating temperature-10–60 °C
Overall dimensions155.5 x 120 x 73 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MULTICALOR 600.1 · 24
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTICALOR 600.1 PR TC VGD 40.100
12 parts · 3147262-3146007-3145821-3142205 - MULTICALOR 600.1 PR TC VGD 40.125
12 parts · 3147262-3146008-3142206-3145830 - MULTICALOR 600.1 PR TL
12 parts · 3147263 - MULTICALOR 600.1 PR TL VGD 20.503
12 parts · 3147263-3146004-3142075-3121384 - MULTICALOR 600.1 PR TL VGD 40.065
12 parts · 3147263-3146005-3145997-3124111 - MULTICALOR 600.1 PR TL VGD 40.080
12 parts · 3147263-3146006-3145864-3142088 - MULTICALOR 600.1 PR TL VGD 40.100
12 parts · 3147263-3146007-3142205-3145821 - MULTICALOR 600.1 PR TL VGD 40.125
12 parts · 3147263-3146008-3145830-3142206 - MULTICALOR 600.1 PRE TC
12 parts · 3145150 - MULTICALOR 600.1 PRE TC VGD 20.503
12 parts · 3145150-3145790-3142075-3121384 - MULTICALOR 600.1 PRE TC VGD 40.065
12 parts · 3145150-3145793-3145997-3124111 - MULTICALOR 600.1 PRE TC VGD 40.080
12 parts · 3145150-3145814-3145864-3142088
All 24 versions
- MULTICALOR 600.1 PR TC
12 parts · 3147262 - MULTICALOR 600.1 PR TC VGD 20.503
12 parts · 3147262-3146004-3142075-3121384 - MULTICALOR 600.1 PR TC VGD 40.065
12 parts · 3147262-3146005-3145997-3124111 - MULTICALOR 600.1 PR TC VGD 40.080
12 parts · 3147262-3146006-3145864-3142088 - MULTICALOR 600.1 PR TC VGD 40.100
12 parts · 3147262-3146007-3145821-3142205 - MULTICALOR 600.1 PR TC VGD 40.125
12 parts · 3147262-3146008-3142206-3145830 - MULTICALOR 600.1 PR TL
12 parts · 3147263 - MULTICALOR 600.1 PR TL VGD 20.503
12 parts · 3147263-3146004-3142075-3121384 - MULTICALOR 600.1 PR TL VGD 40.065
12 parts · 3147263-3146005-3145997-3124111 - MULTICALOR 600.1 PR TL VGD 40.080
12 parts · 3147263-3146006-3145864-3142088 - MULTICALOR 600.1 PR TL VGD 40.100
12 parts · 3147263-3146007-3142205-3145821 - MULTICALOR 600.1 PR TL VGD 40.125
12 parts · 3147263-3146008-3145830-3142206 - MULTICALOR 600.1 PRE TC
12 parts · 3145150 - MULTICALOR 600.1 PRE TC VGD 20.503
12 parts · 3145150-3145790-3142075-3121384 - MULTICALOR 600.1 PRE TC VGD 40.065
12 parts · 3145150-3145793-3145997-3124111 - MULTICALOR 600.1 PRE TC VGD 40.080
12 parts · 3145150-3145814-3145864-3142088 - MULTICALOR 600.1 PRE TC VGD 40.100
12 parts · 3145150-3145817-3145821-3142205 - MULTICALOR 600.1 PRE TC VGD 40.125
12 parts · 3145150-3145823-3142206-3145830 - MULTICALOR 600.1 PRE TL
12 parts · 3145151 - MULTICALOR 600.1 PRE TL VGD 20.503
12 parts · 3145151-3145790-3142075-3121384 - MULTICALOR 600.1 PRE TL VGD 40.065
12 parts · 3145151-3145793-3145997-3124111 - MULTICALOR 600.1 PRE TL VGD 40.080
12 parts · 3145151-3145814-3145864-3142088 - MULTICALOR 600.1 PRE TL VGD 40.100
12 parts · 3145151-3145817-3145821-3142205 - MULTICALOR 600.1 PRE TL VGD 40.125
12 parts · 3145151-3145823-3145830-3142206
Questions about Ecoflam MULTICALOR 600.1 PR TL VGD 40.100 parts
Which burner components fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100?
These fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100: Ecoflam Equalizing Disc 65324157; Ecoflam Intake Air Ring 65324264; Ecoflam Adjustment Rod 65324434; Ecoflam Adjustment Rod 65324492. ↑
Which boiler components fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100?
These fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100?
These fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100: Ecoflam Flange Gasket 65321128. ↑
Which gas pressure regulators fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100?
These fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100: Ecoflam Gas pressure regulator 65324304. ↑
Which gas valves fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100?
These fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100: Elco Gas Solenoid Valve 65323595. ↑
Which gas valves & coils fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100?
These fit Ecoflam MULTICALOR 600.1 PR TL VGD 40.100: Elco Solenoid Coil 65323810. ↑
