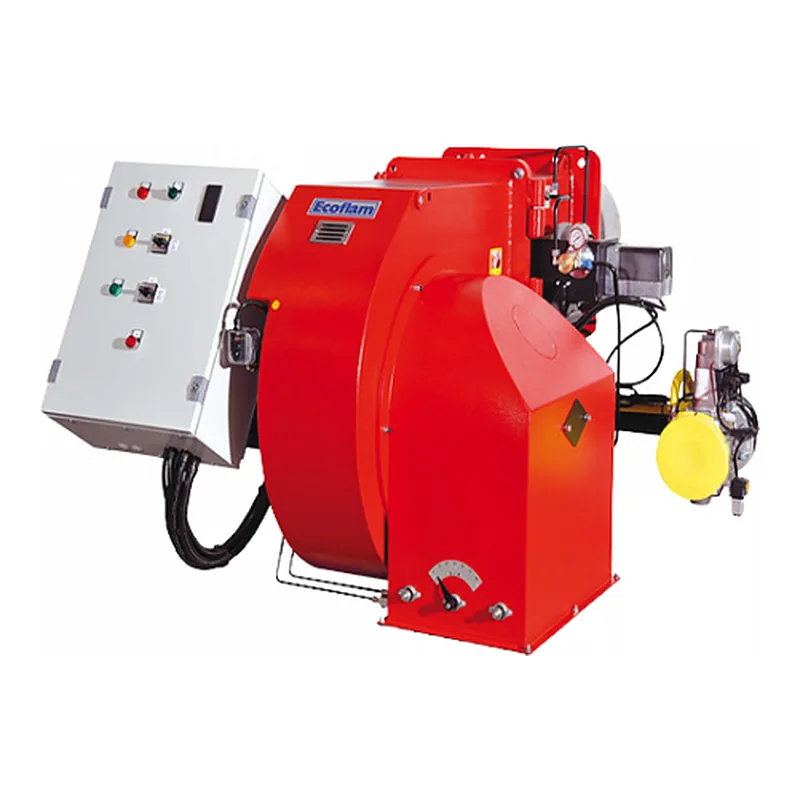

Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 — spare parts
- Output
- 1500–7500 kW
- Parts
- 11
- Factory code
- 3146100-3146008-3145829-3142206
- Series
- MULTICALOR 700.1 · 10
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Boiler components for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
Burner components for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Burner pipes, flanges & connections for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Gas nozzles & injectors for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Gas valves for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Motors for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Nozzle adapters for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Oil nozzles for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Pressure switches for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Sensors and switches for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Wiring, cables & electrical components for Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 · 1
—on request
Specifications
Output1500–7500 kW
Gas connectionDN 125
Fan motor power18000 W
Power consumption19000 W
Protection class (IP)IP55
Flame tube length470 mm
Flame tube diameter420 mm
Flame tube typeshort
Back pressure (combustion chamber)0–22 mbar
Gas consumption150.2–751.7 m³/h
Gas train pressure13–48.5 mbar
Noise level94.1 dB
Operating temperature-10–60 °C
Overall dimensions135.5 x 120 x 73 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MULTICALOR 700.1 · 10
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTICALOR 700.1 PR TC
11 parts · 3146100 - MULTICALOR 700.1 PR TC VGD 40.065
11 parts · 3146100-3146005-3145801-3124111 - MULTICALOR 700.1 PR TC VGD 40.080
11 parts · 3146100-3146006-3145816-3142088 - MULTICALOR 700.1 PR TC VGD 40.100
11 parts · 3146100-3146007-3145822-3142205 - MULTICALOR 700.1 PR TC VGD 40.125
11 parts · 3146100-3146008-3145829-3142206 - MULTICALOR 700.1 PRE TC
11 parts · 3145152 - MULTICALOR 700.1 PRE TC VGD 40.065
11 parts · 3145152-3145793-3145801-3124111 - MULTICALOR 700.1 PRE TC VGD 40.080
11 parts · 3145152-3145814-3145816-3142088 - MULTICALOR 700.1 PRE TC VGD 40.100
11 parts · 3145152-3145817-3145822-3142205 - MULTICALOR 700.1 PRE TC VGD 40.125
11 parts · 3145152-3145823-3145829-3142206
Questions about Ecoflam MULTICALOR 700.1 PR TC VGD 40.125 parts
Which boiler components fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125?
These fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125: Ecoflam Sight Glass 65320487. ↑
Which burner components fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125?
These fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125: Elco Equalizing Disc 65324159. ↑
Which burner pipes, flanges & connections fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125?
These fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125: Ecoflam Burner pipe fitting 65321341. ↑
Which gas nozzles & injectors fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125?
These fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125: Ecoflam Gas nozzle 65321672. ↑
Which gas valves fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125?
These fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125: Elco Gas Solenoid Valve 65324722. ↑
Which motors fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125?
These fit Ecoflam MULTICALOR 700.1 PR TC VGD 40.125: Elco Electric Motor 65325517. ↑
