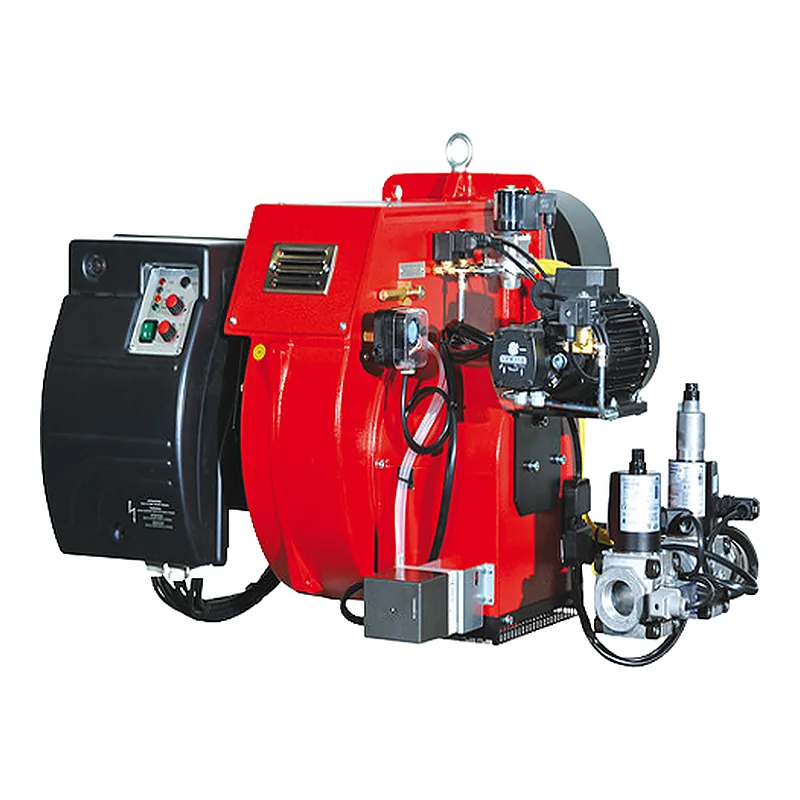

Ecoflam MULTICALOR TS 200.1 PR TC HT SGT — burner, photo 1

Ecoflam MULTICALOR TS 200.1 PR TC HT SGT — spare parts

Output
414–2150 kW
Parts
12
Factory code
3143189

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 4

Actuators for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Boiler components for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Burners for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Control devices for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Flame sensors for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Flues & air ducts for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Gas valves for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Wiring, cables & electrical components for Ecoflam MULTICALOR TS 200.1 PR TC HT SGT · 1

Specifications

Output414–2150 kW
Fan motor power4000 W
Flame tube length290 mm
Flame tube diameter270 mm
Flame tube typeshort
Back pressure (combustion chamber)0–11 mbar
Gas consumption42–216 m³/h
Operating temperature-10–60 °C
Overall dimensions99 x 99 x 55.5 cm
Delivery scopewith combustion head, without gas train
Additional featureshigh-temperature version

Other versions of this seriesEcoflam MULTICALOR TS 200.1 · 2

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Ecoflam MULTICALOR TS 200.1 PR TC HT SGT parts

Which burner components fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT?

These fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT: Ecoflam Adjustment Rod 65320245; Ecoflam Fusible Link Nest 65322181; Ecoflam Gas Damper 65325510; Ecoflam Diffuser 65325795. ↑

Which actuators fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT?

These fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT: Elco Actuator 65322896. ↑

Which boiler components fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT?

These fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT: Ecoflam Sight Glass 65320487. ↑

Which burners fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT?

These fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT: Ecoflam Burner Automation Base 65320092. ↑

Which control devices fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT?

These fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT: Elco Time Relay 65324212. ↑

Which flame sensors fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT?

These fit Ecoflam MULTICALOR TS 200.1 PR TC HT SGT: Elco Flame Signal Amplifier 65113521. ↑
