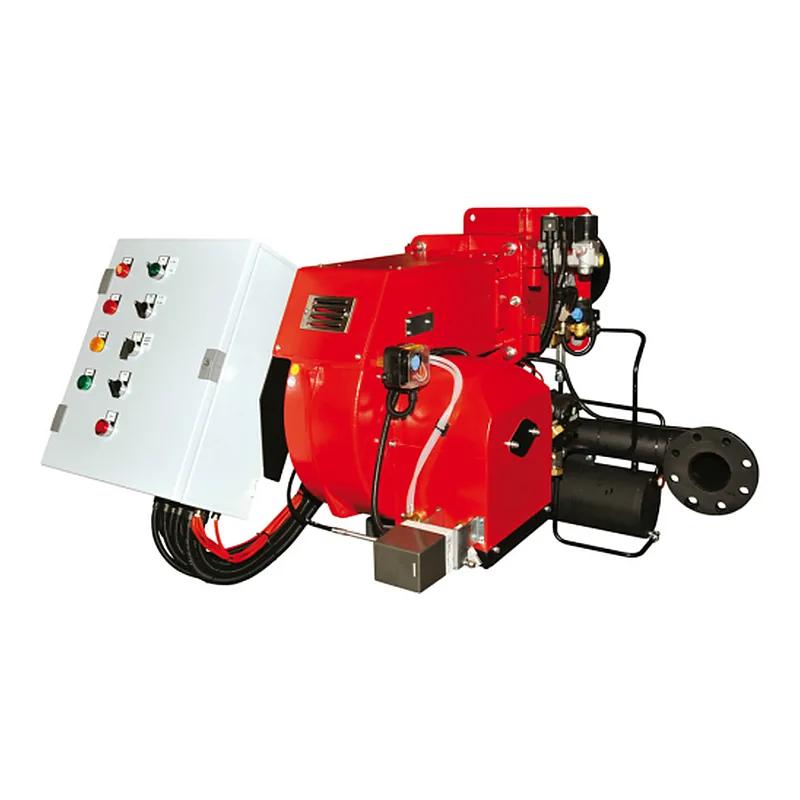

Ecoflam MULTIFLAM 200.1 TL VGD 20.503 — spare parts
- Output
- 414–2150 kW
- Parts
- 12
- Factory code
- 3142670-3123860-3143080-3121384
- Series
- MULTIFLAM 200.1 · 6
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 2
—on request
Boiler components for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Boiler filters, gaskets & seals for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Burners for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Flame sensors for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Flues & air ducts for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Gas valves & coils for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Oil filters, coils, tubes & hoses for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Oil preheaters for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Sensors and switches for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Wiring, cables & electrical components for Ecoflam MULTIFLAM 200.1 TL VGD 20.503 · 1
—on request
Specifications
Output414–2150 kW
Gas connectionRp 2"
Fan motor power4000 W
Power consumption16500 W
Net weight220 kg
Protection class (IP)IP55
Flame tube length485 mm
Flame tube diameter270 mm
Flame tube typeextended
Back pressure (combustion chamber)0–11 mbar
Gas consumption41.5–215.7 m³/h
Gas train pressure14–52.5 mbar
Noise level91.4 dB
Operating temperature-10–60 °C
Overall dimensions163.5 x 84.8 x 73.5 cm
Delivery scopewith combustion head, with gas train
Other versions of this seriesEcoflam MULTIFLAM 200.1 · 6
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTIFLAM 200.1 TC VGD 20.503
12 parts · 3142669-3123860-3143080-3121384 - MULTIFLAM 200.1 TC VGD 40.065
12 parts · 3142669-3124110-3124111-3142935 - MULTIFLAM 200.1 TC VGD 40.080
12 parts · 3142669-3142026-3142088 - MULTIFLAM 200.1 TL VGD 20.503
12 parts · 3142670-3123860-3143080-3121384 - MULTIFLAM 200.1 TL VGD 40.065
12 parts · 3142670-3124110-3142935-3124111 - MULTIFLAM 200.1 TL VGD 40.080
12 parts · 3142670-3142026-3142088
Questions about Ecoflam MULTIFLAM 200.1 TL VGD 20.503 parts
Which burner components fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503?
These fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503: Ecoflam Tube Filter 65321171; Ecoflam Gas Damper 65325510. ↑
Which boiler components fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503?
These fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503?
These fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503: Ecoflam Preheater Gasket 65321155. ↑
Which burners fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503?
These fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503: Ecoflam Burner Automation Base 65320092. ↑
Which flame sensors fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503?
These fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503: Elco Flame Signal Amplifier 65113521. ↑
Which flues & air ducts fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503?
These fit Ecoflam MULTIFLAM 200.1 TL VGD 20.503: Ecoflam Fire tube 65320453. ↑
