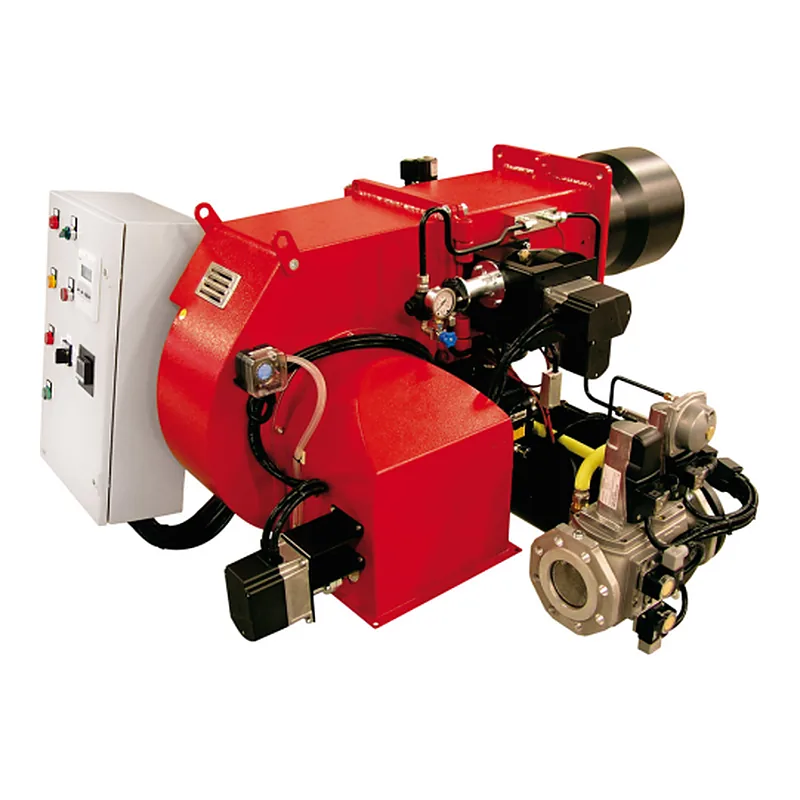

Ecoflam MULTIFLAM 300.1 PR TL SGT — spare parts
- Output
- 630–3000 kW
- Parts
- 12
- Factory code
- 3143780
- Series
- MULTIFLAM 300.1 · 10
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Boiler components for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
Boiler filters, gaskets & seals for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Burner pipes, flanges & connections for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Flues & air ducts for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Gas valves for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Nozzle adapters for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Oil bypass valves for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Oil filters, coils, tubes & hoses for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Oil pumps for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Sensors and switches for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Thermostats for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Wiring, cables & electrical components for Ecoflam MULTIFLAM 300.1 PR TL SGT · 1
—on request
Specifications
Output630–3000 kW
Gas connectionRp 2"
Fan motor power5500 W
Power consumption27000 W
Protection class (IP)IP55
Flame tube length530 mm
Flame tube diameter290 mm
Flame tube typeextended
Back pressure (combustion chamber)0–13 mbar
Gas consumption63–301 m³/h
Noise level87.3 dB
Operating temperature-10–60 °C
Overall dimensions166 x 128.8 x 89.5 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam MULTIFLAM 300.1 · 10
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTIFLAM 300.1 PR TC
12 parts · 3143779 - MULTIFLAM 300.1 PR TC VGD 20.503
12 parts · 3143779-3123860-3143080-3121384 - MULTIFLAM 300.1 PR TC VGD 40.065
12 parts · 3143779-3124110-3142935-3124111 - MULTIFLAM 300.1 PR TC VGD 40.080
12 parts · 3143779-3142026-3142088 - MULTIFLAM 300.1 PR TC VGD 40.100
12 parts · 3143779-3141869-3142205-3142073 - MULTIFLAM 300.1 PR TL SGT
12 parts · 3143780 - MULTIFLAM 300.1 PR TL VGD 20.503
12 parts · 3143780-3123860-3121384-3143080 - MULTIFLAM 300.1 PR TL VGD 40.065
12 parts · 3143780-3124110-3124111-3142935 - MULTIFLAM 300.1 PR TL VGD 40.080
12 parts · 3143780-3142026-3142088 - MULTIFLAM 300.1 PR TL VGD 40.100
12 parts · 3143780-3141869-3142073-3142205
Questions about Ecoflam MULTIFLAM 300.1 PR TL SGT parts
Which boiler components fit Ecoflam MULTIFLAM 300.1 PR TL SGT?
These fit Ecoflam MULTIFLAM 300.1 PR TL SGT: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTIFLAM 300.1 PR TL SGT?
These fit Ecoflam MULTIFLAM 300.1 PR TL SGT: Ecoflam Flange Gasket 65321125. ↑
Which burner pipes, flanges & connections fit Ecoflam MULTIFLAM 300.1 PR TL SGT?
These fit Ecoflam MULTIFLAM 300.1 PR TL SGT: Ecoflam Burner pipe fitting 65321341. ↑
Which flues & air ducts fit Ecoflam MULTIFLAM 300.1 PR TL SGT?
These fit Ecoflam MULTIFLAM 300.1 PR TL SGT: Ecoflam Fire tube 65320435. ↑
Which gas valves fit Ecoflam MULTIFLAM 300.1 PR TL SGT?
These fit Ecoflam MULTIFLAM 300.1 PR TL SGT: Elco Gas Solenoid Valve 65323595. ↑
Which nozzle adapters fit Ecoflam MULTIFLAM 300.1 PR TL SGT?
These fit Ecoflam MULTIFLAM 300.1 PR TL SGT: Elco Nozzle adapter 65320709. ↑
