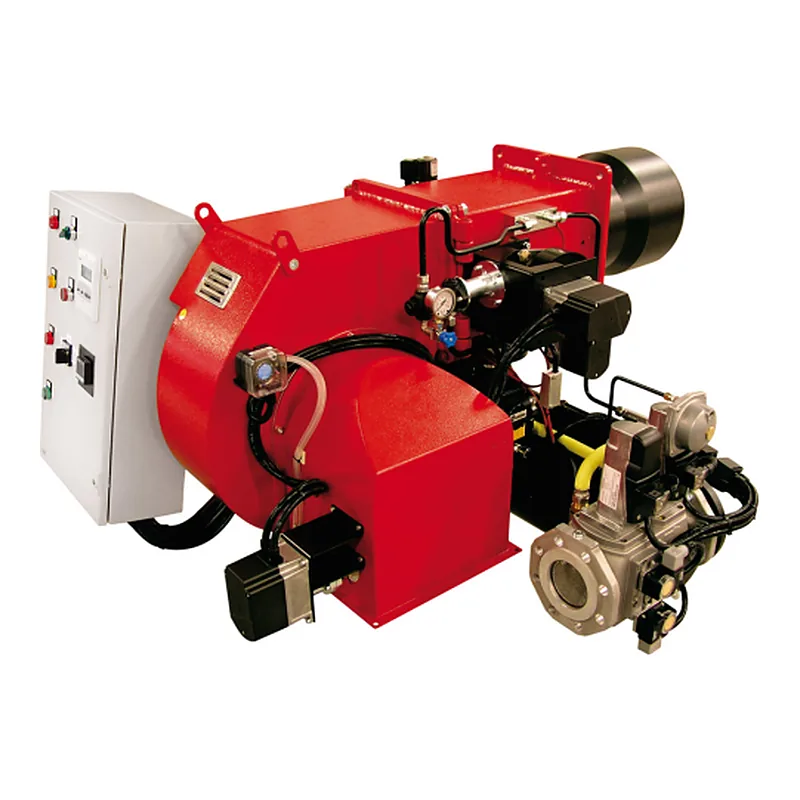

Ecoflam MULTIFLAM 400.1 PR TC SGT — spare parts
- Output
- 875–3900 kW
- Parts
- 12
- Factory code
- 3143781
- Series
- MULTIFLAM 400.1 · 10
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Boiler components for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
Boiler filters, gaskets & seals for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Burner components for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Burner pipes, flanges & connections for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Gas valves for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Motors for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Nozzle adapters for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Oil filters, coils, tubes & hoses for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Oil pumps for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Sensors and switches for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Thermostats for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Wiring, cables & electrical components for Ecoflam MULTIFLAM 400.1 PR TC SGT · 1
—on request
Specifications
Output875–3900 kW
Fan motor power7500 W
Power consumption30000 W
Protection class (IP)IP55
Flame tube length345 mm
Flame tube diameter320 mm
Flame tube typeshort
Back pressure (combustion chamber)0–15 mbar
Gas consumption87.8–391.2 m³/h
Noise level87.3 dB
Operating temperature-10–60 °C
Overall dimensions147.5 x 128.8 x 91 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam MULTIFLAM 400.1 · 10
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTIFLAM 400.1 PR TC SGT
12 parts · 3143781 - MULTIFLAM 400.1 PR TC VGD 20.503
12 parts · 3143781-3123860-3143080-3121384 - MULTIFLAM 400.1 PR TC VGD 40.065
12 parts · 3143781-3124110-3142935-3124111 - MULTIFLAM 400.1 PR TC VGD 40.080
12 parts · 3143781-3142026-3142088 - MULTIFLAM 400.1 PR TC VGD 40.100
12 parts · 3143781-3141869-3142073-3142205 - MULTIFLAM 400.1 PR TL SGT
12 parts · 3143782 - MULTIFLAM 400.1 PR TL VGD 20.503
12 parts · 3143782-3123860-3143080-3121384 - MULTIFLAM 400.1 PR TL VGD 40.065
12 parts · 3143782-3124110-3124111-3142935 - MULTIFLAM 400.1 PR TL VGD 40.080
12 parts · 3143782-3142026-3142088 - MULTIFLAM 400.1 PR TL VGD 40.100
12 parts · 3143782-3141869-3142073-3142205
Questions about Ecoflam MULTIFLAM 400.1 PR TC SGT parts
Which boiler components fit Ecoflam MULTIFLAM 400.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 400.1 PR TC SGT: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTIFLAM 400.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 400.1 PR TC SGT: Ecoflam Flange Gasket 65321125. ↑
Which burner components fit Ecoflam MULTIFLAM 400.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 400.1 PR TC SGT: Ecoflam Adjustment Rod 65324086. ↑
Which burner pipes, flanges & connections fit Ecoflam MULTIFLAM 400.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 400.1 PR TC SGT: Ecoflam Burner pipe fitting 65321341. ↑
Which gas valves fit Ecoflam MULTIFLAM 400.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 400.1 PR TC SGT: Elco Gas Solenoid Valve 65323595. ↑
Which motors fit Ecoflam MULTIFLAM 400.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 400.1 PR TC SGT: Elco Electric Motor 65325356. ↑
