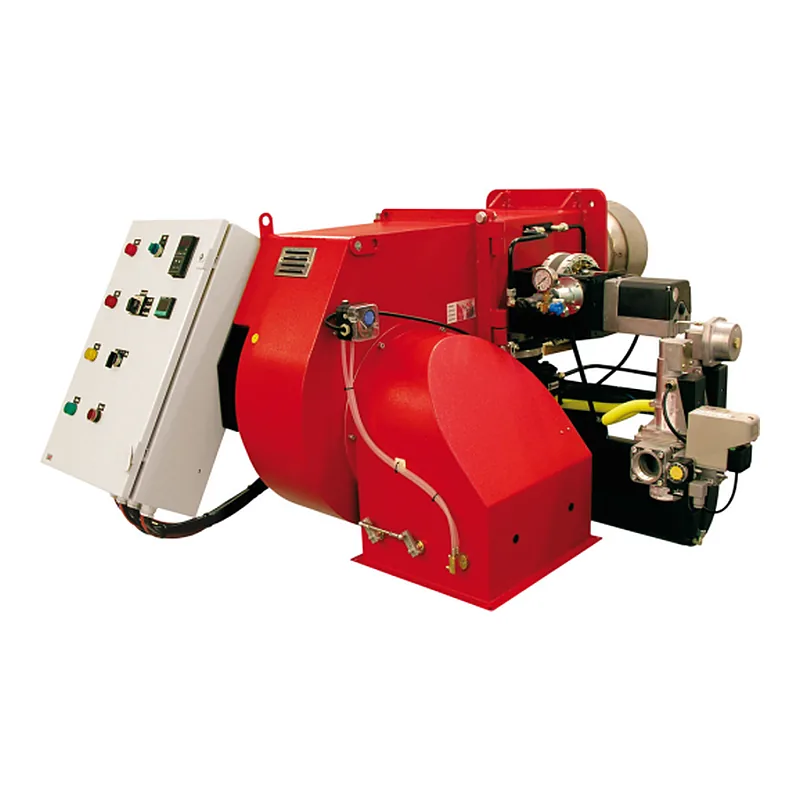

Ecoflam MULTIFLAM 600.1 PR TC SGT — spare parts
- Output
- 1500–5800 kW
- Parts
- 12
- Factory code
- 3143785
- Series
- MULTIFLAM 600.1 · 12
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam MULTIFLAM 600.1 PR TC SGT · 3
—on request
—on request
Sensors and switches for Ecoflam MULTIFLAM 600.1 PR TC SGT · 2
—on request
—on request
Wiring, cables & electrical components for Ecoflam MULTIFLAM 600.1 PR TC SGT · 2
—on request
—on request
Boiler components for Ecoflam MULTIFLAM 600.1 PR TC SGT · 1
—on request
Boiler filters, gaskets & seals for Ecoflam MULTIFLAM 600.1 PR TC SGT · 1
—on request
Burner pipes, flanges & connections for Ecoflam MULTIFLAM 600.1 PR TC SGT · 1
—on request
Nozzle adapters for Ecoflam MULTIFLAM 600.1 PR TC SGT · 1
—on request
Thermostats for Ecoflam MULTIFLAM 600.1 PR TC SGT · 1
—on request
Specifications
Output1500–5800 kW
Fan motor power15000 W
Power consumption41000 W
Protection class (IP)IP55
Flame tube length354 mm
Flame tube diameter320 mm
Flame tube typeshort
Back pressure (combustion chamber)0–20 mbar
Gas consumption150–580 m³/h
Noise level91.4 dB
Operating temperature-10–60 °C
Overall dimensions158.4 x 135.8 x 93.5 cm
Delivery scopewith combustion head, without gas train
Other versions of this seriesEcoflam MULTIFLAM 600.1 · 12
Parts often differ between versions of one series: pick the version named on your rating plate.
- MULTIFLAM 600.1 PR TC SGT
12 parts · 3143785 - MULTIFLAM 600.1 PR TC VGD 20.503
12 parts · 3143785-3123860-3121384-3143080 - MULTIFLAM 600.1 PR TC VGD 40.065
12 parts · 3143785-3124110-3124111-3142935 - MULTIFLAM 600.1 PR TC VGD 40.080
12 parts · 3143785-3142026-3142088 - MULTIFLAM 600.1 PR TC VGD 40.100
12 parts · 3143785-3141869-3142073-3142205 - MULTIFLAM 600.1 PR TC VGD 40.125
12 parts · 3143785-3142666-3143105-3142206 - MULTIFLAM 600.1 PR TL SGT
12 parts · 3143786 - MULTIFLAM 600.1 PR TL VGD 20.503
12 parts · 3143786-3123860-3143080-3121384 - MULTIFLAM 600.1 PR TL VGD 40.065
12 parts · 3143786-3124110-3142935-3124111 - MULTIFLAM 600.1 PR TL VGD 40.080
12 parts · 3143786-3142026-3142088 - MULTIFLAM 600.1 PR TL VGD 40.100
12 parts · 3143786-3141869-3142073-3142205 - MULTIFLAM 600.1 PR TL VGD 40.125
12 parts · 3143786-3142666-3143105-3142206
Questions about Ecoflam MULTIFLAM 600.1 PR TC SGT parts
Which burner components fit Ecoflam MULTIFLAM 600.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 600.1 PR TC SGT: Ecoflam Intake Air Ring 65324264; Ecoflam Adjustment Rod 65325133; Ecoflam Adjustment Rod 65325378. ↑
Which sensors and switches fit Ecoflam MULTIFLAM 600.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 600.1 PR TC SGT: AEG Thermal Relay 65323116; Ecoflam Rotary Switch 65324098. ↑
Which wiring, cables & electrical components fit Ecoflam MULTIFLAM 600.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 600.1 PR TC SGT: AEG Minicontactor LS 05.10-50 65323132; Ecoflam Indicator lamp 65324100. ↑
Which boiler components fit Ecoflam MULTIFLAM 600.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 600.1 PR TC SGT: Ecoflam Sight Glass 65320487. ↑
Which boiler filters, gaskets & seals fit Ecoflam MULTIFLAM 600.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 600.1 PR TC SGT: Ecoflam Flange Gasket 65321128. ↑
Which burner pipes, flanges & connections fit Ecoflam MULTIFLAM 600.1 PR TC SGT?
These fit Ecoflam MULTIFLAM 600.1 PR TC SGT: Ecoflam Burner pipe fitting 65321341. ↑
