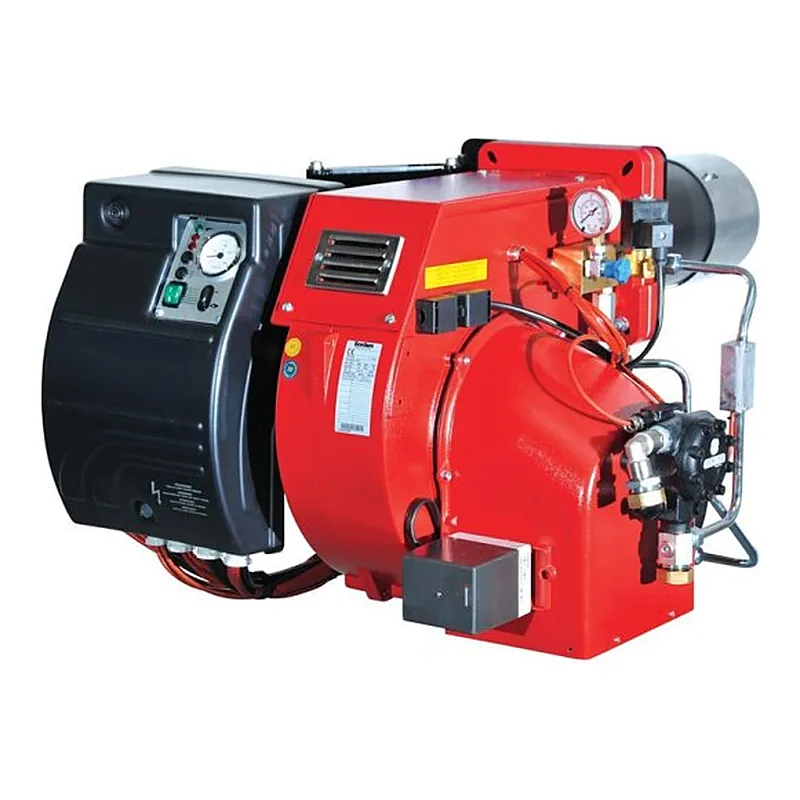

Ecoflam OILFLAM 170.1 AB TC — oil burner, photo 1

Ecoflam OILFLAM 170.1 AB TC — spare parts

Fuel
Oil
Output
682–1700 kW
Parts
12
Factory code
3142608

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Ecoflam OILFLAM 170.1 AB TC · 4

Wiring, cables & electrical components for Ecoflam OILFLAM 170.1 AB TC · 2

Boiler filters, gaskets & seals for Ecoflam OILFLAM 170.1 AB TC · 1

Oil filters, coils, tubes & hoses for Ecoflam OILFLAM 170.1 AB TC · 1

Specifications

FuelOil
Output682–1700 kW
Firing stagesTwo-stage
Fan motor power3000 W
Flame tube length280 mm
Flame tube diameter250 mm
Flame tube typeshort
Back pressure (combustion chamber)0–12 mbar
Operating temperature-10–60 °C
Delivery scopewith combustion head

Questions about Ecoflam OILFLAM 170.1 AB TC parts

Which burner components fit Ecoflam OILFLAM 170.1 AB TC?

These fit Ecoflam OILFLAM 170.1 AB TC: Ecoflam Equalizing Disc 65320786; Ecoflam Tube Filter 65321171; Ecoflam Clutch Shaft 65321460; Ecoflam Half Coupling 65321782. ↑

Which heating elements fit Ecoflam OILFLAM 170.1 AB TC?

These fit Ecoflam OILFLAM 170.1 AB TC: Ecoflam Heating Element Upper Housing 65321716; Ecoflam Heating Element Lower Housing 65321717; Ecoflam Heating Element Upper Housing 65321718; Ecoflam Heating Element Lower Housing 65321719. ↑

Which wiring, cables & electrical components fit Ecoflam OILFLAM 170.1 AB TC?

These fit Ecoflam OILFLAM 170.1 AB TC: Cogema Network Interference Filter 951409; Finder Intermediate Relay 55.34.8.230.0054. ↑

Which boiler filters, gaskets & seals fit Ecoflam OILFLAM 170.1 AB TC?

These fit Ecoflam OILFLAM 170.1 AB TC: Ecoflam Preheater Gasket 65321155. ↑

Which oil filters, coils, tubes & hoses fit Ecoflam OILFLAM 170.1 AB TC?

These fit Ecoflam OILFLAM 170.1 AB TC: Ecoflam Liquid Fuel Hose 65323180. ↑
