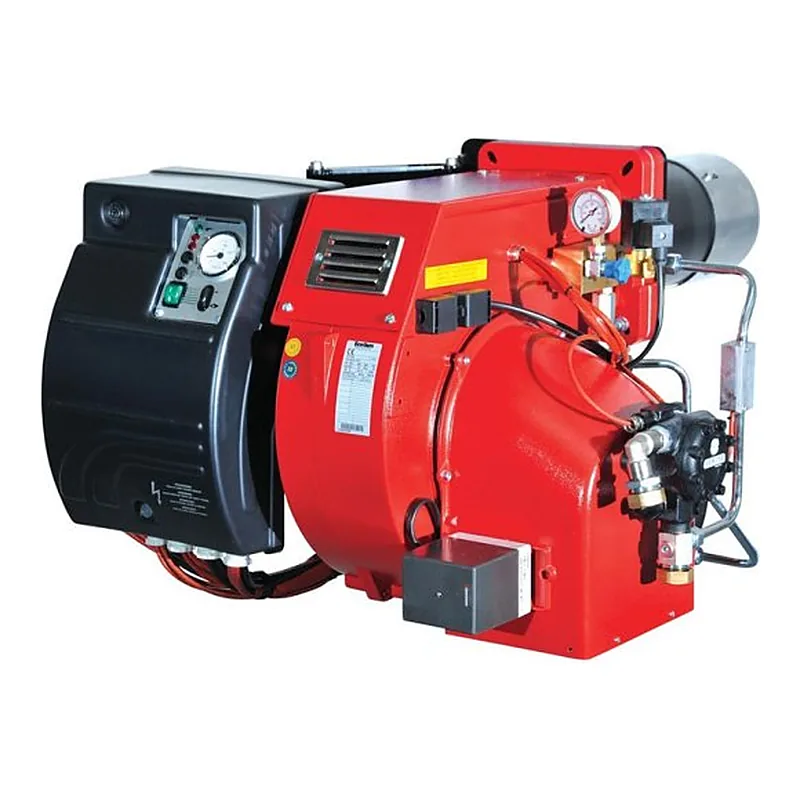

Ecoflam OILFLAM 200.1 AB TC — spare parts
- Fuel
- Oil
- Output
- 682–2093 kW
- Parts
- 12
- Factory code
- 3142610
Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.
Parts that fit this burner
Burner components for Ecoflam OILFLAM 200.1 AB TC · 4
—on request
—on request
—on request
Boiler filters, gaskets & seals for Ecoflam OILFLAM 200.1 AB TC · 2
—on request
—on request
Heating elements for Ecoflam OILFLAM 200.1 AB TC · 2
—on request
—on request
Control boxes for Ecoflam OILFLAM 200.1 AB TC · 1
—on request
Motors for Ecoflam OILFLAM 200.1 AB TC · 1
—on request
Oil filters, coils, tubes & hoses for Ecoflam OILFLAM 200.1 AB TC · 1
—on request
Oil preheaters for Ecoflam OILFLAM 200.1 AB TC · 1
—on request
Specifications
FuelOil
Output682–2093 kW
Firing stagesTwo-stage
Fan motor power4000 W
Net weight232 kg
Flame tube length280 mm
Flame tube diameter270 mm
Flame tube typeshort
Back pressure (combustion chamber)0–14 mbar
Operating temperature-10–60 °C
Delivery scopewith combustion head
Questions about Ecoflam OILFLAM 200.1 AB TC parts
Which burner components fit Ecoflam OILFLAM 200.1 AB TC?
These fit Ecoflam OILFLAM 200.1 AB TC: Ecoflam Equalizing Disc 65320786; Ecoflam Tube Filter 65321171; Ecoflam Clutch Shaft 65321460; Ecoflam Half Coupling 65321782. ↑
Which boiler filters, gaskets & seals fit Ecoflam OILFLAM 200.1 AB TC?
These fit Ecoflam OILFLAM 200.1 AB TC: Ecoflam Flange Gasket 65321125; Ecoflam Preheater Gasket 65321155. ↑
Which heating elements fit Ecoflam OILFLAM 200.1 AB TC?
These fit Ecoflam OILFLAM 200.1 AB TC: Ecoflam Heating Element Upper Housing 65321716; Ecoflam Heating Element Upper Housing 65321718. ↑
Which control boxes fit Ecoflam OILFLAM 200.1 AB TC?

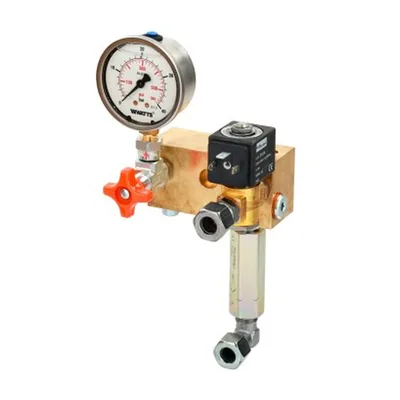

These fit Ecoflam OILFLAM 200.1 AB TC: Ecoflam Distribution Block 65322233. ↑
Which motors fit Ecoflam OILFLAM 200.1 AB TC?
These fit Ecoflam OILFLAM 200.1 AB TC: Ecoflam Motor 65322820. ↑
Which oil filters, coils, tubes & hoses fit Ecoflam OILFLAM 200.1 AB TC?
These fit Ecoflam OILFLAM 200.1 AB TC: Ecoflam Liquid Fuel Hose 65323180. ↑
