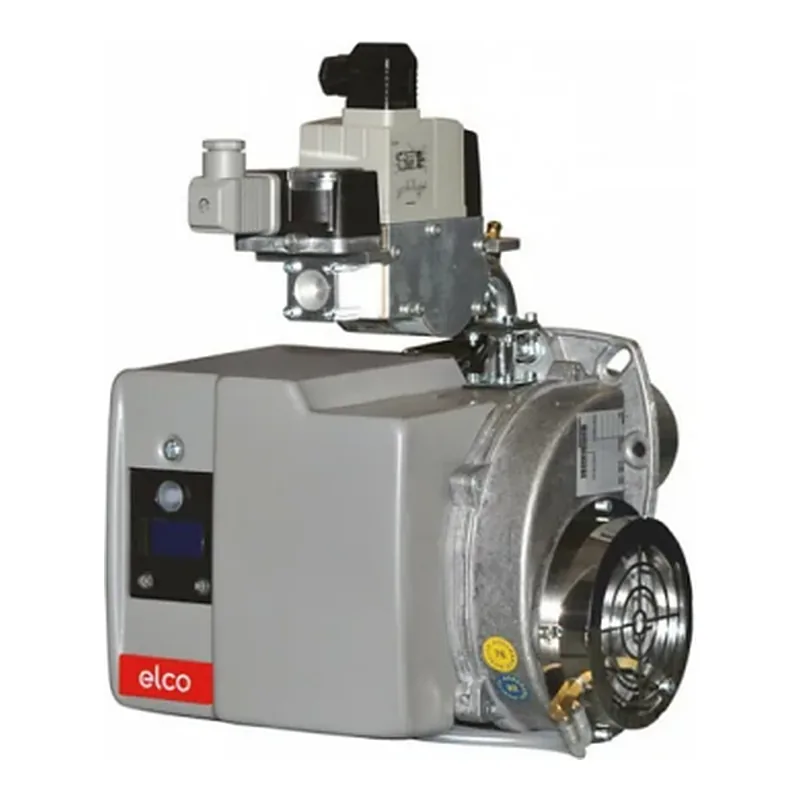

Elco CB-P 2.130 G-U/TCG KN — gas burner, photo 1

Elco CB-P 2.130 G-U/TCG KN — spare parts

Fuel
Gas
Output
40–120 kW
Parts
12
Factory code
3143489

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco CB-P 2.130 G-U/TCG KN · 6

Burner pipes, flanges & connections for Elco CB-P 2.130 G-U/TCG KN · 2

Ignition components for Elco CB-P 2.130 G-U/TCG KN · 1

Ignition transformers for Elco CB-P 2.130 G-U/TCG KN · 1

Motors for Elco CB-P 2.130 G-U/TCG KN · 1

Pressure switches for Elco CB-P 2.130 G-U/TCG KN · 1

Specifications

FuelGas
Output40–120 kW
Gas connectionRp 3/4"
Firing stagesSingle-stage
Fan motor power75 W
Supply voltage220 V
Net weight10 kg
Flame tube length120 mm
Flame tube diameter98 mm
Flame tube typeshort
Back pressure (combustion chamber)0–3.5 mbar
Gas consumption4.3–13 m³/h
Gas train pressure3.75–16 mbar
Overall dimensions32.9 x 30.6 x 20.9 cm
Delivery scopewith combustion head, with gas train

Questions about Elco CB-P 2.130 G-U/TCG KN parts

Which burner components fit Elco CB-P 2.130 G-U/TCG KN?

These fit Elco CB-P 2.130 G-U/TCG KN: Ecoflam Adjustment Rod 65320166; Ecoflam Air damper 65321213; Ecoflam Air damper 65324964; Ecoflam Air Intake Box 65325918; Elco Cover 65114184; Elco Guide Inlet Air 65327631. ↑

Which burner pipes, flanges & connections fit Elco CB-P 2.130 G-U/TCG KN?

These fit Elco CB-P 2.130 G-U/TCG KN: Ecoflam Gas Elbow 65321530; Ecoflam Nipple Set 65324718. ↑

Which ignition components fit Elco CB-P 2.130 G-U/TCG KN?

These fit Elco CB-P 2.130 G-U/TCG KN: Elco Igniter Transformer Bracket 65325922. ↑

Which ignition transformers fit Elco CB-P 2.130 G-U/TCG KN?

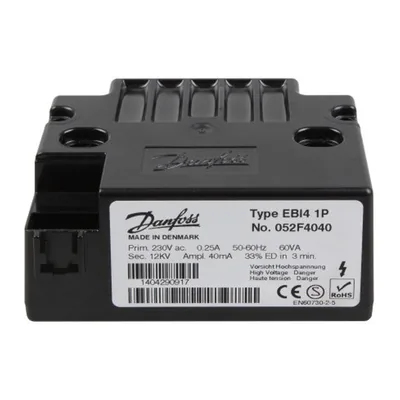

These fit Elco CB-P 2.130 G-U/TCG KN: Elco Ignition transformer 65311471. ↑

Which motors fit Elco CB-P 2.130 G-U/TCG KN?

These fit Elco CB-P 2.130 G-U/TCG KN: Elco Electric Motor 65325327. ↑

Which pressure switches fit Elco CB-P 2.130 G-U/TCG KN?

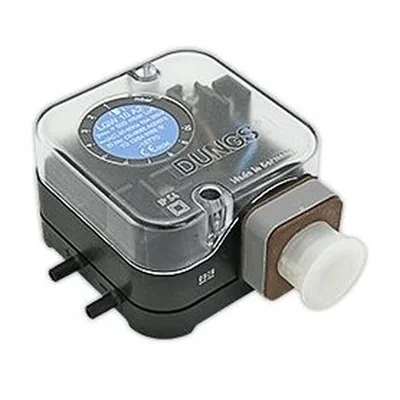

These fit Elco CB-P 2.130 G-U/TCG KN: Elco Pressure switch 13009652. ↑
