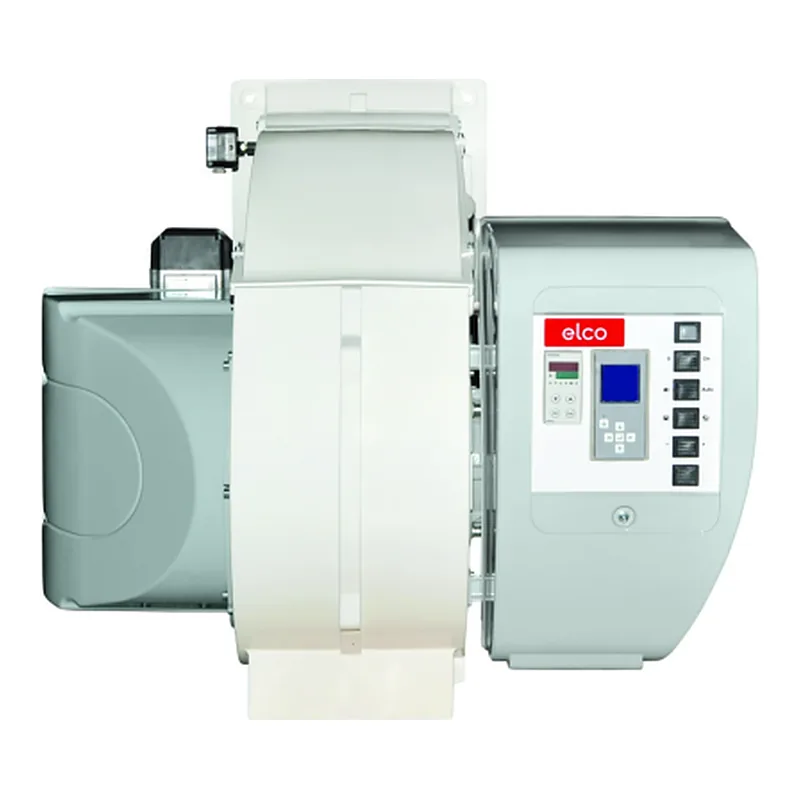

Elco EK-EVO 6.2400 GL-EZ3/BT3/KN — burner, photo 1

Elco EK-EVO 6.2400 GL-EZ3/BT3/KN — spare parts

Output
290–2550 kW
Parts
7
Factory code
3760186

Every part below fits this burner. Versions differ in valves and controls — check the factory code on the rating plate.

Show parts ↓ Sign in to save this burner

Parts that fit this burner

Burner components for Elco EK-EVO 6.2400 GL-EZ3/BT3/KN · 4

Actuators for Elco EK-EVO 6.2400 GL-EZ3/BT3/KN · 1

Ignition cables and connectors for Elco EK-EVO 6.2400 GL-EZ3/BT3/KN · 1

Oil valves for Elco EK-EVO 6.2400 GL-EZ3/BT3/KN · 1

Specifications

Output290–2550 kW
Gas connectionRp 1 1/4" / Rp 2"
Fan motor power3000 W
Supply voltage220 V
Power consumption5250 W
Net weight225 kg
Protection class (IP)IP41
Flame tube length330 mm
Flame tube diameter320 mm
Flame tube typeshort
Back pressure (combustion chamber)0–15 mbar
Gas consumption6.99–11.39 m³/h
Noise level75 dB
Operating temperature0–40 °C
Overall dimensions137.8 x 103.5 x 81.2 cm
Delivery scopewith combustion head, with gas train

Other versions of this seriesElco EK-EVO 6.2400 · 9

Parts often differ between versions of one series: pick the version named on your rating plate.

Questions about Elco EK-EVO 6.2400 GL-EZ3/BT3/KN parts

Which burner components fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN?

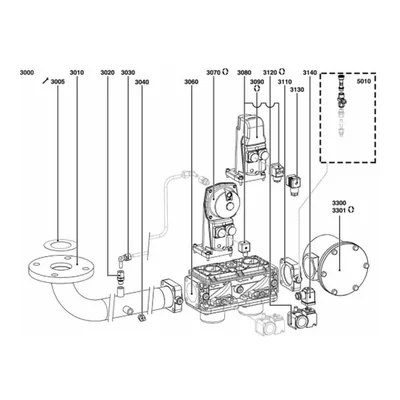

These fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN: Elco Gas Ramp 3750511; Elco Gas Manifold 3750525; Elco Gas Manifold 3750526; Elco Gas Ramp 3750527. ↑

Which actuators fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN?

These fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN: Elco Actuator 65314312. ↑

Which ignition cables and connectors fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN?

These fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN: Elco Ignition cable 65313731. ↑

Which oil valves fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN?

These fit Elco EK-EVO 6.2400 GL-EZ3/BT3/KN: Elco Liquid Fuel Solenoid Valve 13022401. ↑
